5650406-5

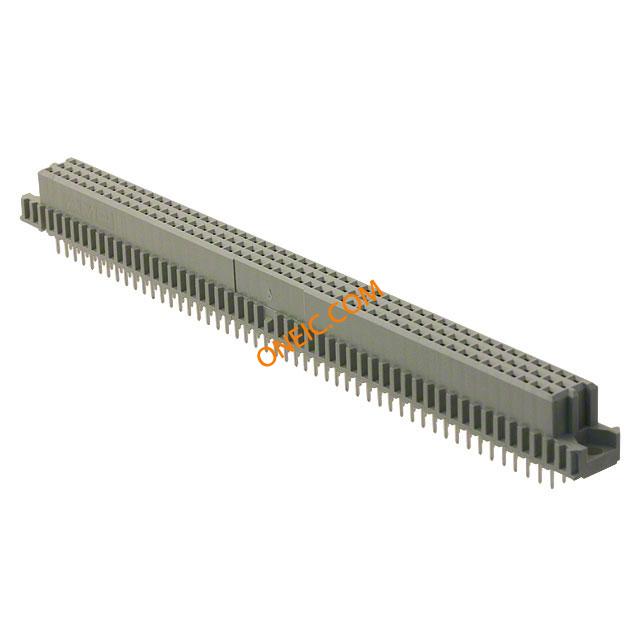

点击放大查看

5650406-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors DIN RECPT 150P VERT TYPE C Eurocard Type C Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 150Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSEMBLY,RECEPTACLE,EUROCARD,T
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装规格30产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5

机械参数

尺寸Expanded颜色Gray
间距2.54 mm高度11.5 mm [ .453 in ]
涂层Without包装方式Bulk
端接方式Solder触点尺寸0.30 x 0.61 [.012 x .024]
触头类型Solder Post安装类型Through Hole
连接器类型Receptacle, Female Sockets接触镀层Tin
安装样式不带排数3
端子样式.25 x .25 mm [ .01 x .01 in ]插入件材料铜合金
触头材料Copper Alloy壳体材料Polymer
安装特性With面板安装类型通孔 - 焊接
先合后断No端接样式插座
触点数150位数150
触头长度-柱4.57 mm [ .18 in ]绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径带有接触件表面处理 - 配合锡
端子柱长度4.57 [0.180]接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列5650406导向方式Without
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
