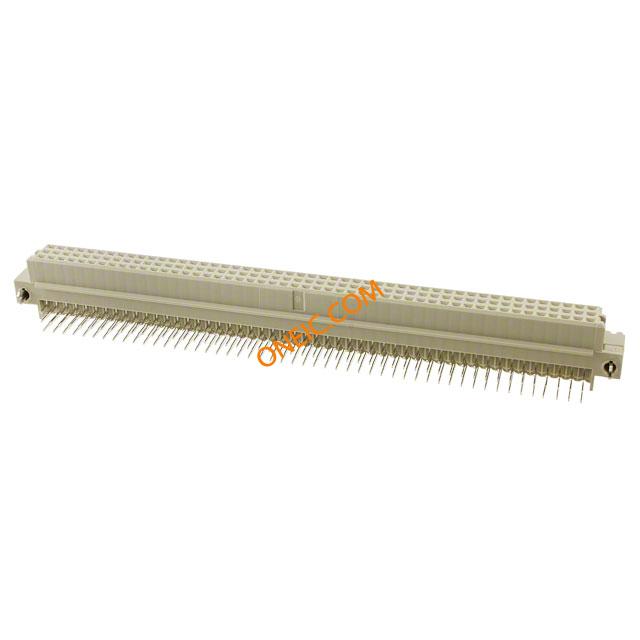

650959-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RCPT 150POS R/A SOLDER Standard Card Edge Connectors 150 EURO TYPE R RCPT BL ASSY Eurocard Type R Product Highlights:ReceptacleNumber of Positions = 150PCB Mount Angle = Right AngleYes PCB Retention FeatureBoardlock(s)Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE R RECEPT BL ASSY |
| 分类 |
商业参数
| 标准包装规格 | 28 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | ||
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 涂层 | Without | 包装方式 | Bulk |
| 屏蔽 | 否 | 端接方式 | Solder |
| 触头类型 | Solder Post | 安装类型 | Through Hole |
| 端子尺寸 | .3 x .61 mm [ .012 x .024 in ] | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 触点时序 | 否 |
| 安装样式 | 带有 | 排数 | 3 |
| 电路板厚度 | 1.57 [0.062] | 高度（英寸） | 17.58 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 安装特性 | 板锁 |
| 面板安装类型 | 通孔 - 焊接 | 尺寸/外形 | II |
| 先合后断 | No | 连接器间距 | 2.54 |
| 端接样式 | 插座 | 配接方向 | Without |
| 触点数 | 150 | 位数 | 150 |
| 绝缘材料 - 材质 | Polyester, Glass Filled | 安装孔直径 | 不带 |
| 端子柱长度 | 2.79 [0.110] | 接触镀层厚度 | 30 |
| 第一连接器安装特征 | 否 | ||
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | R | 产品特性 | Board Lock |
| 导向方式 | Without | 产品子类型 | Receptacle |
| 加载位置数 | All | ||
环境参数
| 级别、等级 | 2 | 工作温度 | -55°C ~ 125°C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
