650404-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 150 EURO TTR S/T ST ASSM Eurocard Type C CONN RECEPT VERT 150POS SOLDER Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 150Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TTR S/T, ST ASSY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | 供电电压 | 250 |
| 最大额定电流 | 1.5 | ||
机械参数
| 尺寸 | Expanded | 颜色 | Gray |
| 间距 | 2.54 mm | 涂层 | Without |
| 包装方式 | Bulk | 屏蔽 | 否 |
| 端接方式 | Solder | 触点尺寸 | 0.30 x 0.61 [.012 x .024] |
| 触头类型 | Solder Post | 安装类型 | Through Hole |
| 端子尺寸 | .3 x .61 mm [ .012 x .024 in ] | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 触点时序 | 否 |
| 安装样式 | 不带 | 排数 | 3 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 安装特性 | With |
| 面板安装类型 | 通孔 - 焊接 | 尺寸/外形 | II |
| 先合后断 | No | 端接样式 | 插座 |
| 触点数 | 150 | 位数 | 150 |
| 触头长度-柱 | 2.49 mm [ .097 in ] | 绝缘材料 - 材质 | Polyester, Glass Filled |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡铅 |
| 端子柱长度 | 2.49 [0.098] | 接触镀层厚度 | 2.54 – 5.08 µm [ 100 – 200 µin ] |
| 第一连接器安装特征 | 否 | ||
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | C | 连接器性别 | Receptacle |
| 导向方式 | 不带 | 产品子类型 | Type C Connectors |
| 连接类型 | Printed Circuit Board | 列数 | 50 |
| 工具类型/特性 | No | 加载位置数 | All |
环境参数
| 温度 | No | 级别、等级 | 2 |
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
650911-5
te connectivity / amp
Conn DIN 41612 PIN 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 150POS VERT PCB DIN 41612 Connectors EUROCARD VER PLG 150 1500 Eurocard Type R Product Highlights:PlugNumber of Positions = 150PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE R PIN ST ASSY
650915-5
te connectivity / amp
Conn DIN 41612 M 150 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 150POS RT ANG PCB DIN 41612 Connectors DIN PLUG 150P R/A TYPE C 150 EURO TYPE C PIN BL ASSY 150 EURO TYPE C PIN BL ASSY Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
650923-5
te connectivity / amp
Conn DIN 41612 PIN 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 150POS VERT PCB Eurocard Type R Product Highlights:PlugNumber of Positions = 150PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE R PIN AP ASSY

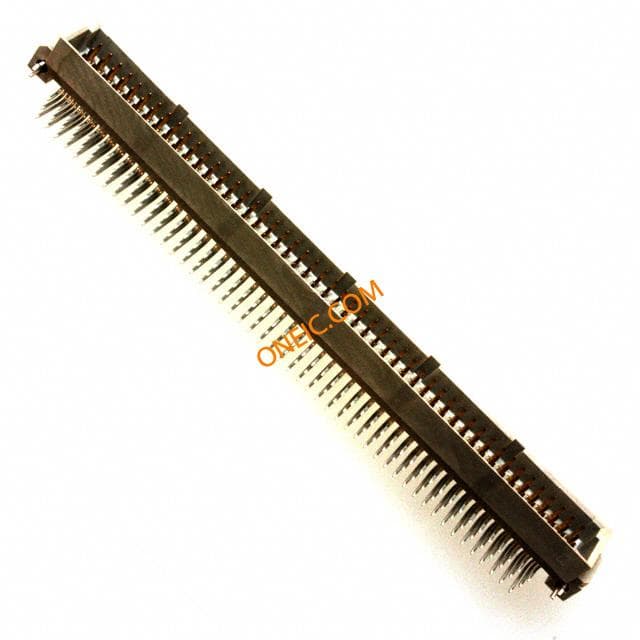

5650915-5
