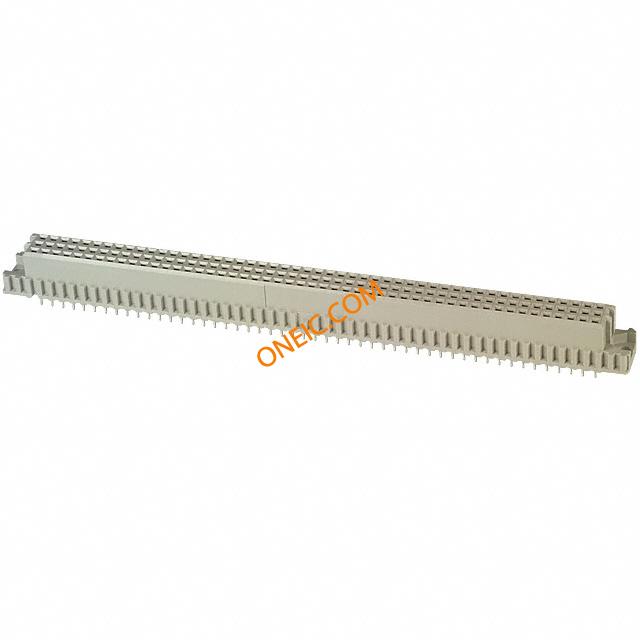

535080-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors 150P TYPE C DIN RECP Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:ConnectorReceptacleType = Type C150 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 |
| 分类 |
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 尺寸 | Expanded | 颜色 | Gray |
| 间距 | 2.54 mm | 涂层 | Without |
| 包装方式 | Bulk | 端接方式 | Press Fit |
| 触点尺寸 | 0.30 x 0.61 [.012 x .024] | 触头类型 | Compliant Post |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Palladium Nickel | 排数 | 3 |
| 电路板厚度 | 1.57 [0.062] | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 安装特性 | With |
| 先合后断 | No | 端接样式 | Solder Pin |
| 触点数 | 150 | 位数 | 150 |
| 绝缘材料 - 材质 | Polyester, Glass Filled | 端子柱长度 | 4.83 [0.190] |
产品信息
| 备注 | When installed using an SM-3 Machine a spacer of 1.050 [26.67] is needed to mak | 类型 | DIN 41612 |
| 等级 | II | 样式 | C |
| 连接器性别 | Receptacle | 系列 | 535080 |
| 产品子类型 | Type C Connectors | 连接类型 | Printed Circuit Board |
| 工具类型/特性 | Yes | 加载位置数 | All |
环境参数
| 温度 | No | 级别、等级 | 2 |
| 工作温度 | -55°C ~ 125°C | ||
