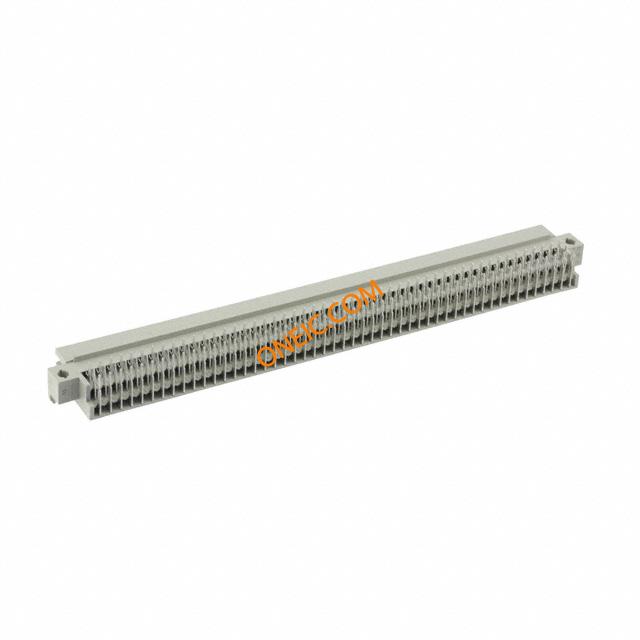

5148295-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors ASSY,RECEPTACLE,EURO CARD,TYPE R,LEAD-FRE Eurocard Type R CONN EURO RCPT 150POS R/A TYPE R Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECEPTACLE,EUROCARD,TYPE |
| 分类 |
商业参数
| 其他名称 | 51482955 | 标准包装数量 | Bulk |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 输入端 | .025 x .025 | 接口 | Eurocard/DIN 41612 |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Gray | 深度 | 18.54 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 10.49 mm |
| 涂层 | Without | 包装方式 | Bulk |
| 厚度 | 1.57 [0.062] | 端接方式 | Solder |
| 触头类型 | Compliant Post | 固定类型 | 否 |
| 引脚直径 | II | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 2 | 高度（英寸） | 10.49 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Polymer | 总长度 | 139.6 mm |
| 安装特性 | 作用/符合标准的尾 | 面板安装类型 | 直角 |
| 先合后断 | No | 端接样式 | Solder Tail |
| 配接方向 | Without | 触点数 | 150 |
| 接触件尾部长度 | 2.92 | 位数 | 150 |
| 绝缘材料 - 材质 | Polymer Thermoplastic, Glass Filled | 安装孔直径 | 不带 |
| 端子柱长度 | 2.92 [0.115] | ||
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | R | 连接器性别 | RCP |
| 导向方式 | Without | 产品子类型 | Receptacles |
| 加载位置数 | All | ||
环境参数
| 级别、等级 | 2 | 工作温度 | -55°C ~ 125°C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
