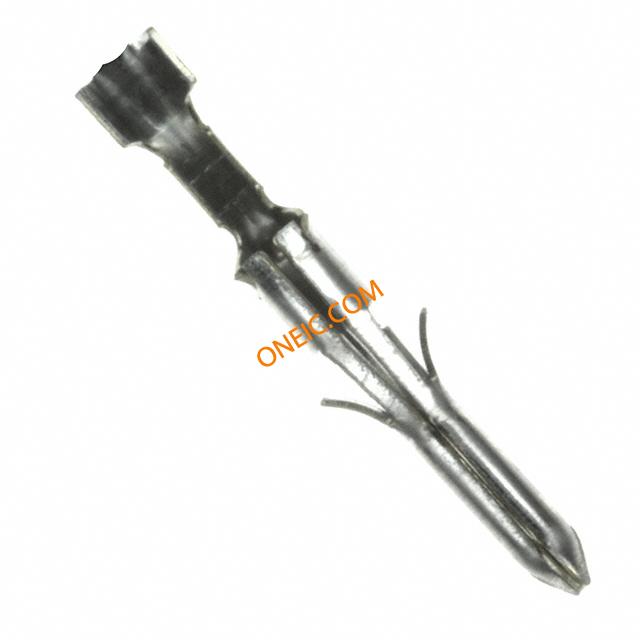

640391-1

点击放大查看

640391-1

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Reel CONN PIN 24-30AWG TIN CRIMP Pin & Socket Connectors PIN 30-24 AWG TIN Contact PIN Crimp ST Cable Mount Reel Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = PinSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S PIN 24-30 PTPBR
分类
连接器解决方案接触件接触件（通用）

商业参数

其他名称A14016CT产品类别Pin & Socket Connectors
标准包装数量Tape & Reel工厂包装数量10000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR 7189
标准编号CSA, UL认证机构标志否

电气参数

额定电压250 V供电电压250
最大额定电流7 A连接器类型 - 电压输入成形插针

机械参数

间距3.96 mm镀层预镀锡
包装方式Tape & Reel (TR)电缆类型分离式导线
导线线规24-30 AWG端接方式Crimp
触头类型Signal插针或插孔Pin
连接器类型Connector Headers and PCB Receptacles接触镀层Pre-Tin
插入件材料黄铜触头材料Brass
包装数量10000端接样式Crimp
第一触头极性Pin (Male)适用端子尺寸No
触点数8接触件端接Crimp
绝缘直径1.52 mm [ .06 in ]接触件表面处理 - 配合预镀锡
法兰上方插针尺寸1.57 mm [ .062 in ]接触镀层厚度2 µm [ 80 µin ]

产品信息

连接器性别PIN系列AMP-O-LECTRIC
产品子类型Receptacle Housings应用细节Power

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]

相关型号

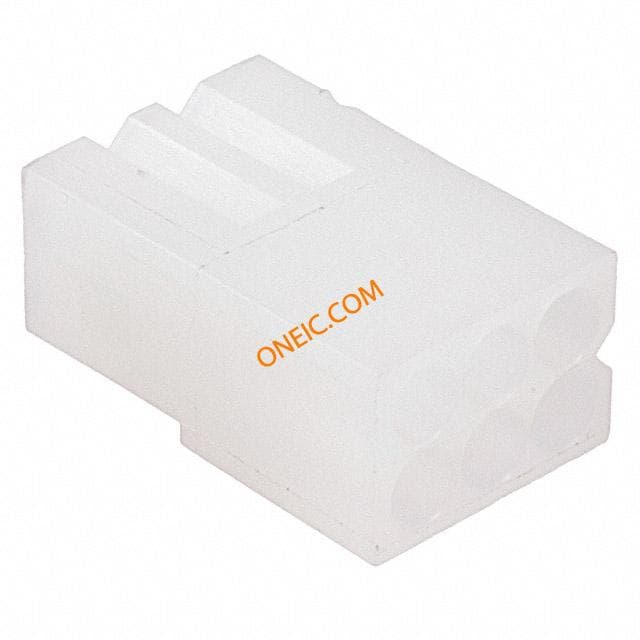

770356-1

770356-1

te connectivity / amp

Conn Housing F 6 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 6POS .062 .062 Pin + Socket housing Receptacle 6P Pin & Socket Connectors 6 CIR. MATRIX RECPT Conn Housing F 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET CONN, RCPT, 6POS, 3.68MM .062Soft-ShellPin&Socket,Receptacle,FreeHanging,Matrix,6circuit 06P .062 COMM P&S RECPT

¥0.9720
详情

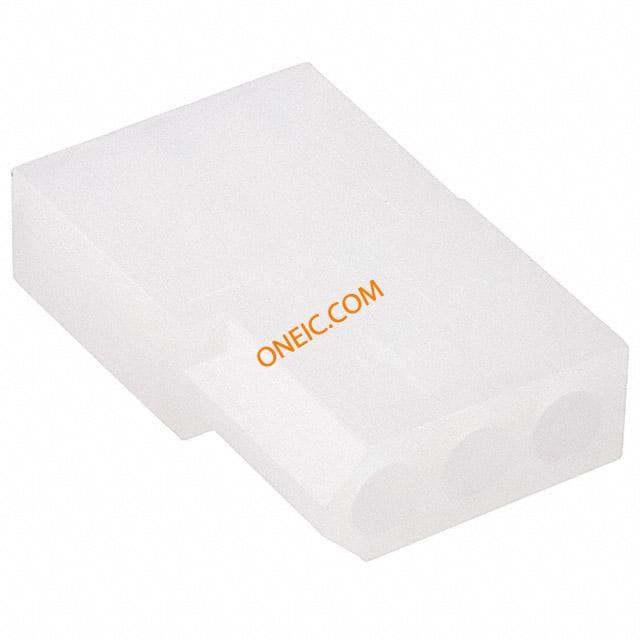

770333-1

770333-1

te connectivity / amp

Conn Housing RCP 3 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 3POS .062 .062 Pin + Socket housing Receptacle 3P Pin & Socket Connectors 3 CIR. IN-LINE RECPT Conn Housing RCP 3 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 3Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG AND SOCKET CONNECTOR HOUSING Connector,Shell;250VAC;7A(Max.);3;Receptacle;Nylon;Natural;0.062in. 03P .062 COMM P&S RECPT

¥0.6768
详情

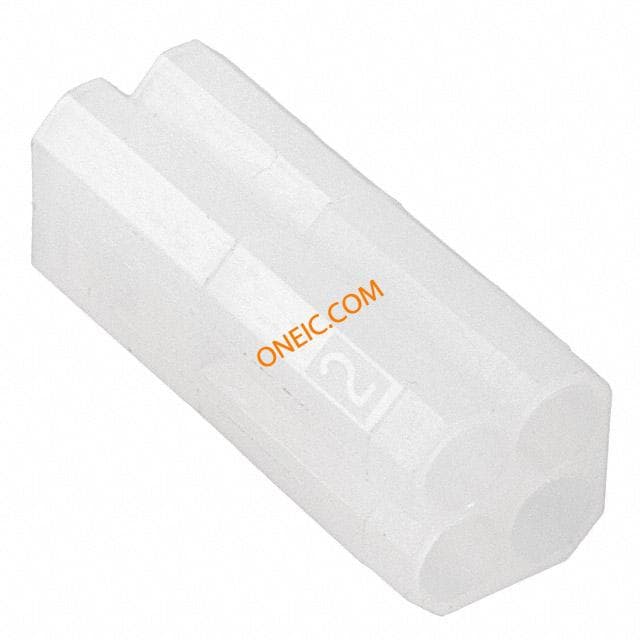

770432-1

770432-1

te connectivity / amp

.062ZZZ COMMERCIAL PIN & SOCKET CONNECTOR .062" Commercial Pin & Socket Connector CONN RCPT 4POS .062 Pin & Socket Connectors 04P 0.062 COMM P&S RCPT .062" Commercial Pin & Socket Connector Product Highlights:ConnectorCommercial Pin and SocketRow-to-Row Spacing = 3.68 mmMatrix Contact Layout3.68 mm CenterlineSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 04P .062 COMM P&S RECPT

¥2.0930
详情
770275-1

770275-1

te connectivity / amp

Conn Housing PL 4 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 4POS .062 TE Connectivity 3.68mm 4 Way 1 Row Straight Housing Free Hanging Pin & Socket Connectors 4 CIR. IN-LINE PLUG Conn Housing PL 4 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 4Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Connector,SoftShell;250VAC;7A(Max.);Plug;Nylon;Natural;4;0.062in. TE Connectivity .062 Commercial 系列 3.68mm 节距 4 路 直 公 电缆安装 压接连接器外壳 04P .062 COMM P&S PLUG

¥1.8432
详情
暂无图片

770340-3

te connectivity / amp

02P .062 COMM P&S PLUG BLACK CONN PLUG 2POS .062 BLACK Pin & Socket Connectors 02P 0.062 COMM P&S PLUG BLACK

¥0.7848
详情

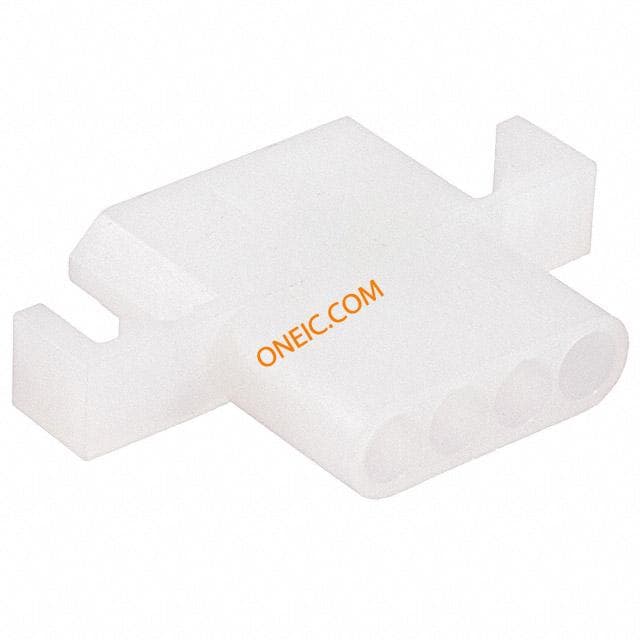

770335-1

770335-1

te connectivity / amp

Conn Housing RCP 4 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 4POS .062 Pin & Socket Connectors 4P RECEPTACLE Conn Housing RCP 4 POS 3.68mm ST Individual Product Highlights:ConnectorCommercial Pin and SocketIn-Line Contact Layout3.68 mm CenterlineHousing Gender = ReceptacleSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 04P .062 COMM P&S RECPT

¥1.6920
详情

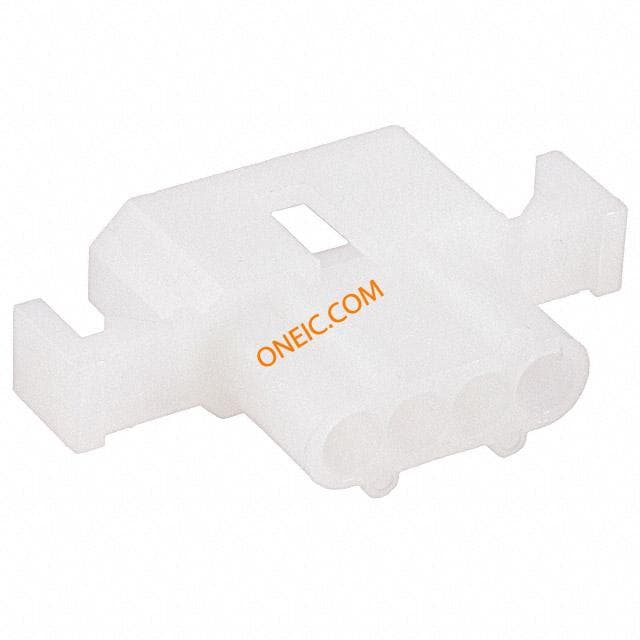

770334-1

770334-1

te connectivity / amp

Conn Housing PL 4 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 4POS .062 Pin & Socket Connectors 4P .062 COMM P&S PLG Conn Housing PL 4 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 4Mount = Panel MountOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 04P .062 COMM P&S PLUG

¥2.4768
详情

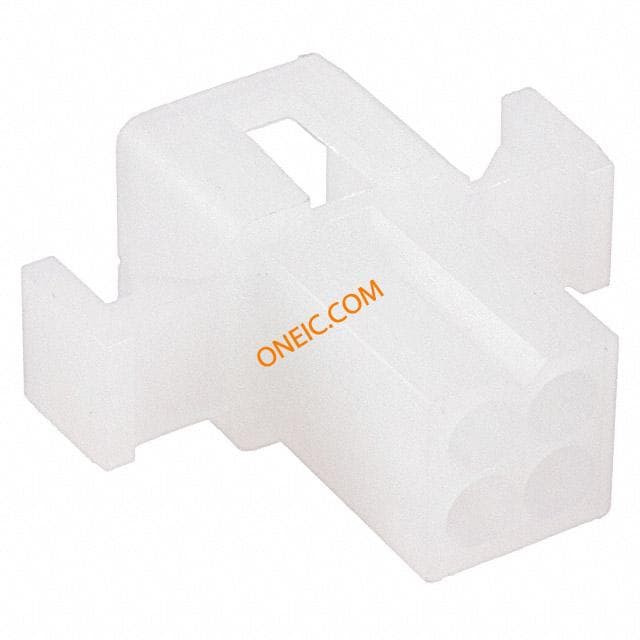

770443-1

770443-1

te connectivity / amp

Conn Housing PL 4 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 4POS .062 Pin & Socket Connectors 4P .062 COMM P&S PLG Conn Housing PL 4 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 4Mount = Panel MountOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 04P .062 COMM P&S PLUG

¥3.6720
详情

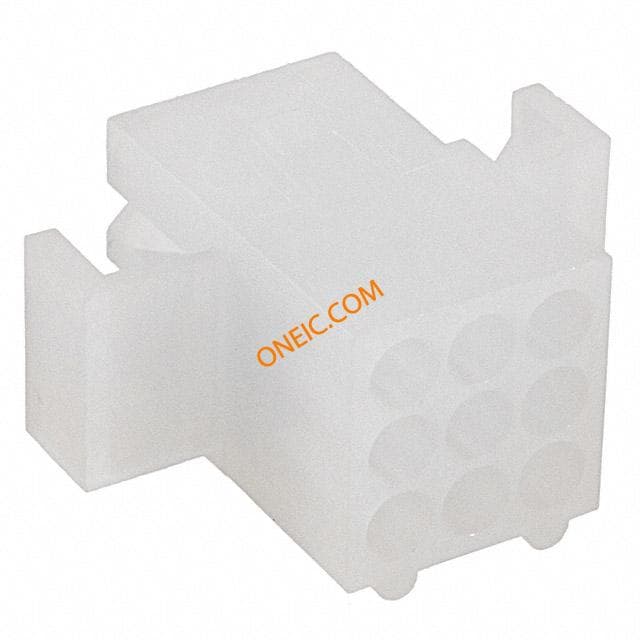

770427-1

770427-1

te connectivity / amp

Conn Housing F 9 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 9POS .062 Pin & Socket Connectors 9P .062 COMM RECEP Conn Housing F 9 POS 3.68mm ST Individual Product Highlights:HousingCommercial Pin and SocketRow-to-Row Spacing = 3.68 mmMatrix Contact Layout3.68 mm CenterlineSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 09P .062 COMM P&S RECPT

¥1.0368
详情

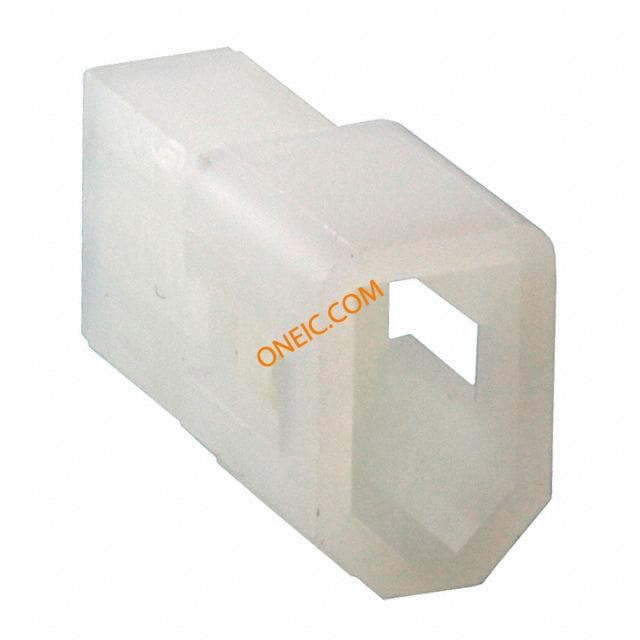

770340-1

770340-1

te connectivity / amp

Conn Housing PL 2 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 2POS .062 Housing FH Plug 2 way CPS 1.57mm Pin & Socket Connectors 2 CIR. IN-LINE PLUG Conn Housing PL 2 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 2Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;250VAC;7A(Max.);Plug;Nylon;Natural;2;0.062in. 02P .062 COMM P&S PLUG

¥0.9216
详情
770442-1

770442-1

te connectivity / amp

Conn Housing RCP 4 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 4POS .062 .062 Pin + Socket Receptacle dual row 4P Pin & Socket Connectors 4 CIR. MATRIX RECPT Conn Housing RCP 4 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 4Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG AND SOCKET CONNECTOR HOUSING Connector,Shell;250VAC;7A(Max.);4;Receptacle;Nylon;Natural;0.062in. 04P .062 COMM P&S RECPT

¥1.1232
详情

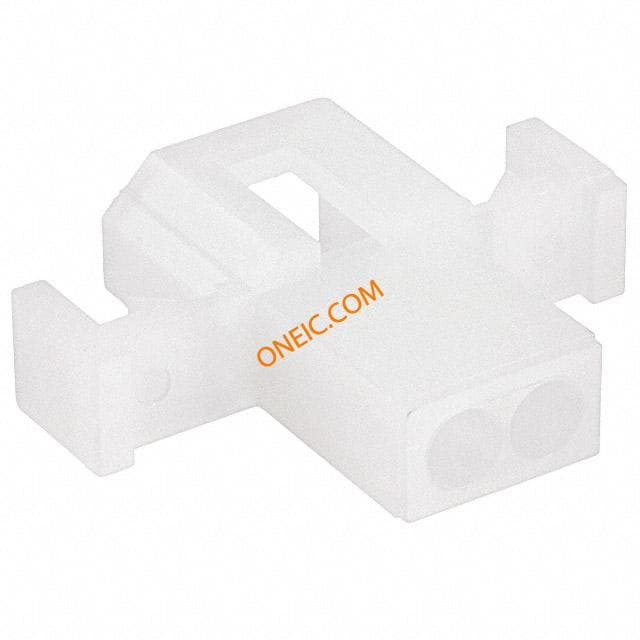

770341-1

770341-1

te connectivity / amp

Conn Housing PL 2 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 2POS .062 Pin & Socket Connectors 2 POS IN LINE PLUG Conn Housing PL 2 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 2Mount = Panel MountOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 02P .062 COMM P&S PLUG

¥1.0656
详情
770274-1

770274-1

te connectivity / amp

Conn Housing RCP 4 POS 3.68mm ST Individual Pin & Socket Connectors 4 CIR. IN-LINE RECPT .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 4POS .062 .062 Pin + Socket housing Receptacle 4P Conn Housing RCP 4 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 4Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET CONN, RCPT, 4POS, 3.68MM Connector,Shell;250VAC;7A(Max.);4;Receptacle;Nylon;Natural;0.062in. 04P .062 COMM P&S RECPT

¥1.8288
详情
318831-1

318831-1

te connectivity / amp

EXTRACTION TOOL ASSY Hand Tools CONTACT EXTRACT TOOL Extraction Tool Assembly Extraction Tool For Removing Socket Contacts From Connector Housings EXTRACTIONTOOLASSY;.062CommercialContacts

¥1358.8560
详情

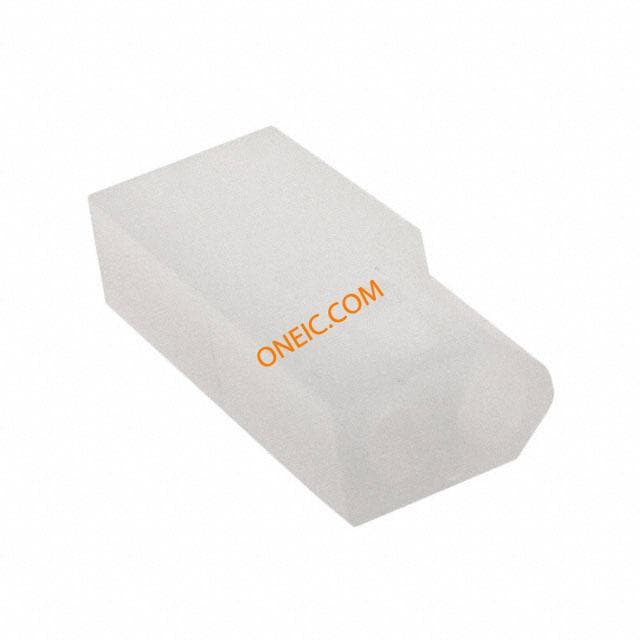

770419-1
