点击放大查看

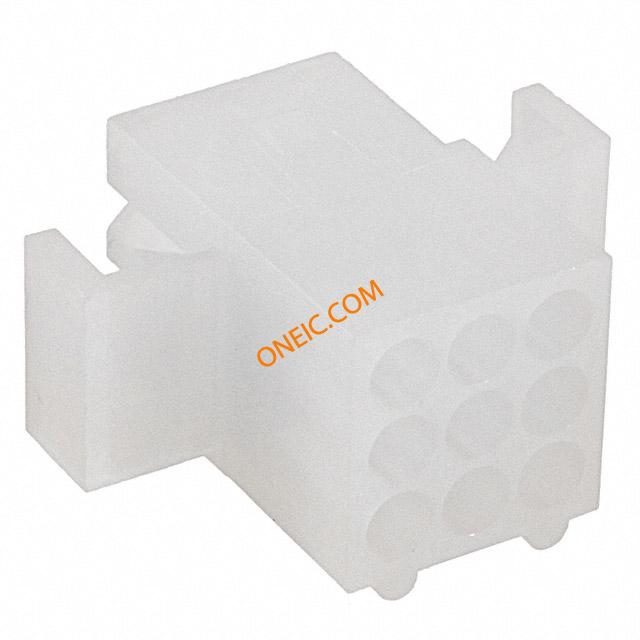

770427-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing F 9 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 9POS .062 Pin & Socket Connectors 9P .062 COMM RECEP Conn Housing F 9 POS 3.68mm ST Individual Product Highlights:HousingCommercial Pin and SocketRow-to-Row Spacing = 3.68 mmMatrix Contact Layout3.68 mm CenterlineSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 09P .062 COMM P&S RECPT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| UL电压 | 250 | 额定电压 | 250 V |
| 供电电压 | 250 | 连接器类型 - 电压输入 | Commercial Pin and Socket |
机械参数
| 颜色 | Natural | 间距 | 3.68 mm |
| 宽度 | 12.45 mm [ .4901 in ] | 高度 | 12.57 mm [ .495 in ] |
| 长度 | 20.07 mm [ .79 in ] | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 壳体颜色 | 自然 |
| 电缆类型 | 分离式导线 | 导线线规 | 18-30 AWG |
| 排间距 | 0.145" (3.68mm) | 触头类型 | Male or Female |
| 柱间距 | 3.68 x 3.68 [.145 x .145] | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 3 |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 面板安装类型 | 带有 | 尺寸/外形 | .2 – .9 mm², 30 – 18 美国线规, 394.71 – 1776.17 CMA |
| 端接样式 | 插针或插座 | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 9 | 接触件端接 | Crimp |
| 绝缘材料 - 类型 | 1.27 – 2.79 mm [ .05 – .11 in ] | 位数 | 9 |

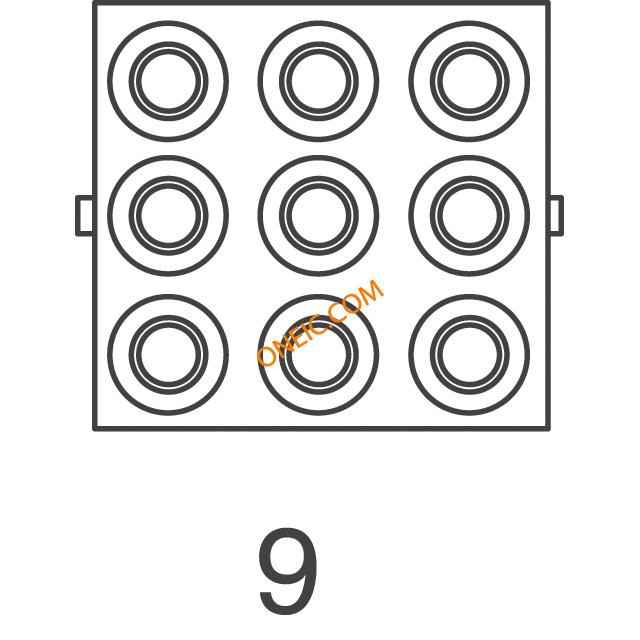

| 触头长度-柱 | Power, Signal (Data) | 典型触点布局 | Matrix |
| 接触镀层厚度 | 1.57 [0.062] | ||
产品信息
| 备注 | See AMP Guide 65422 for cross references to Industry Standard .062/.093 product | 类型 | Housing |
| 连接器性别 | F | 系列 | 1500 |
| 可密封 | 否 | 产品子类型 | Housing |
| 电路数 | 9 | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
文档与媒体
相关型号
770273-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors 0.062 COMM P&S .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062" Commercial Pin & Socket Connector Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,
794016-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG TIN CRIMP Contact female crimp 24-18AWG CPS Pin & Socket Connectors SCKT CONTACT 24-18 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmPackaging Method = Loose PieceSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT, CRIMP, SOCKET, 24-18AWG .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for24-18AWG TE Connectivity Commercial .062 系列 母 压接接线端子, 压接, 镀锡镀镍触点 .062 CP&S SOK PTPBR L/P 24-18
794019-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062 Pin + Socket Socket Contact24-30AWG Pin & Socket Connectors SCKT CONTACT 30-24 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for30-24AWG 1 Position Wire-to-Wire Crimp Straight Cable Mount Receptacle Connector .062 CP&S SOK PTPBR L/P 30-24
350628-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG TIN CRIMP Commercial contact,socket,0.20-0.80mm2 Pin & Socket Connectors UMNL SPLIT PIN Reel of 6500 Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,SOFTSHELL0.062,18-24AWG TE Connectivity Commercial .062 系列 母 压接接线端子, 压接, 镀锡触点 .062 COMM P&S SOK 18-24 PTPBR
794017-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG TIN CRIMP Contact male crimp 24-18AWG CPS Pin & Socket Connectors PIN CONTACT 24-18 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmLoose PiecePinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Pin,for24-18AWG Commercial 18-24 AWG Discrete Wire to Wire Strain Relief Pin Socket Contact TE Connectivity Commercial .062 系列 公 压接接线端子, 压接, 镀锡镀镍触点 .062 CP&S PIN PTPBR L/P 24-18

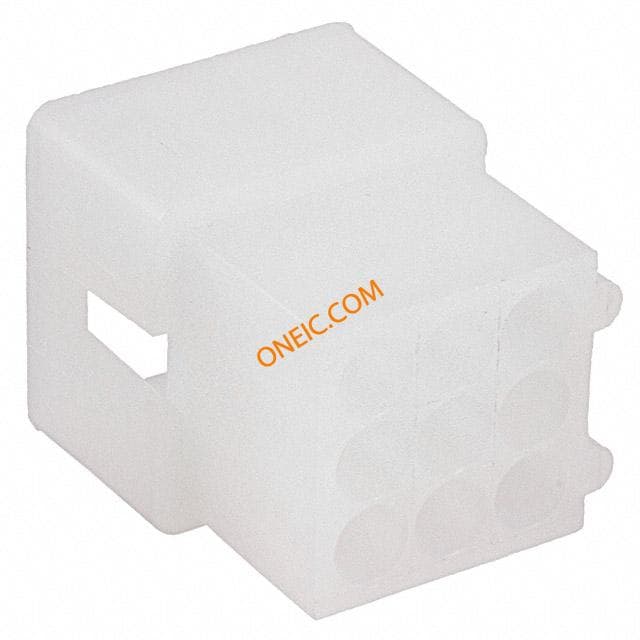

770428-1
