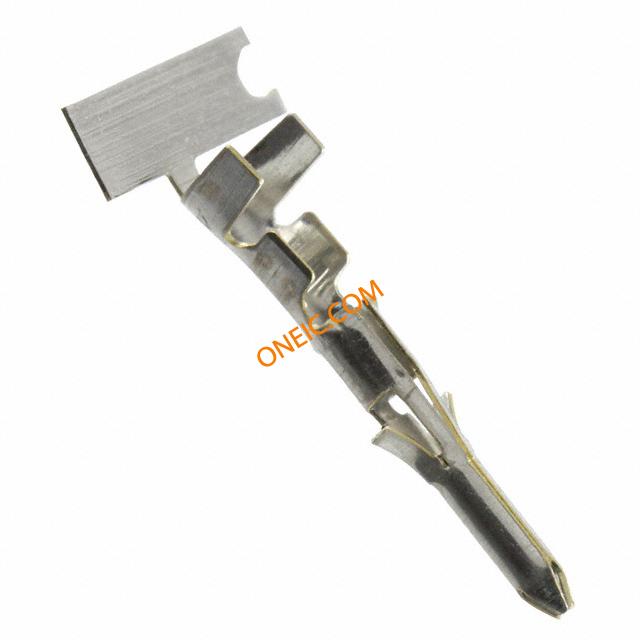

350629-1

点击放大查看

350629-1

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Strip .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG .062 TIN Contact male crimp 24-18AWG CPS Pin & Socket Connectors SPLIT PIN 24-18 REEL Reel of 6000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 1.57 mmStripPinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP CONTACT,PIN,SOFTSHELL0.062,18-24AWG TE Connectivity Commercial .062 系列 公 压接接线端子, 压接, 镀锡触点 .062 COMM P&S PIN 18-24 PTPBR
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称A100569CT产品类别Pin & Socket Connectors
标准包装数量Cut Tape, Tape & Reel工厂包装数量6000

合规参数

RoHSLead free / RoHS Compliant海关税号85366910

电气参数

额定电压250 VAC最大额定电流7 A
最小供电电压250VAC

机械参数

深度3.68 mm间距Not Required mm
高度3.68 mm重量0.002
包装方式Tape & Reel (TR)导线线规18-24 AWG
端接方式Crimp触头类型Power
安装类型Straight插针或插孔Pin
连接器类型Connector Power接触镀层Gold Over Nickel
安装样式Cable触头材料Phosphor Bronze
壳体材料Not Required主要材料Contact
端接样式Crimp第一触头极性Pin (Male)
触点数1 POS接触件端接Crimp
绝缘直径0.050—0.110(1.27—2.79)In.(mm)线规或范围 - AWG24-18

产品信息

类型Contact连接器性别PIN
系列350629产品特性Reeled
制造商全称AMP0.062产品子类型Contacts
端口数1 Port适用产品/相关产品:.062" Commercial Pin & Socket Connectors

环境参数

工作温度+105°C结工作温度105C

文档与媒体

PDF 文档
1444132.pdf
在线文档
350629-1?RQPN=350629-1
