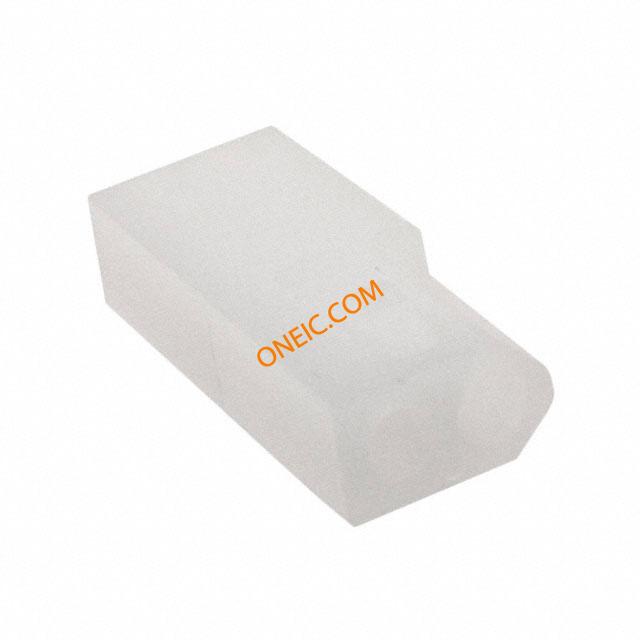

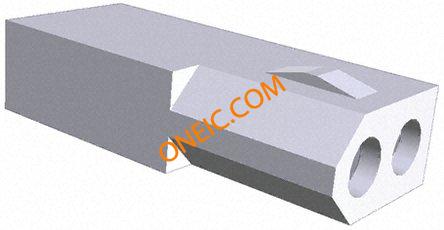

770419-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT POSI-LOC 2POS .062 Commercial contact,pin,0.20-0.80mm2 Pin & Socket Connectors 2P .062 COMM RECEP Conn Housing RCP 2 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 2Mount = Free HangingPackaging Method = One Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Commercialcontact,pin,0.20-0.80mm2 TE Connectivity .062 Commercial 系列 3.68mm 节距 2 路 直 母 压接连接器外壳 02P .062 COMM P&S RECPT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 连接器类型 - 电压输入 | Commercial Pin and Socket | ||
机械参数
| 颜色 | Natural | 深度 | 20.57mm |
| 间距 | 3.68 mm | 宽度 | 8.64 mm [ .34 in ] |
| 高度 | 5.05 mm [ .2 in ] | 长度 | 10.16mm |
| 密封型 | Not Sealed | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 电缆类型 | 分离式导线 |
| 导线线规 | 18-30 AWG | 方向 | 直 |
| 触头类型 | Male or Female | 柱间距 | 3.68 [.145] |
| 安装类型 | Straight | 电缆直径 | 394.71 – 1776.17 |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 主要材料 | Connector | 第一触头极性 | Pin (Male), Socket (Female) |
| 配接方向 | CenterLine | 触点数 | 2 |
| 接触件端接 | Crimp | 绝缘直径 | 1.27 – 2.79 mm [ .05 – .11 in ] |
| 位数 | 2 | 典型触点布局 | In-Line |
| 接触镀层厚度 | 1.57 [0.062] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | .062 Commercial |
| 产品子类型 | Housing | 电路数 | 2 |
| 应用细节 | Power, Signal | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
