点击放大查看

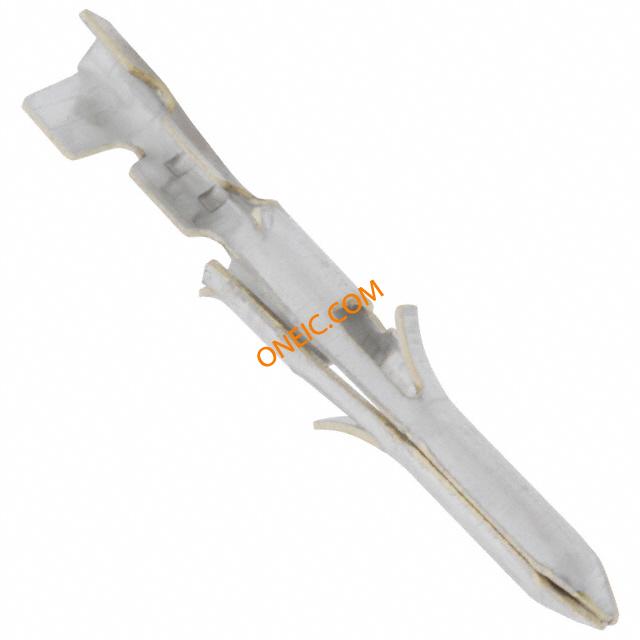

794018-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 24-30AWG TIN CRIMP .062 Pin + Socket Pin Contact 24-30AWG Pin & Socket Connectors PIN CONTACT 30-24 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmLoose PiecePinWire Range = 0.05-0.24² [30-24] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 30-24AWG, CRIMP .062Soft-ShellPin&Socket,Contacts(PreTinnedBrass),Pin,for30-24AWG .062 CP&S PIN PTPBR L/P 30-24 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2.67 mm | 间距 | Not Required mm |
| 高度 | 1.93 mm | 重量 | 0.127 |
| 包装方式 | Bulk | 导线线规 | 24-30 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 16.89 mm | 主要材料 | Contact |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 0.060In. | 线规或范围 - AWG | 30-24 |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | AMP 0.062 | 制造商全称 | AMP0.062 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :.062" Commercial Pin & Socket Connectors |
