点击放大查看

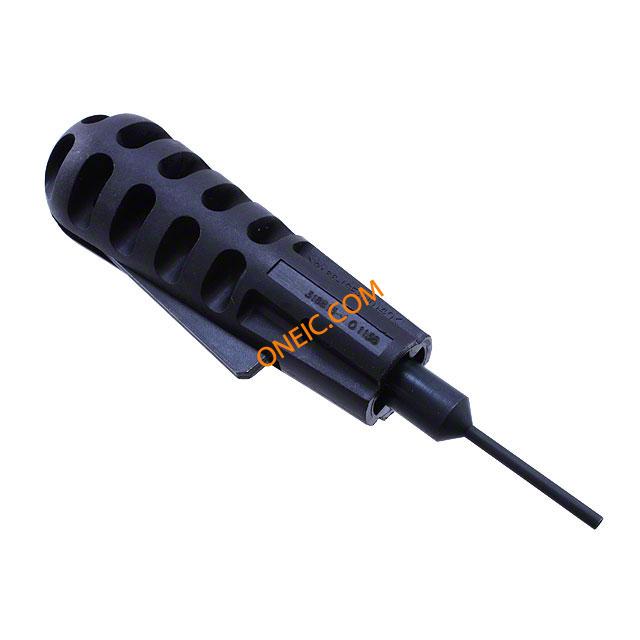

318831-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | EXTRACTION TOOL ASSY Hand Tools CONTACT EXTRACT TOOL Extraction Tool Assembly Extraction Tool For Removing Socket Contacts From Connector Housings EXTRACTIONTOOLASSY;.062CommercialContacts |
| 分类 |
商业参数
| 产品 | Extraction Tools | 交货时间 | 42 Days |
| 子类别 | Hardware Tools | 产品类别 | Hand Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | ||
机械参数
| 包装方式 | Bulk | ||
产品信息
| 类型 | Extraction Tools | 功能 | Extracts pin and socket contacts from connector housings |
| 工具类型 | Extraction Tool | 适用产品/相关产品 | AMP 0.062 commerical pin and socket contacts |
文档与媒体
相关型号
770333-1
te connectivity / amp
Conn Housing RCP 3 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 3POS .062 .062 Pin + Socket housing Receptacle 3P Pin & Socket Connectors 3 CIR. IN-LINE RECPT Conn Housing RCP 3 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 3Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG AND SOCKET CONNECTOR HOUSING Connector,Shell;250VAC;7A(Max.);3;Receptacle;Nylon;Natural;0.062in. 03P .062 COMM P&S RECPT
770275-1
te connectivity / amp
Conn Housing PL 4 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 4POS .062 TE Connectivity 3.68mm 4 Way 1 Row Straight Housing Free Hanging Pin & Socket Connectors 4 CIR. IN-LINE PLUG Conn Housing PL 4 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 4Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Connector,SoftShell;250VAC;7A(Max.);Plug;Nylon;Natural;4;0.062in. TE Connectivity .062 Commercial 系列 3.68mm 节距 4 路 直 公 电缆安装 压接连接器外壳 04P .062 COMM P&S PLUG
770342-1
te connectivity / amp
Conn Housing RCP 2 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 2POS .062 Housing FH Receptacle 2 way CPS 1.57mm Pin & Socket Connectors 2 CIR. IN-LINE RECPT PLUG AND SOCKET CONNECTOR HOUSING Connector,Shell;250VAC;7A(Max.);2;Receptacle;Nylon;Natural;0.062in. 02P .062 COMM P&S RECPT

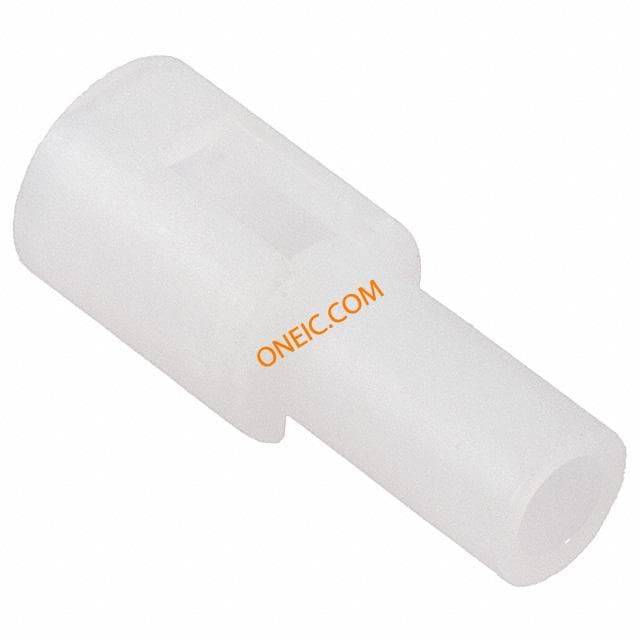

770278-1
