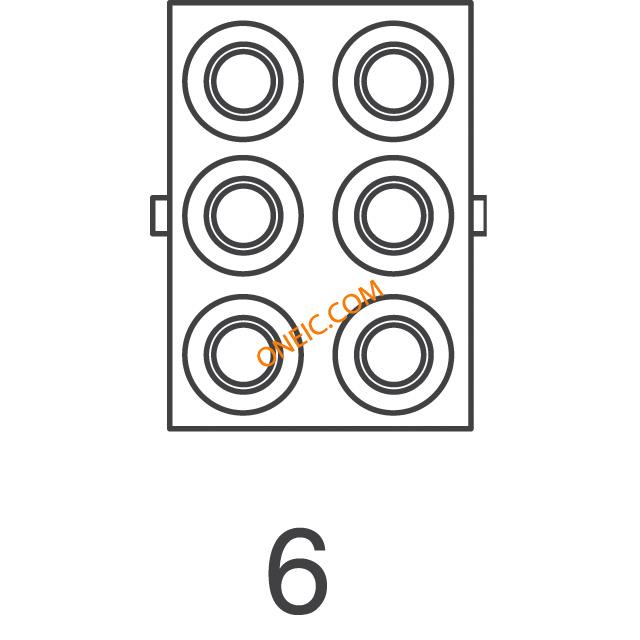

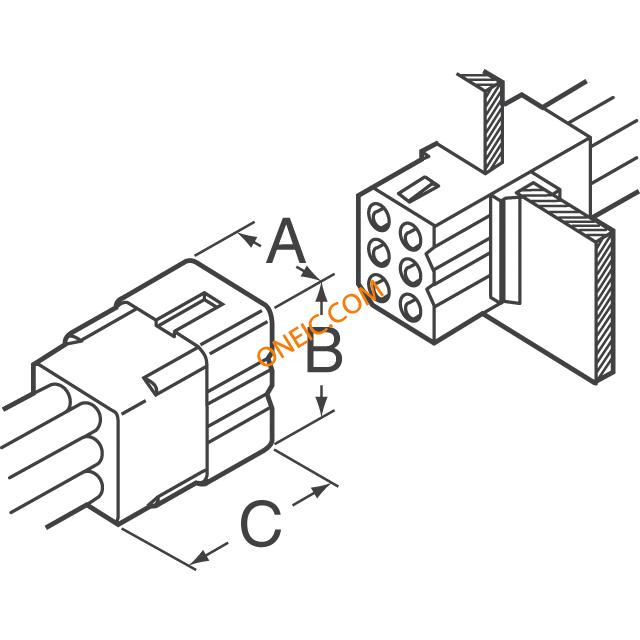

770356-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing F 6 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 6POS .062 .062 Pin + Socket housing Receptacle 6P Pin & Socket Connectors 6 CIR. MATRIX RECPT Conn Housing F 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET CONN, RCPT, 6POS, 3.68MM .062Soft-ShellPin&Socket,Receptacle,FreeHanging,Matrix,6circuit 06P .062 COMM P&S RECPT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 7 A | 连接器类型 - 电压输入 | Commercial Pin and Socket |
机械参数
| 颜色 | Natural | 间距 | 3.68 mm |
| 长度 | 0.785in | 重量 | 0.002 |
| 锁定类型 | Detent Lock | 包装方式 | Bulk |
| 导线线规 | 18-30 AWG | 排间距 | 0.145" (3.68mm) |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 3 | 壳体材料 | Nylon |
| 总长度 | 0.785" | 包装数量 | One Piece Housing |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.145" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 中心触点材料 | 3.68 x 3.68 [.145 x .145] |
| 典型触点布局 | Matrix | 接触镀层厚度 | 1.57 [0.062] |
| 线规或范围 - AWG | 30-18 | 第一连接器安装类型 | :Free Hanging |
产品信息
| 备注 | See AMP Guide 65422 for cross references to Industry Standard .062/.093 product | 类型 | Housing |
| 连接器性别 | F | 系列 | Soft Shell |
| 产品特性 | FreeHanging | 制造商全称 | SoftShell |
| 产品子类型 | Housing | 电路数 | 6 |
| 适用产品/相关产品 | :Soft Shell Connectors | ||
相关型号
770273-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors 0.062 COMM P&S .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062" Commercial Pin & Socket Connector Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,

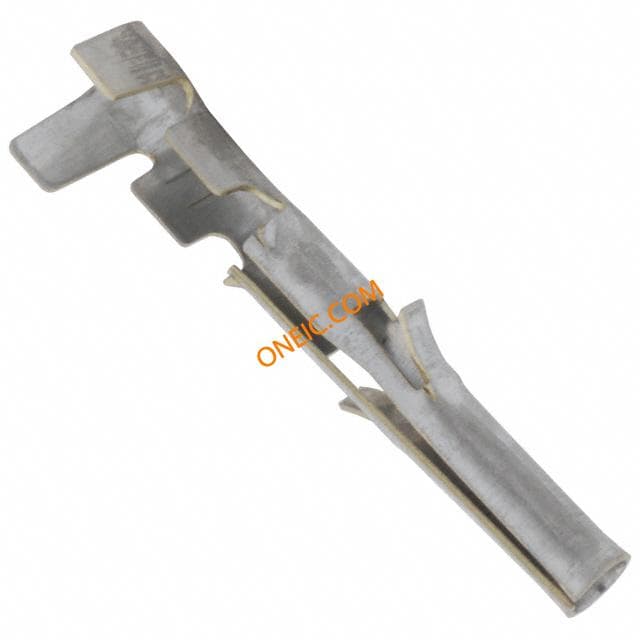

794016-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG TIN CRIMP Contact female crimp 24-18AWG CPS Pin & Socket Connectors SCKT CONTACT 24-18 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmPackaging Method = Loose PieceSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT, CRIMP, SOCKET, 24-18AWG .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for24-18AWG TE Connectivity Commercial .062 系列 母 压接接线端子, 压接, 镀锡镀镍触点 .062 CP&S SOK PTPBR L/P 24-18

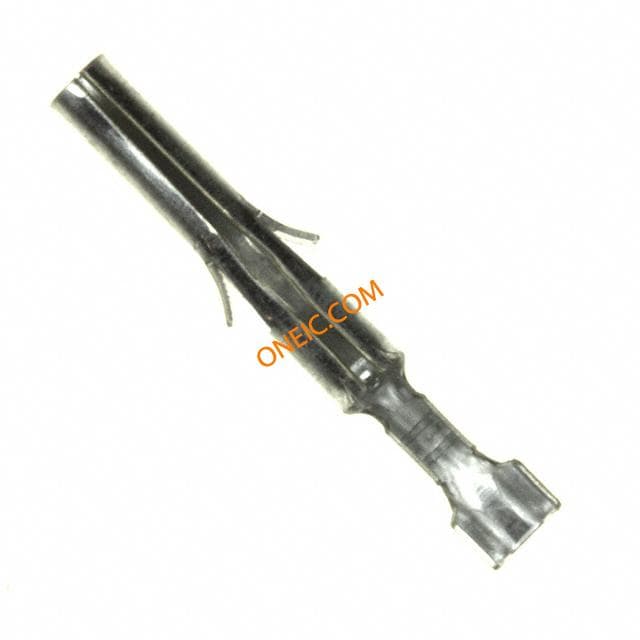

794019-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062 Pin + Socket Socket Contact24-30AWG Pin & Socket Connectors SCKT CONTACT 30-24 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for30-24AWG 1 Position Wire-to-Wire Crimp Straight Cable Mount Receptacle Connector .062 CP&S SOK PTPBR L/P 30-24

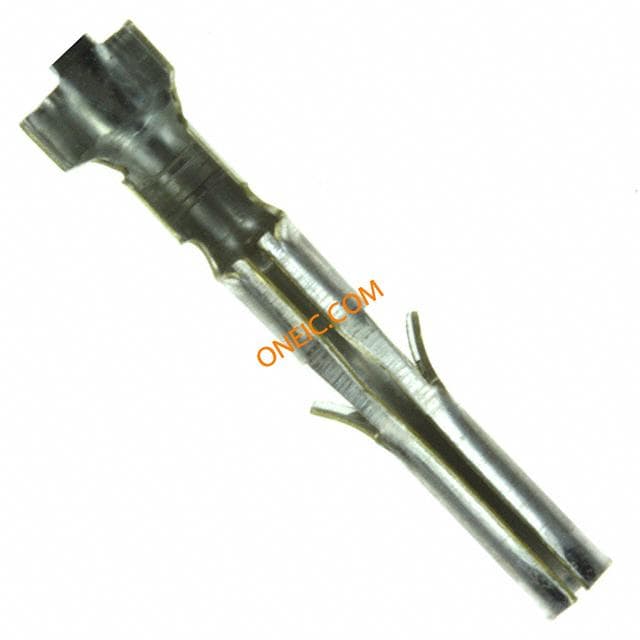

350628-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG TIN CRIMP Commercial contact,socket,0.20-0.80mm2 Pin & Socket Connectors UMNL SPLIT PIN Reel of 6500 Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,SOFTSHELL0.062,18-24AWG TE Connectivity Commercial .062 系列 母 压接接线端子, 压接, 镀锡触点 .062 COMM P&S SOK 18-24 PTPBR
794017-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG TIN CRIMP Contact male crimp 24-18AWG CPS Pin & Socket Connectors PIN CONTACT 24-18 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmLoose PiecePinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Pin,for24-18AWG Commercial 18-24 AWG Discrete Wire to Wire Strain Relief Pin Socket Contact TE Connectivity Commercial .062 系列 公 压接接线端子, 压接, 镀锡镀镍触点 .062 CP&S PIN PTPBR L/P 24-18

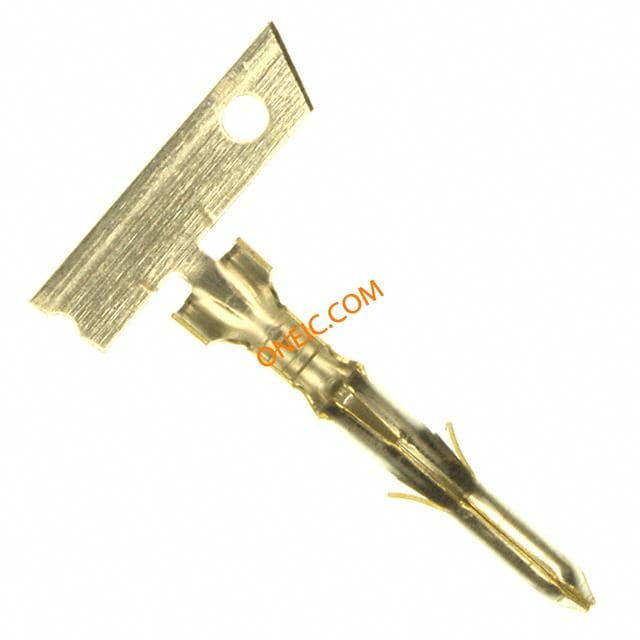

770983-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG TIN CRIMP Pin & Socket Connectors PIN 24-18 AWG TIN .062" Commercial Pin & Socket Connector Product Highlights:ContactContact Diameter = 1.57 mmPackaging Method = StripPinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S PIN 18-24 PTPBR

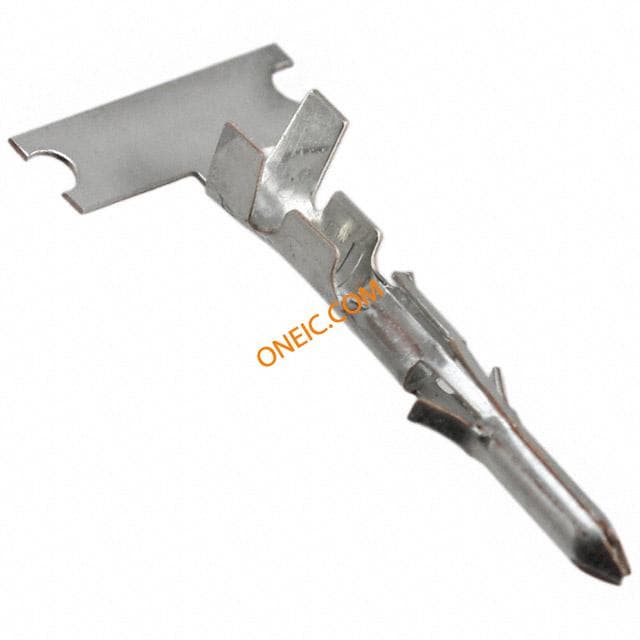

350629-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .062" Commercial Pin & Socket Connector CONN PIN .062 18-24AWG PRE-TIN Pin & Socket Connectors 062CPS PIN 24-18 .062 COMM P&S PIN PRE TIN/PHBZ

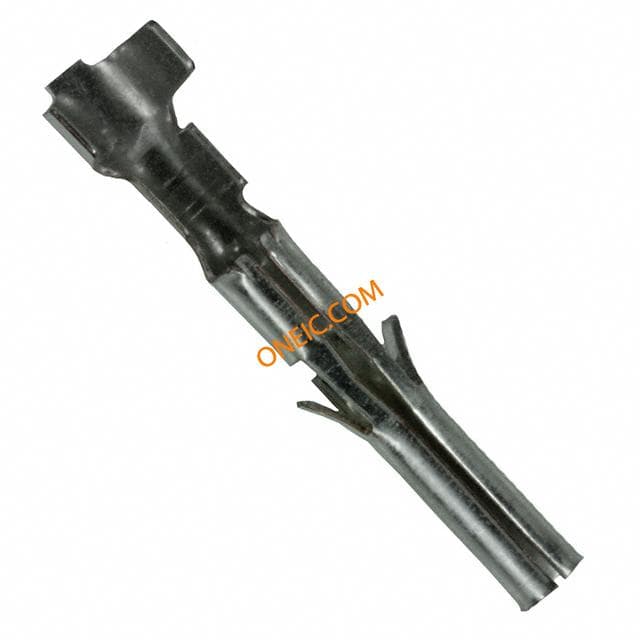

350628-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG .062 TIN Pin & Socket Connectors SOCKET CONTACT 24-18 350628-2 Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP .062 COMM P&S SOK PTPPHBZ

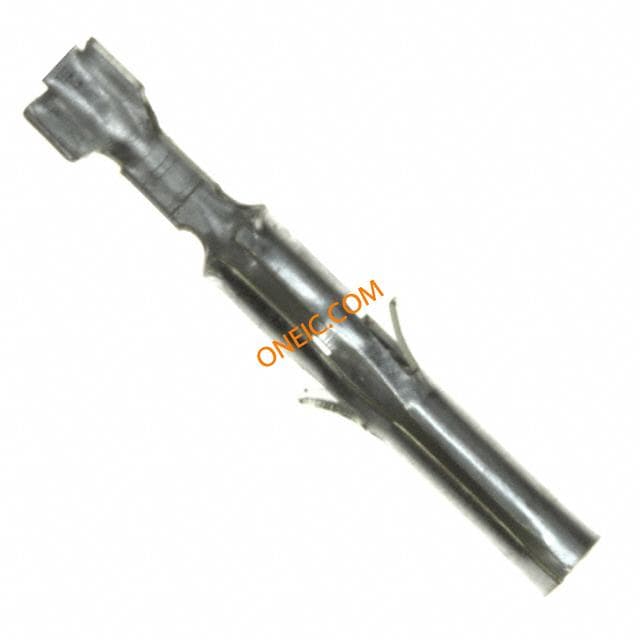

640392-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP Pin & Socket Connectors .062 COMM P&S 24-30 Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.05-0.24² [30-24] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S SOK 24-30 PTPBR
318831-1
te connectivity / amp
EXTRACTION TOOL ASSY Hand Tools CONTACT EXTRACT TOOL Extraction Tool Assembly Extraction Tool For Removing Socket Contacts From Connector Housings EXTRACTIONTOOLASSY;.062CommercialContacts

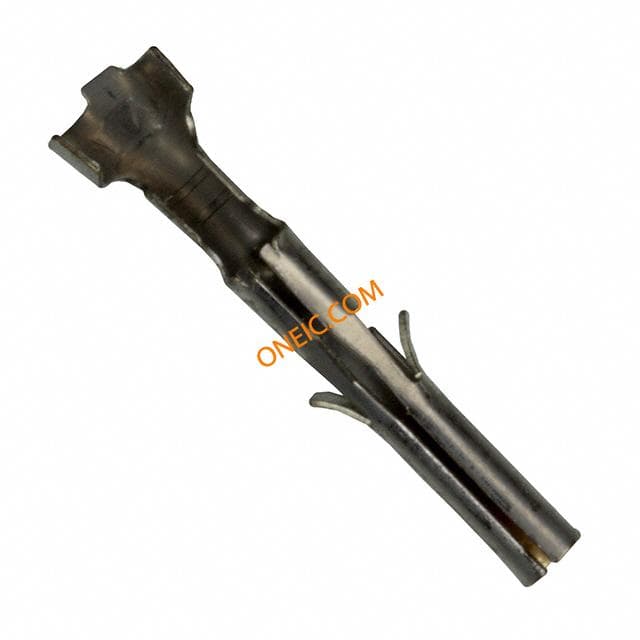

350628-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG .062 GOLD Pin & Socket Connectors SOCKET CONTACT 24-18 AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S SOK AUNI/BR
770355-1
te connectivity / amp
Conn Housing M 6 POS 3.68mm ST Individual Pin & Socket Connectors 6 CIR. MATRIX PLUG .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 6POS .062 .062 Pin and Socket housing Plug 6P Conn Housing M 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062Soft-ShellPin&Socket,Plug,FreeHanging,Matrix,6circuit 06P .062 COMM P&S PLUG

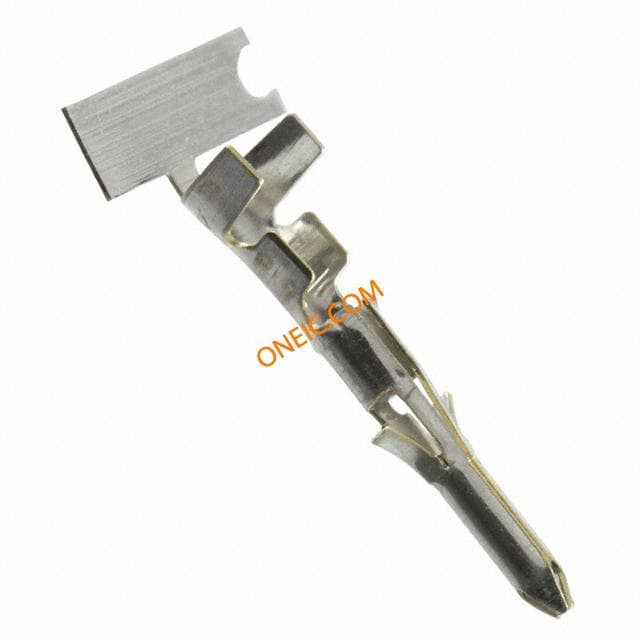

350629-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG .062 TIN Contact male crimp 24-18AWG CPS Pin & Socket Connectors SPLIT PIN 24-18 REEL Reel of 6000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 1.57 mmStripPinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP CONTACT,PIN,SOFTSHELL0.062,18-24AWG TE Connectivity Commercial .062 系列 公 压接接线端子, 压接, 镀锡触点 .062 COMM P&S PIN 18-24 PTPBR
350628-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET .062 24-18AWG GOLD Pin & Socket Connectors SOCKET 24-18 AWG AU .062 COMM P&S SOK AUNI/PHBZ .062 COMM P&S SOK AUNI/PHBZ Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,

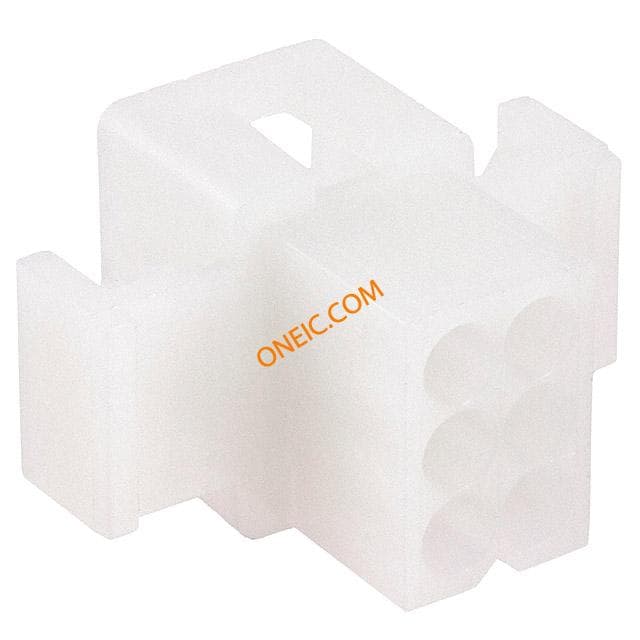

770353-1
te connectivity / amp
Conn Housing M 6 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 6POS 062 Pin & Socket Connectors 4P .062 COMM P&S PLG Conn Housing M 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Panel MountOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 06P .062 COMM P&S PLUG

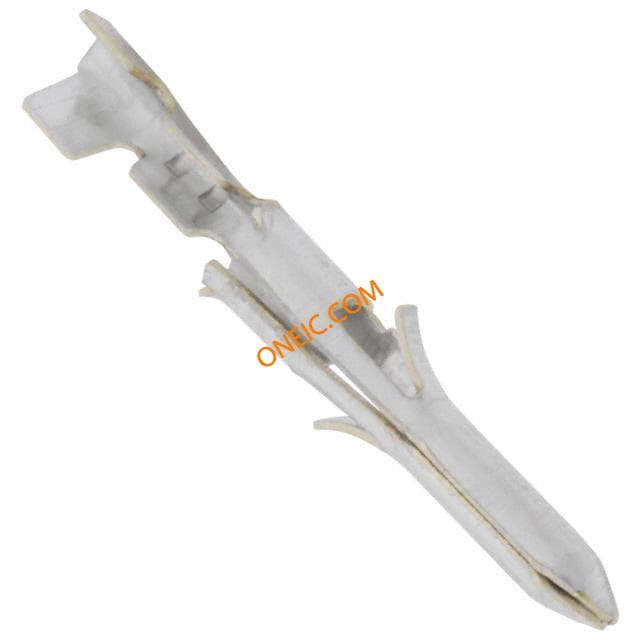

794018-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 24-30AWG TIN CRIMP .062 Pin + Socket Pin Contact 24-30AWG Pin & Socket Connectors PIN CONTACT 30-24 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmLoose PiecePinWire Range = 0.05-0.24² [30-24] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 30-24AWG, CRIMP .062Soft-ShellPin&Socket,Contacts(PreTinnedBrass),Pin,for30-24AWG .062 CP&S PIN PTPBR L/P 30-24
640392-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .062" Commercial Pin & Socket Connector CONN SOCKET 30-24AWG 30GOLD Pin & Socket Connectors 0.062 COMM P&S SOCKET AUPLBR Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.05-0.24² [30-24] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S SOCKET AUPLBR

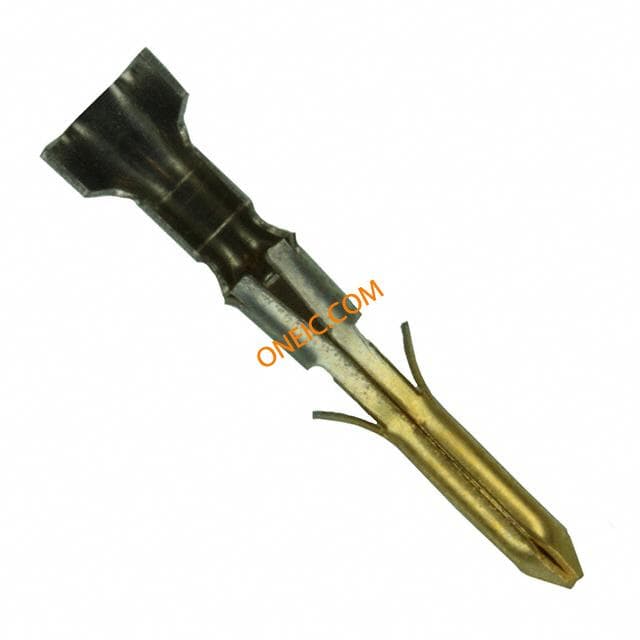

350629-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG .062 GOLD Pin & Socket Connectors PIN 24-18 AWG TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmStripPinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S PIN AUNI/BR

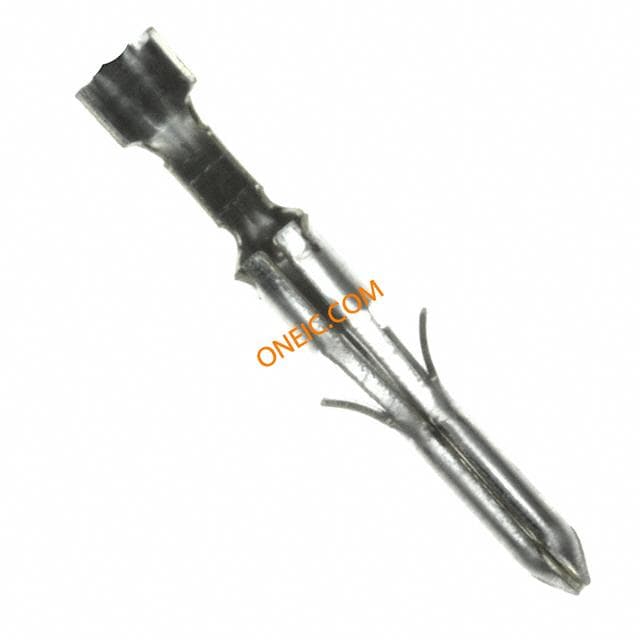

640391-1
