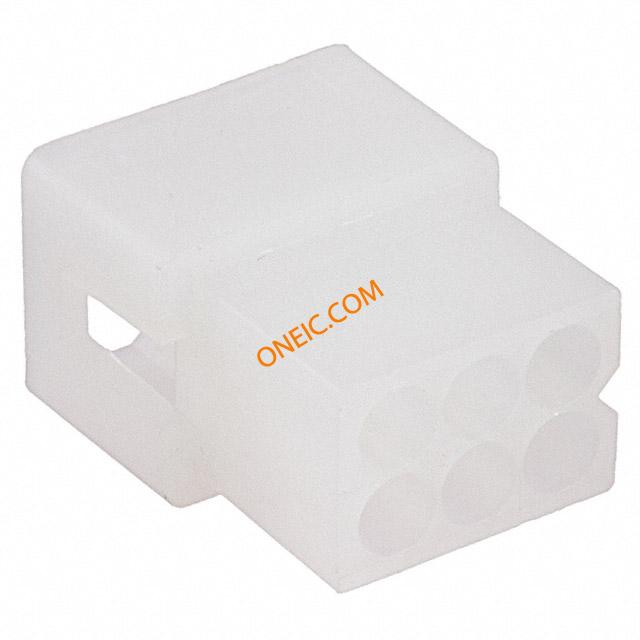

770355-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 6 POS 3.68mm ST Individual Pin & Socket Connectors 6 CIR. MATRIX PLUG .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 6POS .062 .062 Pin and Socket housing Plug 6P Conn Housing M 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062Soft-ShellPin&Socket,Plug,FreeHanging,Matrix,6circuit 06P .062 COMM P&S PLUG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 7 A | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | Commercial Pin and Socket | ||
机械参数
| 颜色 | Natural | 深度 | 19.05 mm |
| 间距 | 3.68 mm | 宽度 | 11.3 mm [ .445 in ] |
| 高度 | 15.24 mm | 长度 | 19.05 mm [ .75 in ] |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 电缆类型 | 分离式导线 |
| 导线线规 | 18-30 AWG | 排间距 | 3.68 mm |
| 触头类型 | Male or Female | 柱间距 | 3.68 x 3.68 [.145 x .145] |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 电缆直径 | 394.71 – 1776.17 | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 封装形式 | Plug |
| 壳体材料 | Nylon | 总长度 | 11.3 mm |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Plug | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 绝缘直径 | 1.27 – 2.79 mm [ .05 – .11 in ] | 位数 | 6 |
| 典型触点布局 | Matrix | 接触镀层厚度 | 1.57 [0.062] |
| 线规或范围 - AWG | 30-18 | ||
产品信息
| 备注 | See AMP Guide 65422 for cross references to Industry Standard .062/.093 product | 类型 | Housing |
| 连接器性别 | M | 产品子类型 | Plug Housings |
| 电路数 | 6 | 应用细节 | Power, Signal |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号

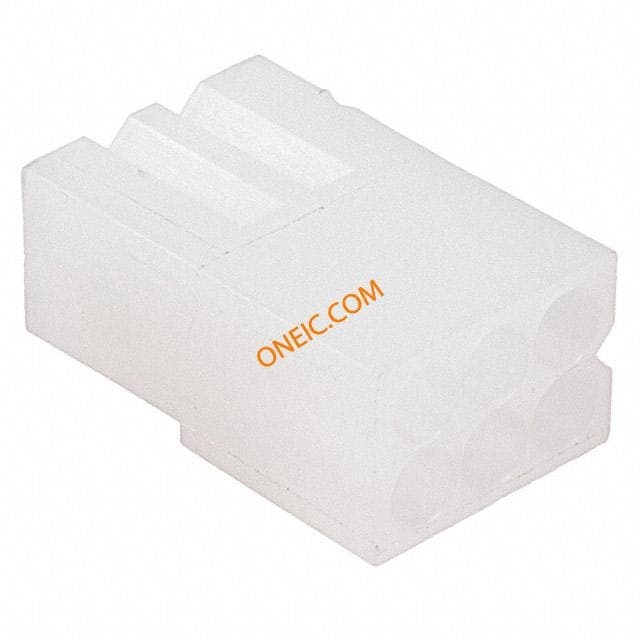

770356-1
