770340-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | 02P .062 COMM P&S PLUG BLACK CONN PLUG 2POS .062 BLACK Pin & Socket Connectors 02P 0.062 COMM P&S PLUG BLACK |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 12,000 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.145" (3.68mm) |
| 包装方式 | Bulk | 触头类型 | Male or Female |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 排数 | 1 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 产品子类型 | Receptacle Housings |
文档与媒体
相关型号

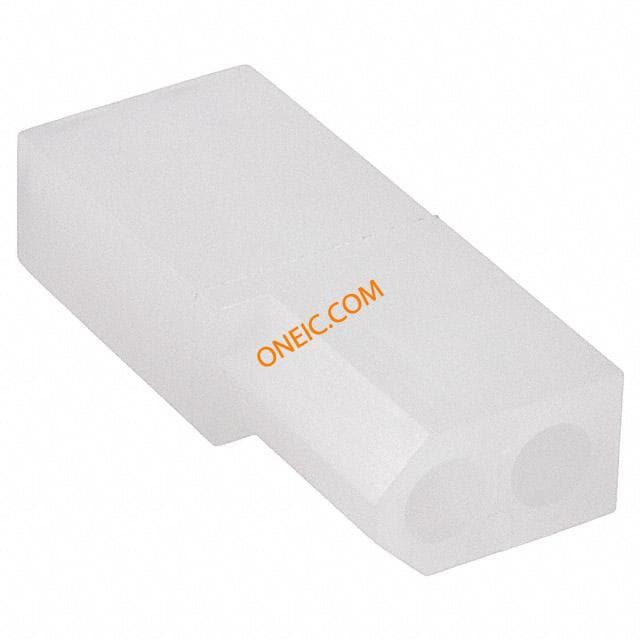

770342-1
te connectivity / amp
Conn Housing RCP 2 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 2POS .062 Housing FH Receptacle 2 way CPS 1.57mm Pin & Socket Connectors 2 CIR. IN-LINE RECPT PLUG AND SOCKET CONNECTOR HOUSING Connector,Shell;250VAC;7A(Max.);2;Receptacle;Nylon;Natural;0.062in. 02P .062 COMM P&S RECPT
770273-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors 0.062 COMM P&S .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062" Commercial Pin & Socket Connector Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,
794016-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG TIN CRIMP Contact female crimp 24-18AWG CPS Pin & Socket Connectors SCKT CONTACT 24-18 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmPackaging Method = Loose PieceSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT, CRIMP, SOCKET, 24-18AWG .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for24-18AWG TE Connectivity Commercial .062 系列 母 压接接线端子, 压接, 镀锡镀镍触点 .062 CP&S SOK PTPBR L/P 24-18

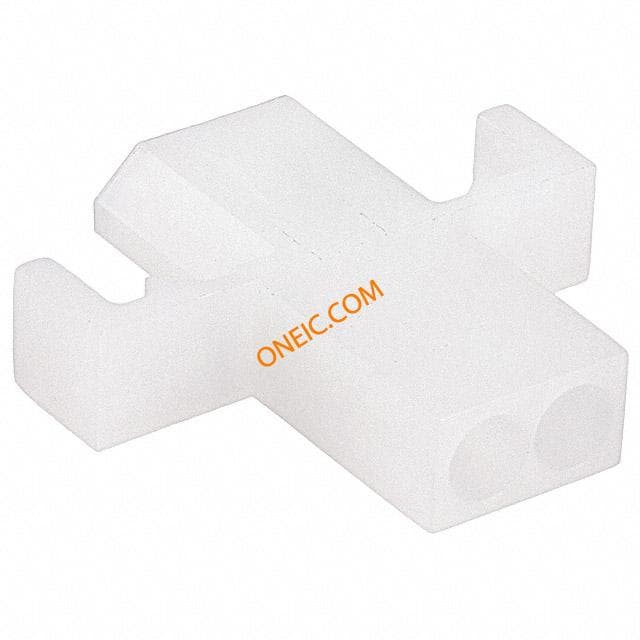

770343-1
