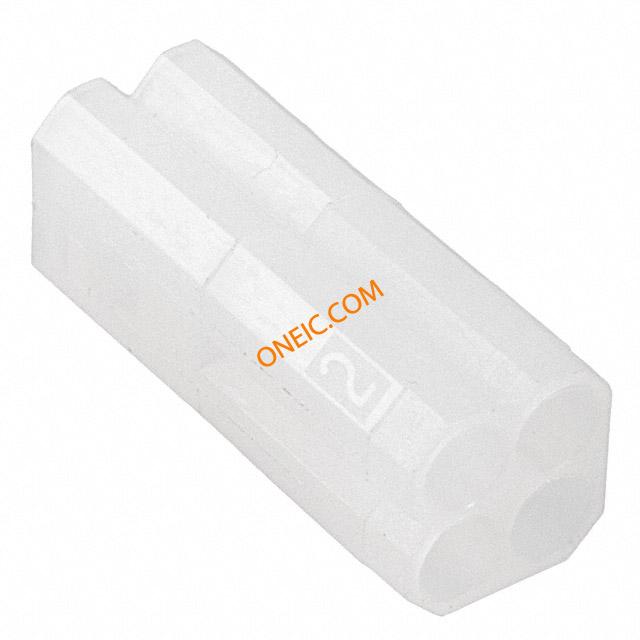

770432-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | .062ZZZ COMMERCIAL PIN & SOCKET CONNECTOR .062" Commercial Pin & Socket Connector CONN RCPT 4POS .062 Pin & Socket Connectors 04P 0.062 COMM P&S RCPT .062" Commercial Pin & Socket Connector Product Highlights:ConnectorCommercial Pin and SocketRow-to-Row Spacing = 3.68 mmMatrix Contact Layout3.68 mm CenterlineSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 04P .062 COMM P&S RECPT |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 供电电压 | 250 | 连接器类型 - 电压输入 | Commercial Pin and Socket |
机械参数
| 颜色 | Natural | 间距 | 0.145" (3.68mm) |
| 宽度 | 8.26 mm [ .3251 in ] | 高度 | 8.26 mm [ .325 in ] |
| 长度 | 21.34 mm [ .84 in ] | 密封型 | Not Sealed |
| 锁定类型 | Detent Lock | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 30 – 18 |
| 排间距 | 0.145" (3.68mm) | 触头类型 | Male or Female |
| 柱间距 | 3.68 x 3.68 [.145 x .145] | 安装类型 | Free Hanging |
| 电缆直径 | 394.71 – 1776.17 | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 封装形式 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 接触件端接 | Crimp | 绝缘直径 | 1.27 – 2.79 mm [ .05 – .11 in ] |
| 位数 | 4 | 典型触点布局 | Matrix |
| 接触镀层厚度 | 1.57 [0.062] | ||
产品信息
| 备注 | Part fits through a .395 diameter hole | 连接器性别 | Receptacle |
| 产品子类型 | Housing | 电路数 | 4 |
| 应用细节 | Power, Signal | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
