点击放大查看

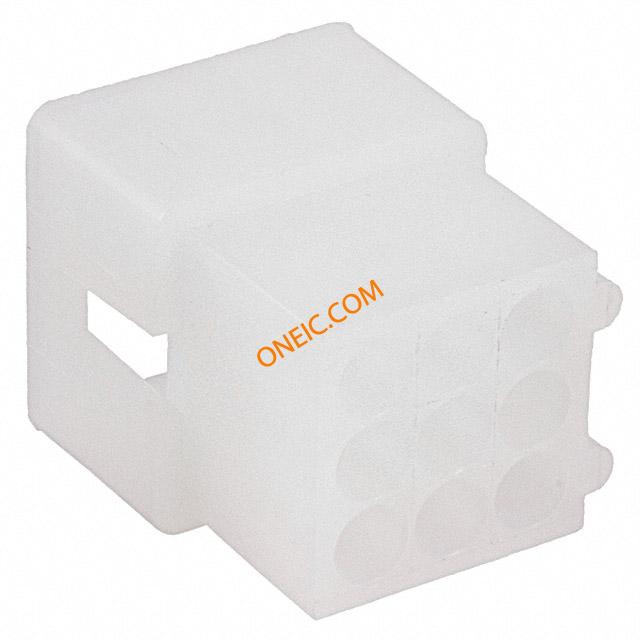

770428-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 9 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 9POS .062 Pin & Socket Connectors 9 CIR. MATRIX PLUG Conn Housing M 9 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 9Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG AND SOCKET CONNECTOR HOUSING CONNECTOR,SOFTSHELL,9POSITION,PLUG,250VAC,NYLON,NATURAL 09P .062 COMM P&S PLUG |
| 分类 |
商业参数
| 其他名称 | A14014 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 7 A | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | Commercial Pin and Socket | ||
机械参数
| 颜色 | Natural | 深度 | 19.05 mm |
| 间距 | 0.145" (3.68mm) | 高度 | 15.24 mm |
| 重量 | 0.00181 | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 导线线规 | 18-30 AWG |
| 排间距 | 0.145" (3.68mm) | 触头类型 | Male or Female |
| 柱间距 | 3.68 x 3.68 [.145 x .145] | 外壳颜色 | Natural |
| 安装类型 | Free Hanging | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 壳体材料 | Nylon |
| 总长度 | 14.99 mm | 包装数量 | One Piece Housing |
| 主要材料 | InterconnectSystem | 端接样式 | Plug |
| 第一触头极性 | Pin (Male) | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
| 典型触点布局 | Matrix | 接触镀层厚度 | 1.57 [0.062] |
| 线规或范围 - AWG | 30-18 | 第一连接器安装类型 | :Free Hanging |
产品信息
| 备注 | See AMP Guide 65422 for cross references to Industry Standard .062/.093 product | 类型 | Housing |
| 连接器性别 | Plug | 系列 | :Commercial 0.062" |
| 制造商全称 | SoftShell | 产品子类型 | Housing |
| 电路数 | 9 | 适用产品/相关产品 | :.062" Commercial Pin & Socket Connectors |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
