点击放大查看

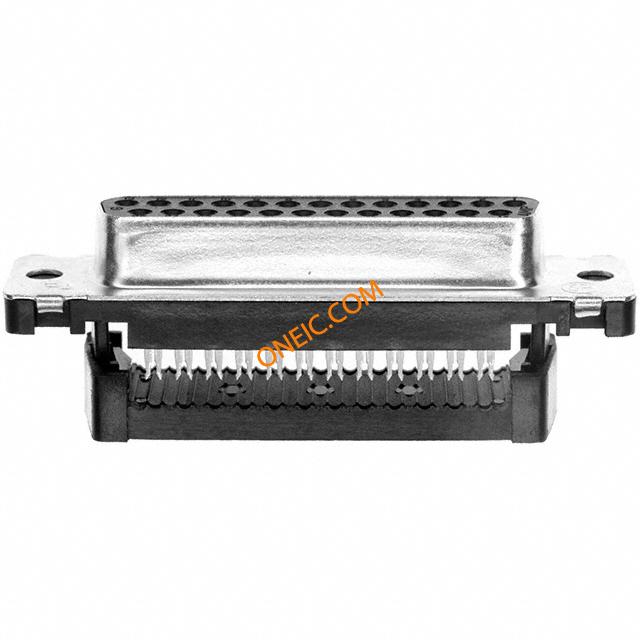

5746861-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S IDC RIBBON Standard Cable Connectors CONN RECEPT 25 POS GOLD IDC Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)25 PositionsWithout EnclosureHousing Gender = ReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDF-20 Series 25 Position Free Hanging Receptacle IDC Standard Cable Connector 25 POS HDF RCPT, MS |
| 分类 |
商业参数
| 其他名称 | 57468612 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 刺破式压接 (IDC) | 最大额定电流 | 1.25A |
机械参数
| 颜色 | Black | 间距 | 2.77 mm [ .0545 in ] |
| 外形尺寸(长x宽) | 3 | 材料（通用） | 黄铜 |
| 包装方式 | Tube | 屏蔽 | 是 |
| 电缆类型 | Ribbon Cable | 外壳尺寸 | 3 |
| 导线线规 | .08 – .15 mm² [ 28 – 26 AWG ] | 端接方式 | IDC, Ribbon Cable |
| 触点形式 | Signal | 触点尺寸 | 20 |
| 触头类型 | Signal | 外壳表面处理 | 锡 |
| 第二连接器 | With | 电缆开口 | 747275-2 |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Bright Tin |
| 端子尺寸 | 20 | 线径 | .81 – .97 mm [ .032 – .038 in ] |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Tin over Nickel |
| 法兰特征 | Housing/Shell (4-40) | 安装样式 | 低 |
| 排数 | 2 | 封装形式 | 不带 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Brass | 锁定特性 | Threaded Insert, 4-40 UNC |
| 材料表面处理 | None | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | 无 | 包装数量 | 40 |
| 接地凹痕 | Without | 端接样式 | 插座 |
| 触点数 | With | 绝缘直径 | 0.81 â 0.97 [0.032 â 0.038] |
| 位数 | 25 | 外壳尺寸-插件 | Front Metal Shell |
| 绝缘材料 - 材质 | 747275-2 | 外壳材料及表面处理 | Steel, Tin Plated |
| 螺纹/螺钉/孔尺寸 | Self-Locking | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 0.08 - 0.15 [28-26] | 控制侧电缆固定器 | 747275-2 |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 备注 | All plug assemblies are supplied with housing and cover preassembled; Locking f | 等级 | Standard |
| 连接器性别 | Receptacle | 系列 | HDF-20 (Ribbon Cable) |
| 产品特性 | Feed Through | 对数 | 747275-2 |
| 主要用途 | Feed Through | 预装 | 是 |
| 产品子类型 | Connector | 其他规格 | 不带 |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
