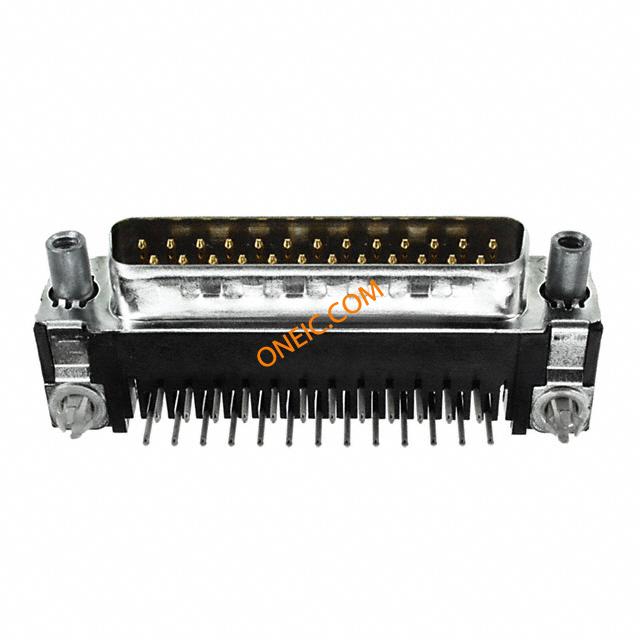

5747842-6

点击放大查看

5747842-6

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 25 Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS GOLD AMPLIMITE HD-20 d-sub PCB plug, 25 pin Conn D-Subminiature PIN 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;25Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.76mm 节距 25 路 直角 通孔安装 PCB D-sub 连接器 插头 25 MSFL PLUG RA 318 (SL,FM,BL)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量65

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗母端螺钉锁，固定最大额定电流6A
最小输入电压250VDC|250VAC最小供电电压250VDC/250VAC

机械参数

颜色Black深度18.75mm
间距2.75 mm宽度12.55mm
高度12.55 mm长度53.04mm
密封型No外形尺寸(长x宽)3
镀层Tin over Nickel包装方式Tray
壳体颜色黑色引脚样式Round
外壳尺寸3方向直角
端接方式Solder触头类型Signal
外壳表面处理锡第二连接器With
触点形状Round安装类型Through Hole
外壳镀层Tin连接器类型Plug, Male Pins
接触镀层Gold法兰特征Mating Side; Female Screwlock (4-40)
接地类型With尖端材料（笔尖）Tin over Copper Flash
安装样式Through Hole排数2
壳体镀层镀锡铜薄层外壳材料（壳体）Steel
电路板厚度0.062 [1.57]连接器样式D-Sub
插入件材料黄铜锁定特性Female Screwlocks, Fixed
磁芯材质黄铜外形（宽 x 高）Standard
触头材料Brass壳体材料Nylon|Polyester
总长度53.04 mm安装特性板锁
包装数量65面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕With
外形尺寸 长x宽x高8.08 [.318]端接样式Solder
第一触头极性PIN连接器颜色None
外径.66 mm [ .026 in ]触点数25
位数25外壳尺寸-插件Front Metal Shell
端子螺钉表面处理透明铬酸盐安装孔直径3.18 [.125]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash螺钉材料 - 镀层Clear Chromate
触点材料 - 镀层锌外壳与棱镜材料否
后壳材料及镀层镍打底镀锡外壳尺寸，连接器布局3 (DB, B)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Board Lock, Ground Strap, Grounding Indents可密封否
制造商全称AMP预装是
产品子类型连接器端口数1
其他规格4-40 UNC 包容式螺钉锁，板锁

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
