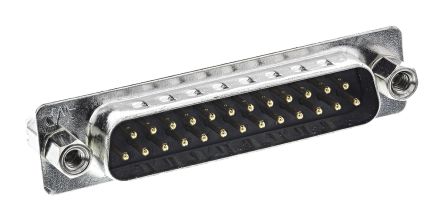

点击放大查看
3-1634220-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Tray D-Sub Standard Connectors 25P PLUG VERT 15 AU Standard Board Mount Connectors CONN D-SUB PLUG 25POS VERT GOLD 25way D-plug with female screw boardlock Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Tray Product Highlights:Number of Positions = 25PlugPCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub PLUG, D, PCB, SCREWLOCK, 25WAY TE Connectivity AMPLIMITE HDP-20 系列 2.77mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插头 25w D plg W B/L & 4-40 s/lock 15u" gold |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认可国家 | UL E28476 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - TDE Series |
| 额定电压 | 250V | 工作电压 | :250VDC |
| 介电强度 | :500V | 最大额定电流 | 3A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 间距 | 2.77 mm | 宽度 | 12.7mm |
| 长度 | 53.1mm | 密封型 | No |
| 重量 | 0.012 | 材料（通用） | :Steel |
| 包装方式 | Tray | 外壳尺寸 | 3 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 壳体镀层 | :Gold | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.063 [1.60] | 连接器样式 | D-Sub |
| 锁定特性 | Female Screwlocks, 4-40 UNC | 本体材料 | :Metal |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 面板安装类型 | Without | 尺寸/外形 | 53.1 x 12.7 x 12.55mm |
| 接地凹痕 | With | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 25 |
| 接触件端接 | :Solder | 位数 | 25 |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Nickel Plated |
| 端子柱长度 | 4.00 [0.157] | 接触镀层厚度 | 15µin (0.38µm) |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HD-20 | 产品特性 | Board Lock, Grounding Indents |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
