点击放大查看
1658608-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P IDC RIBBON Standard Cable Connectors CONN D-SUB PLUG 25POS GOLD AMPLIMITE HDF-20 d-sub IDC plug,25 pin Conn D-Subminiature PIN 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 25PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, DSUB, 25WAY Conn;D-Ribbon;CablePlug;25Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳 25 POS HDF PLUG, MS, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDF-20 Series | 额定电压 | 30 V ac |
| 最大额定电流 | 1.25A | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Black | 深度 | 12.59mm |
| 间距 | 2.76 mm | 宽度 | 18.56mm |
| 高度 | 18.56 mm | 长度 | 53.08mm |
| 重量 | 0.004 | 包装方式 | Tube |
| 电缆类型 | Ribbon Cable | 外壳尺寸 | 3 |
| 端接方式 | IDT | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 电缆开口 | 747275-2 | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 连接器类型 | Insulation Displacement Crimp (IDC) |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Brass | 锁定特性 | Threaded Insert, 4-40 UNC |
| 本体材料 | :Metal | 材料表面处理 | None |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 53.08 mm |
| 尺寸/外形 | 53.08 x 18.56 x 12.59mm | 接地凹痕 | With |
| 端接样式 | Crimp | 触点数 | 25 |
| 接触件端接 | :Crimp | 绝缘直径 | 0.81 â 0.97 [0.032 â 0.038] |
| 位数 | 25 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 螺纹/螺钉/孔尺寸 | Standard |
| 接触镀层厚度 | Flash | 外部壳体材料 | Thermoplastic |
| 线规或范围 - AWG | 0.08 - 0.15 [28-26] | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | All plug assemblies are supplied with housing and cover preassembled | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDF-20 | 产品特性 | Feed Through, Grounding Indents |
| 对数 | 747275-2 | 产品子类型 | Connector |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
5747838-3
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S RA590 Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS GOLD Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 MSFL RCPT RA 590 (IN,FM,BL)
1-338315-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P HDP20 REC ASSY Standard Board Mount Connectors CONN D-SUB RCPT VERT 25POS AMPLIMITE HDP-20 d-sub PCB socket,25 way Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = VerticalProduct Series = HDP-20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, B/L & 4-40UNC, 25WAY AMPLIMITEHDP-20d-subPCBsocket,25way TE Connectivity AMPLIMITE HDP-20 系列 2.76mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插座 25P.HDP20 REC.ASSY
5746861-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S IDC RIBBON Standard Cable Connectors CONN RECEPT 25 POS GOLD IDC Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)25 PositionsWithout EnclosureHousing Gender = ReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDF-20 Series 25 Position Free Hanging Receptacle IDC Standard Cable Connector 25 POS HDF RCPT, MS
3-106507-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P RECPT ASSY Standard Board Mount Connectors CONN RCPT 25PS R/A BOARDLOCK MET Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, 40-40UNC, 25WAY D-Sub socket 25P, 3-106507-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 直角 通孔 DB25 25 路 焊接 D-sub 连接器 插座 , 6A 25P.HDP20 REC.ASSY.
5747846-5
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 25 Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS GOLD AMPLIMITE HD-20 Socket Right Angle 25P Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;PCBSocket;25Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 25 MSFL RCPT RA 318 (SL,FM,BL)
745886-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors RECP FULL MTL SHL 25 clinch nuts Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 RCPT SP/MS CNUT
1-5745967-5
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S V/MNT Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsWith ContactsHousing Gender = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 RCPT SP/FMS SCRLK
748612-1
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25 RCPT HD 20 BRDLK Standard Board Mount Connectors CONN D-SUB RECEPT VERT 25POS Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub CONN D-SUB 25 RCPT SP/FMS BRDLK
8-1393480-3
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors V23529B1223B225 SUB D FEDERLEI Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
1-1634224-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Tray D-Sub Standard Connectors 25P RECPT VERT 15 AU Standard Board Mount Connectors CONN D-SUB RCPT 25POS VERT GOLD 25 way D-socket plus lock & insert Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Tray Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, PCB, THR/INSERT, 25WAY 25wayD-socketpluslock&insert TE Connectivity Amplimite HD-20 系列 2.77mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插座 25w D skt W B/L & 4-40 inserts 15u" gold
106507-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P RCPT R/A BRDLOCK 25P.HDP20 REC.ASSY. Standard Board Mount Connectors CONN RCPT 25PS R/A BOARDLOCK MET 25P.HDP20 REC.ASSY.
5745114-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors RECP FULL MTL SHL 25 standard mntg screws Standard Board Mount Connectors CONN DSUB RCPT 25POS T/H RA GOLD Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT TE Connectivity Amplimite HD-20 系列 2.768mm 节距 25 路 直角 通孔安装 PCB D-sub 连接器 插座 25 RCPT RA/MS STD
5205858-1
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P RCPT RA/MS STD Standard Board Mount Connectors CONN D-SUB RECEPT R/A 25POS GOLD Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 RCPT RA/MS STD
5745992-3
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P MSFL RCPT RA 590 Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS AU Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 MSFL RCPT RA 590 (IN,FM)
5745967-8
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 25 threaded inserts Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;PCBSocket;25Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.77mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插座 25 RCPT SP/FMS INSRT
5745886-1
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S V/MNT Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;PCBSocket;25Pos;STR;HD-20Series;20AWG;FullMetalShell HD20 Series 25 Position Straight Receptacle Board Mount D-Sub Connector 25 RCPT SP/MS CNUT
5745967-7
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 25 threaded inserts Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;PCBSocket;25Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.77mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插座 25 RCPT SP/FMS INSRT
2-1734285-1
te connectivity / amp
Conn D-Subminiature SKT/SKT 25/25 POS 2.77mm Solder RA Thru-Hole 50 Terminal 2 Port Tray D-Sub Dualport Connectors 25P RCPT / 25P RCPT Stacked Connectors D-SUB 25POS RCPT OVER 25POS RCPT
5745783-4
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 25 Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS 30GOLD AMPLIMITE HD-20 d-sub PCB socket, 25 way Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;PCBSocket;25Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 25 路 直角 面板安装 PCB D-sub 连接器 插座 25 MSFL RCPT RA 318 (IN,FM)

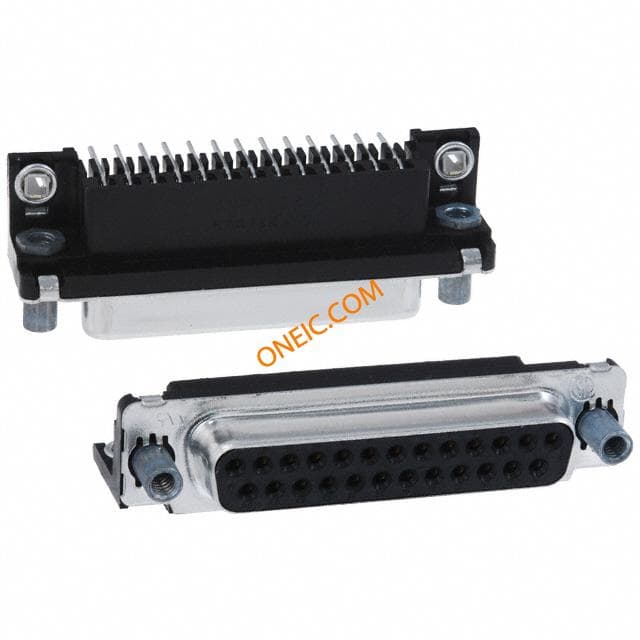

27-02514-00
