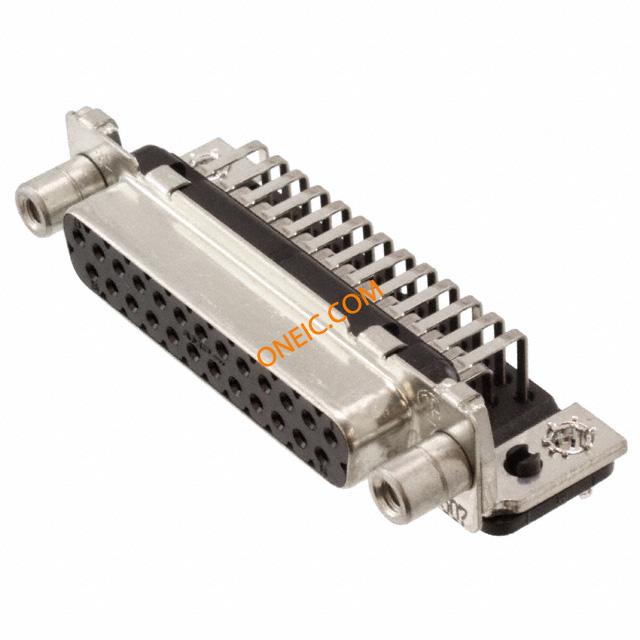

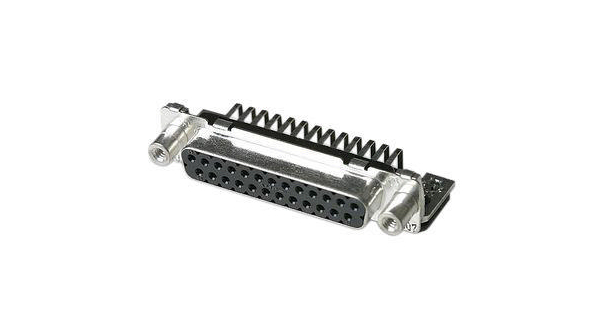

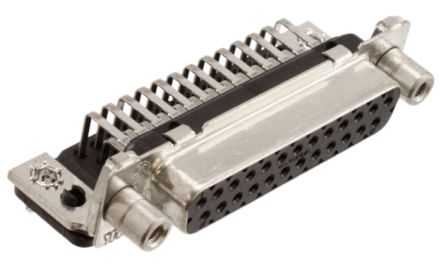

3-106507-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P RECPT ASSY Standard Board Mount Connectors CONN RCPT 25PS R/A BOARDLOCK MET Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, 40-40UNC, 25WAY D-Sub socket 25P, 3-106507-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 直角 通孔 DB25 25 路 焊接 D-sub 连接器 插座 , 6A 25P.HDP20 REC.ASSY. |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | DIN 41652 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series |
| 额定电压 | 125V | 工作电压 | :250VAC |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 深度 | 21.3 mm |
| 间距 | 2.76 mm | 高度 | 13.6 mm |
| 密封型 | No | 重量 | 0.014 |
| 镀层 | Tin | 材料（通用） | Phosphor Bronze |
| 占位面积 | 10.31 [.406] | 包装方式 | Tray |
| 插头颜色 | Black | 外壳尺寸 | 3 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | With | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 [1.57] |
| 连接器样式 | D-Sub | 锁定特性 | Female Screwlocks, 4-40 UNC |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 53.1 mm |
| 面板安装类型 | Without | 接地凹痕 | Without |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 触点数 | 25 | 接触件端接 | :Solder |
| 位数 | 25 | 外壳尺寸-插件 | Full Metal |
| 绝缘材料 - 材质 | Steel | 外壳材料及表面处理 | Steel, Tin Plated |
| 触点材料 - 柱 | Nylon | 端子柱长度 | 3.20 [0.126] |
| 夹持材料 - 镀层 | Tin | 接触镀层厚度 | 30µin (0.76µm) |
| 螺钉材料 - 镀层 | Steel | 后壳材料及镀层 | Steel |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HD-20 | 产品特性 | Board Lock |
| 制造商全称 | AMP | 端口数 | 1 Port |
环境参数
| 工作范围 | Level 2 | 工作温度 | -55°C ~ 105°C |
