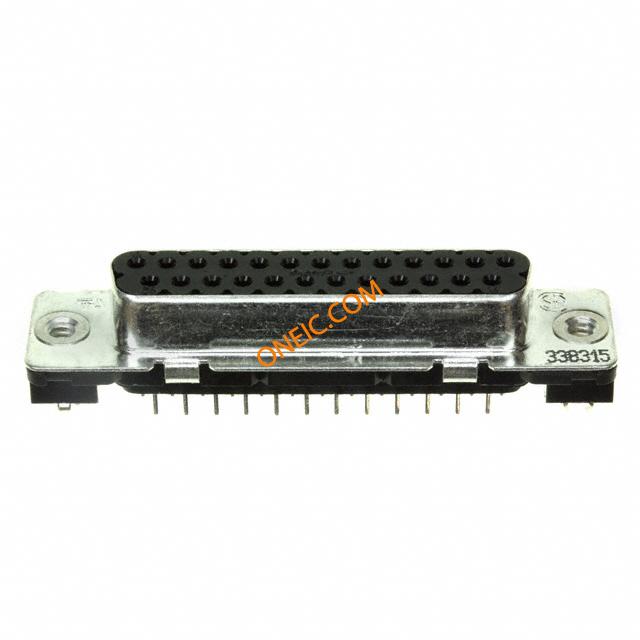

1-338315-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P HDP20 REC ASSY Standard Board Mount Connectors CONN D-SUB RCPT VERT 25POS AMPLIMITE HDP-20 d-sub PCB socket,25 way Conn D-Subminiature SKT 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = VerticalProduct Series = HDP-20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, B/L & 4-40UNC, 25WAY AMPLIMITEHDP-20d-subPCBsocket,25way TE Connectivity AMPLIMITE HDP-20 系列 2.76mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插座 25P.HDP20 REC.ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366990 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | DIN 41652 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series |
| 工作电压 | :250VAC | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 12.4mm |
| 间距 | 2.76 mm | 宽度 | 12.1mm |
| 高度 | 12.1 mm | 长度 | 53.1mm |
| 密封型 | No | 重量 | 0.0826 |
| 材料（通用） | :Steel | 包装方式 | Tray |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.063 [1.60] |
| 连接器样式 | D-Sub | 锁定特性 | Threaded Insert, 4-40 UNC |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 53.1 mm |
| 面板安装类型 | Without | 尺寸/外形 | 53.1 x 12.1 x 12.4mm |
| 接地凹痕 | Without | 外形尺寸 长x宽x高 | 5.99 [.236] |
| 端接样式 | Solder | 连接器颜色 | None |
| 触点数 | 25 | 接触件端接 | :Solder |
| 位数 | 25 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 4.50 [0.177] |
| 外壳与棱镜材料 | :Steel | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Connector has boardlocks which have to be clinched onto the PCB for a perfect g | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HDP-20 |
| 产品特性 | Board Lock | 制造商全称 | AMP |
| 端口数 | 1 Port | ||
环境参数
| 工作范围 | Level 2 | 工作温度 | -55°C ~ 105°C |
文档与媒体
相关型号
