749810-9

点击放大查看

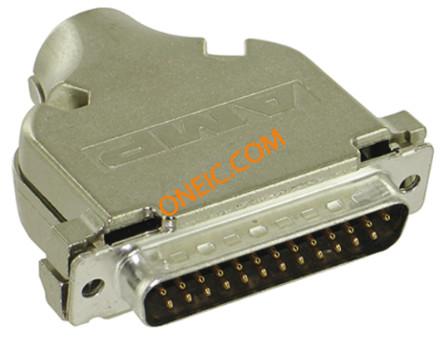

749810-9

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PL 25 POS IDT ST Cable Mount 25 Terminal 1 Port Bulk D-Sub Standard Connectors KIT SZ 1, HDE PLUG, LEAD FREE Standard Cable Connectors CONN D-SUB PLUG 25POS IDC METAL Conn,D-Sub,CablePlug,25Pos,STR,HDE-20S Standard Cable Connectors Product Highlights:Connector KitProduct Series = HDE-20 (IDC)Number of Positions = 25ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CablePlug;25Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell KIT SZ 1, HDE PLUG, LEAD FREE
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格1标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant标准UL94V-0
无铅定义Not relevant for lead free process认证机构ULRecognized,ULListedandCSACertified
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗刺破式压接 (IDC)
最大额定电流Varies by Wire Gauge

机械参数

颜色Black间距2.77 mm [ .109 in ]
外形尺寸(长x宽)3材料（通用）Stainless Steel
锁定类型带有包装方式Bulk
屏蔽是壳体颜色黑色
出线方向180°电缆类型环状护套电缆
外壳尺寸3导线线规26-22
屏蔽类型Yes端接方式IDT
螺纹尺寸4-40触点尺寸20
触头类型Signal外壳表面处理铜镀锡
第二连接器With外壳颜色Black
安装类型Cable Mount外壳镀层Tin over Copper
端子尺寸20行程角度Straight
电缆材料Polypropylene连接器类型Insulation Displacement Crimp (IDC)
接触镀层Tin法兰特征Cable Side; Male Short Screw (4-40)
排数2螺丝材料Steel
外壳材料（壳体）Steel绑带材料Stainless Steel
连接器样式D-Sub插入件材料磷青铜, 黄铜
锁定特性Mounting Holes屏蔽材料Steel
触头材料Phosphor Bronze, Brass壳体材料Nylon, Polyester GF
安装特性无包装数量Bulk
主要材料D-Subminiature电缆端接方式One-Piece Quick Snap
接地凹痕With端接样式插针
外径6.48 – 11.94 mm [ .255 – .47 in ]触点数With
绝缘直径6.48 – 11.94 [0.255 – 0.470]位数25
外壳尺寸-插件Full Metal Shell衬套/护套类型With
端子螺钉表面处理锌外壳材料及表面处理Steel, Tin Plated
螺纹/螺钉/孔尺寸钢接触件表面处理 - 配合不锈钢
接触镀层厚度Flash螺钉材料 - 镀层Zinc
线规或范围 - AWG0.15 - 0.40 [26-22]外壳与棱镜材料聚丙烯
控制侧电缆固定器With外壳尺寸，连接器布局3 (DB, B)

产品信息

类型D-Subminiature等级Standard
连接器性别PL系列HDE-20 (IDC)
产品特性Backshell, Cable Clamp, Grounding Indents制造商全称AMP
预装是产品子类型Connector Kit
其他规格不锈钢应用细节Commercial

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
749810-9?RQPN=749810-9
