点击放大查看

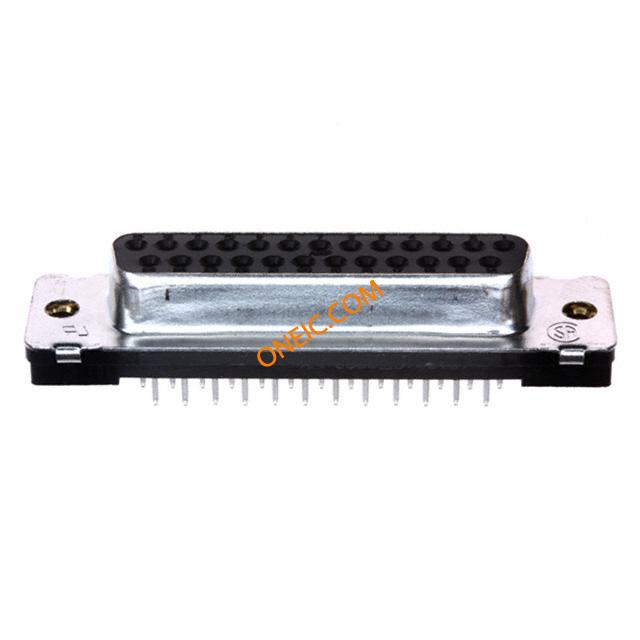

5745967-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 25 threaded inserts Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;PCBSocket;25Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.77mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插座 25 RCPT SP/FMS INSRT |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 00000000 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.55 mm |
| 间距 | 2.77 mm | 高度 | 12.16 mm |
| 密封型 | No | 重量 | 0.009 |
| 包装方式 | Tube | 外壳尺寸 | 3 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Vertical | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 â 0.093 [1.57 â 2.36] |
| 连接器样式 | D-Sub | 插入件材料 | Brass |
| 锁定特性 | Threaded Insert, 4-40 UNC | 本体材料 | :Metal |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 53.09 mm |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 25 |
| 接触件端接 | :Solder | 位数 | 25 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | Female | 系列 | HD-20 |
| 制造商全称 | AMP | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
