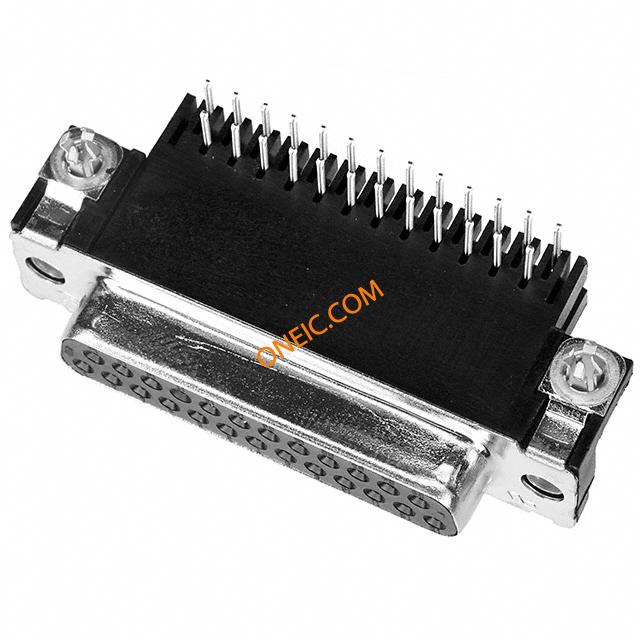

5747838-3

点击放大查看

5747838-3

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S RA590 Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS GOLD Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 MSFL RCPT RA 590 (IN,FM,BL)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量10

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗螺纹插针，4-40 UNC, 螺纹插针，4-40 UNC最大额定电流6A

机械参数

颜色Black密封型No
外形尺寸(长x宽)3镀层Tin
材料（通用）Copper Alloy包装方式Tube
屏蔽否壳体颜色黑色
引脚样式Round外壳尺寸3
端接方式Solder触头类型Signal
柱间距.108外壳表面处理锡
第二连接器With触点形状Round
安装类型Right Angle外壳镀层Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型With
尖端材料（笔尖）Tin安装样式Through Hole
排数2壳体镀层锡
外壳材料（壳体）Steel电路板厚度0.062 [1.57]
连接器样式D-Sub插入件材料Zinc
锁定特性Threaded Inserts磁芯材质黄铜
材料表面处理Clear Chromate外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性板锁包装数量10
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕Without外形尺寸 长x宽x高14.99 [.590]
端接样式Through Hole连接器颜色None
外径.66 mm [ .026 in ]触点数25
位数25外壳尺寸-插件Front Metal Shell
安装孔直径3.18 [.125]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
触点材料 - 镀层锌外壳与棱镜材料否
后壳材料及镀层锡外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts连接器性别Female
系列HD-20产品特性Board Lock, Ground Strap
可密封否制造商全称AMP
预装是产品子类型连接器
其他规格否

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
