点击放大查看

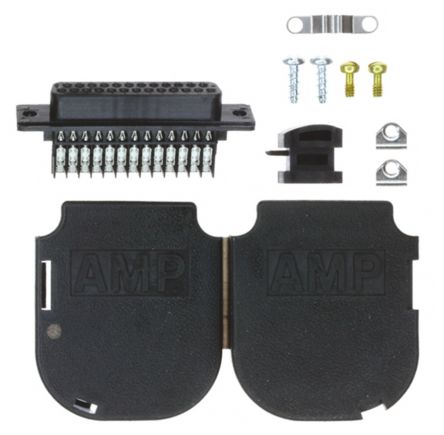

749808-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS Crimp ST Cable Mount 25 Terminal 1 Port Bulk D-Sub Standard Connectors PLUG 25 POS CRIMP Standard Cable Connectors CONN D-SUB PLUG 25POS CRIMP Standard Cable Connectors Product Highlights:Cable Connector and ClampProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25Not ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, PLUG Conn;D-Sub;CablePlug;25Pos;STR;HDP-20Series;CrimpSnap;24-20AWG;UnshieldedKit TE Connectivity AMPLIMITE HDP-20 25触点 KIT,HDP-20,PLUG,SIZE 1, 25 POS |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series | 额定电压 | 250V |
| 最大额定电流 | Varies by Wire Gauge | ||
机械参数
| 颜色 | Black | 重量 | 0.027 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 出线方向 | Straight(180°) | 外壳尺寸 | 3 |
| 导线线规 | 24-20 | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 基体材料 | :Plastic | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Tin over Copper |
| 行程角度 | Straight | 电缆材料 | Polypropylene |
| 连接器类型 | Crimp Snap | 接触镀层 | Tin over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 2 |
| 螺丝材料 | Steel | 外壳材料（壳体） | Steel |
| 绑带材料 | Stainless Steel | 连接器样式 | D-Sub |
| 插入件材料 | Nylon | 锁定特性 | Mounting Screws, Retainer Clip |
| 本体材料 | :Metal | 触头材料 | Brass |
| 壳体材料 | Nylon, Polyester GF | 包装数量 | Bulk |
| 主要材料 | D-Subminiature | 电缆端接方式 | One-Piece Quick Snap |
| 接地凹痕 | With | 端接样式 | Crimp |
| 触点数 | With | 接触件端接 | :Crimp |
| 绝缘直径 | 4.57 â 11.68 [0.180 â 0.460] | 绝缘材料 - 类型 | Glass Filled Nylon |
| 位数 | 25 | 外壳尺寸-插件 | Full Metal Shell |
| 衬套/护套类型 | Without | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 螺钉材料 - 镀层 | Zinc |
| 外部壳体材料 | Polypropylene | 线规或范围 - AWG | 0.2 - 0.56 [24-20] |
| 控制侧电缆固定器 | With | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 类型 | CablePlug | 等级 | Standard |
| 连接器性别 | Plug | 系列 | HDP-20 (Crimp Snap) |
| 产品特性 | Backshell (Dual Exit), Grounding Indents, Strain Relief, Retaining Hardware | 制造商全称 | AMP |
| 产品子类型 | Cable Connector and Clamp | ||
环境参数
| 温度范围 | - 55 C to + 105 C | 工作温度 | -55°C ~ 105°C |
