5747846-2

点击放大查看

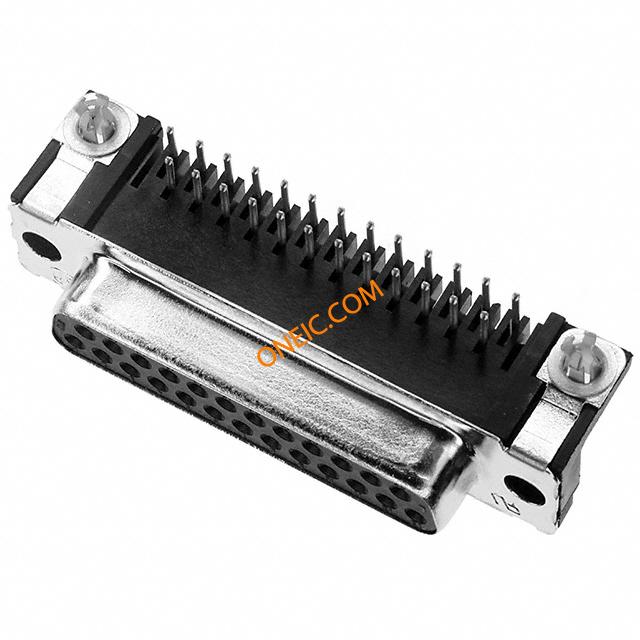

5747846-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 25P SOCKET Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS 30GOLD Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;25Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 25 MSFL RCPT RA 318 (FM,BL)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量1

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black间距2.76 mm
密封型No外形尺寸(长x宽)3
镀层Tin占位面积8.08 [.318]
包装方式Tray壳体颜色黑色
引脚样式Round外壳尺寸3
端接方式Solder触头类型Signal
柱间距.109外壳表面处理锡
第二连接器Without触点形状Round
安装类型Through Hole外壳镀层Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型With
尖端材料（笔尖）Tin安装样式Through Hole
排数2壳体镀层锡
外壳材料（壳体）Steel电路板厚度0.062 [1.57]
连接器样式D-Sub插入件材料磷青铜
磁芯材质黄铜外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性板锁包装数量65
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕Without端接样式Through Hole
连接器颜色None外径.66 mm [ .026 in ]
触点数25位数25
外壳尺寸-插件Front Metal Shell安装孔直径3.18 [.125]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度30µin (0.76µm)触点材料 - 镀层锌
外壳与棱镜材料否后壳材料及镀层镍打底镀锡
外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别SKT系列HD-20
产品特性Board Lock, Ground Strap可密封否
制造商全称AMP预装是
产品子类型连接器其他规格否

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
