点击放大查看

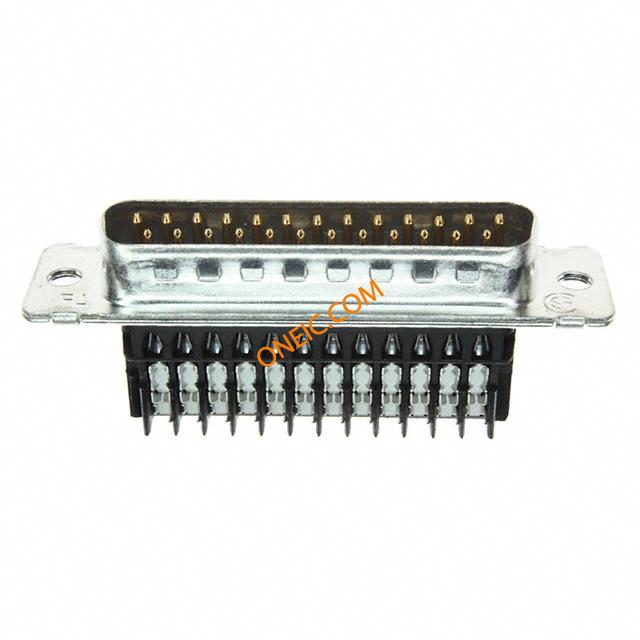

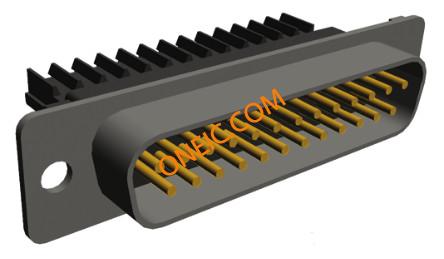

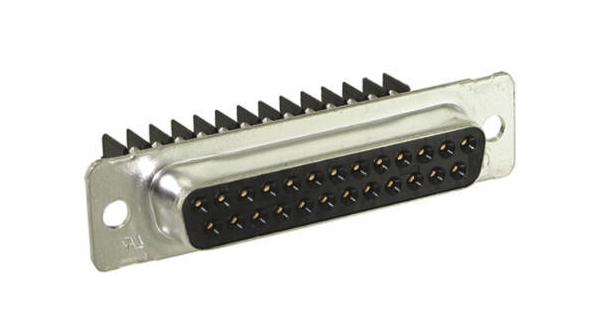

1-745496-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors HDE-20 25P PLUG Standard Cable Connectors CONN D-SUB PLUG 25P 22-26AWG AU AMPLIMITE HDE-20 d-sub IDC plug,25 pin Conn D-Subminiature PIN 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 25PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, METAL, 25WAY Conn;D-Sub;CablePlug;25Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell D-Sub male 25P, 1-745496-7, TE Connectivity TE Connectivity AMPLIMITE HDE-20 系列 2.76mm 节距 25 路 IDC D-sub 连接器, 插头, 钢外壳 25 HDE MS PLUG,22-26,LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 84 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDE-20 Series | 额定电压 | 250V |
| 接触电阻 | :30mohm | 最大额定电流 | Varies by Wire Gauge |
| 触点额定电流 | :3A | ||
机械参数
| 颜色 | Black | 深度 | 22.58mm |
| 间距 | 2.76 mm | 宽度 | 12.92mm |
| 长度 | 53.41mm | 重量 | 0.001 |
| 材料（通用） | :Thermoplastic | 包装方式 | Tray |
| 电缆类型 | Discrete Wire, Round Jacketed Cable | 外壳尺寸 | 3 |
| 导线线规 | 26-22 | 端接方式 | IDT |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Tin over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic, Glass Filled | 主要材料 | D-Subminiature |
| 尺寸/外形 | 53.41 x 12.92 x 22.58mm | 接地凹痕 | With |
| 端接样式 | IDC | 连接器颜色 | :Black |
| 触点数 | 25 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 1.52 [0.060] | 位数 | 25 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 线规或范围 - mm² | 0.15 - 0.40 [26-22] |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 备注 | All connectors are preloaded. Individual conductor strands should be larger tha | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDE-20 | 产品特性 | Grounding Indents |
| 制造商全称 | HDE-20 | 产品子类型 | Connector |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
