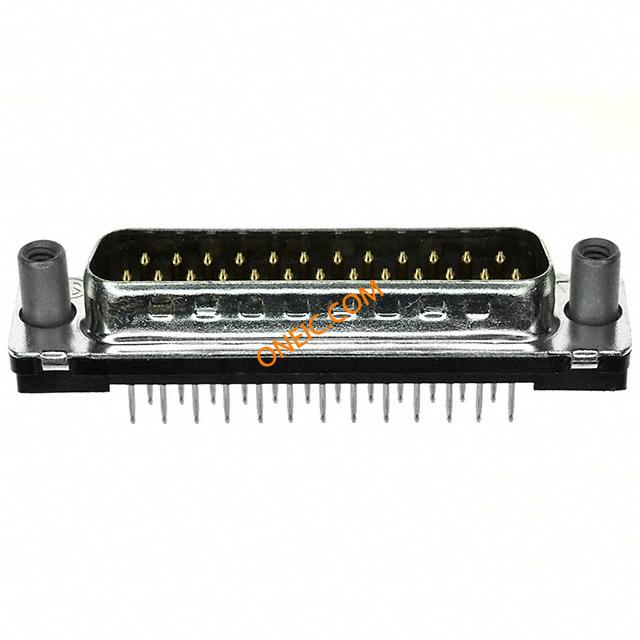

点击放大查看
1-5745968-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25 PLUG SP/FMS SCRLK Standard Board Mount Connectors CONN D-SUB PLUG VERT 25POS Standard Board Mount Connectors Product Highlights:25 PositionsHousing Gender = PlugPCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 PLUG SP/FMS SCRLK |
| 分类 |
商业参数
| 标准包装规格 | 10 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 母端螺钉锁，固定 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 3 | 包装方式 | Tube |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 绝缘类型 | Insulated | 引脚样式 | Round |
| 外壳尺寸 | 3 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Vertical |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] | 连接器样式 | D-Sub |
| 插入件材料 | 黄铜 | 锁定特性 | Female Screwlocks, Fixed |
| 外形（宽 x 高） | Standard | 屏蔽材料 | 钢 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 安装特性 | 安装孔 | 包装数量 | 10 |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | With | 端接样式 | Solder |
| 连接器颜色 | None | 外径 | .66 mm [ .026 in ] |
| 触点数 | 25 | 绝缘材料 - 类型 | Thermoplastic, Glass Filled |
| 位数 | 25 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.07 [.121] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 4.32 [0.170] | 接触镀层厚度 | Flash |
| 螺钉材料 - 镀层 | Zinc | 触点材料 - 镀层 | 黄铜 |
| 外壳与棱镜材料 | 否 | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 连接器性别 | Male |
| 系列 | HD-20 | 产品特性 | Grounding Indents |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | 是 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 – 3.18 mm [ .093 – .125 in ] |
