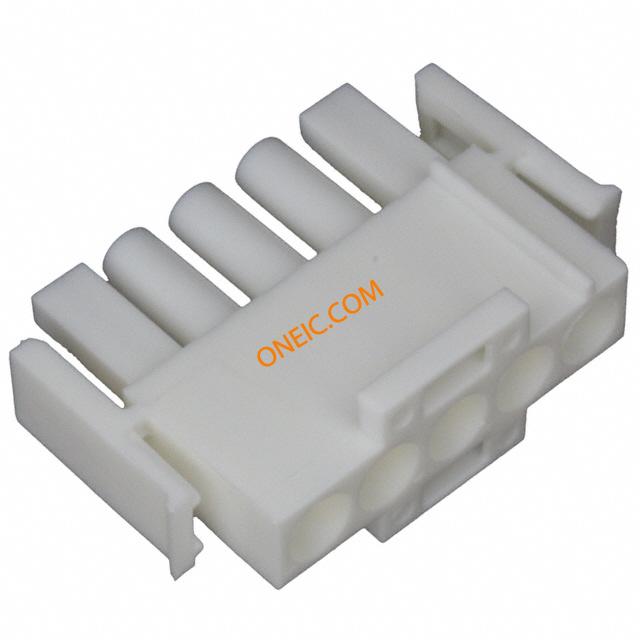

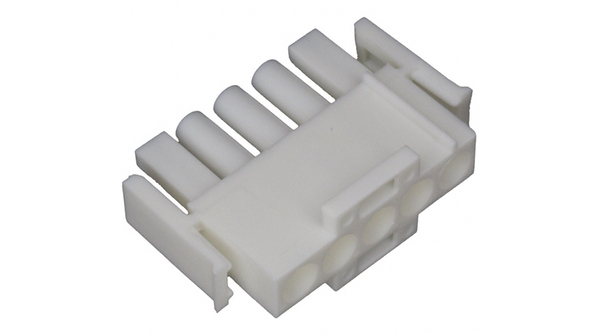

350809-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 5 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5POS 94V-0 UNI-MATE 5 way white plug housing Pin & Socket Connectors PLUG HOUSE 5 POS Conn Housing PL 5 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Plug;Nylon;White;19A Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:5; 600V Crimp housing 6.35 mm Poles 5 MATE-N-LOK Universal, 350809-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 公 压接连接器外壳 05P UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | designed for any type of contacts |
机械参数
| 颜色 | Natural | 深度 | 27.43mm |
| 间距 | 6.35 mm | 宽度 | 14.73mm |
| 高度 | 14.73 mm | 重量 | 0.004 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 锁定特性 | lock |
| 材料表面处理 | :- | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | 30 |
| 尺寸/外形 | see | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Opaque | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
| 第一连接器安装特征 | 1x5 | ||
产品信息
| SPG | 30 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 插拔次数 | :50 | 工作温度 | -55C to 105C |
文档与媒体
相关型号
640466-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN MATE-N-LOK 5 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 5 P PCB VERT HEADER Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Nylon;Natural;19A;600VAC Pin header Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 640466-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 直 PCB 针座, 焊接端接, 19A , 通孔 05P UMNL PIN HDR ASSY V2 NATL
643405-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 05P UMNL PIN HDR ASS Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 5WAY 05P UMNL PIN HDR ASSY POL NATL
643406-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Power to the Board 5 P VERT. PCB HDR .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 15A Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,05PUMNLPINHDRASSYPOL94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 05P UMNL PIN HDR ASSY POL 94VO
640901-1
te connectivity / amp
Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 5P HDR ASSY UMNL Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, SOCKET, 5WAY Conn;Header;Socket;5Pos;UnivMATE-N-LOK;Vertical;White Socket; wire-board; female; 6.35mm; PIN:5; tinned; Pin layout:1x5 TE Connectivity Universal MATE-N-LOK 系列 5路 6.35mm节距 直 PCB 插座 , 焊接端接, 19A, 通孔 05P UMNL SOK HDR ASSY 94VO
643232-1
te connectivity / amp
Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS RTANG .250 TIN Pin & Socket Connectors 5P HDR ASSY R/A 94VO Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL HDR ASSY R/A 94VO
640900-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Headers & Wire Housings 5 P PCB VERT. HEADER Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 5WAY UNIVM-N-LHEADER,05PUMNLPINHDRASSY94VO Socket; wire-board; male; 6.35mm; PIN:5; tinned; Pin layout:1x5 sale 05P UMNL PIN HDR ASSY 94VO
1-480764-0
te connectivity / amp
Conn Housing RCP 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 5POS 94V-2 UNI-MATE Housing,receptacle,free hanging,5way Pin & Socket Connectors CAP HOUSE 5 POS Conn Housing RCP 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Receptacle(Cap);Nylon;19A Receptacle housing Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 1-480764-0, TE Connectivity 05P UMNL CAP HSG NATL
640901-3
te connectivity / amp
Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT UMNL NATL Power to the Board HDR SKT 1X05C VRT V0 Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONN HEADER 5POS 05P UMNL HDR ASSY 94VO LF
350810-1
te connectivity / amp

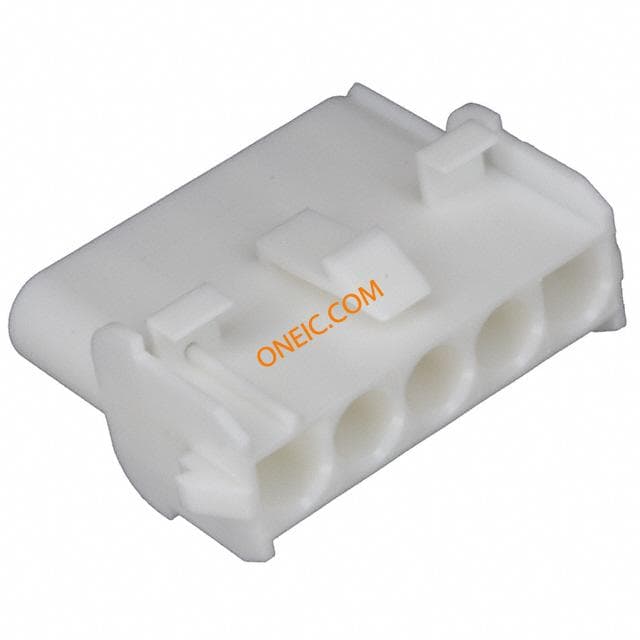

Conn Housing RCP 5 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 5POS 94V-0 UNI-MATE 5 way white receptacle housing Pin & Socket Connectors CAP HOUSE 5 POS Conn Housing RCP 5 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Receptacle(Cap);Nylon;White Plug/socket; wire-wire; male/female; w/o terminals; 6.35mm; PIN:5 Receptacle housing 6.35 mm Poles 5 MATE-N-LOK Universal, 350810-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 母 压接连接器外壳 05P UMNL CAP HSG
1-350949-0
te connectivity / amp
Conn Wire to Board HDR 5 POS 6.35mm Solder RA Thru-Hole .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS UNIV-MNL R/A Power to the Board HDR ASSY R/A 5P Conn Wire to Board HDR 5 POS 6.35mm Solder RA Thru-Hole Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL HDR ASSY R/A V2 NATL
480764-9
te connectivity / amp

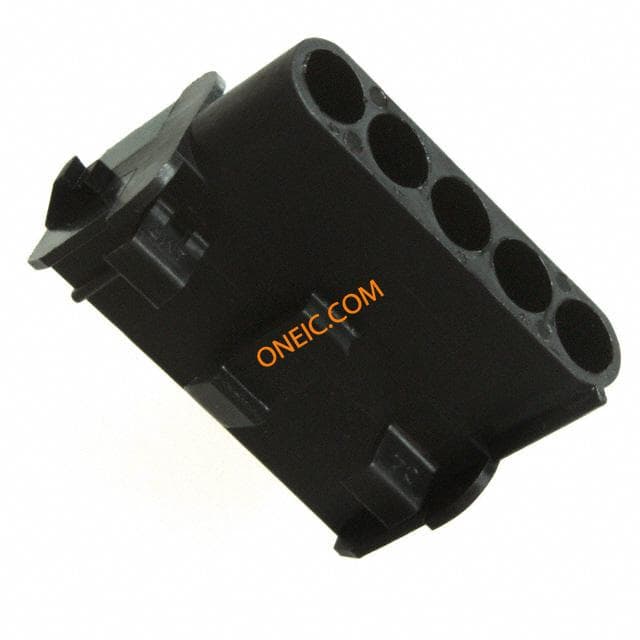

Conn Housing RCP 5 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 5POS 94V-2 BLK Pin & Socket Connectors 5P CAP HSG BLK .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL CAP HSG BLK
