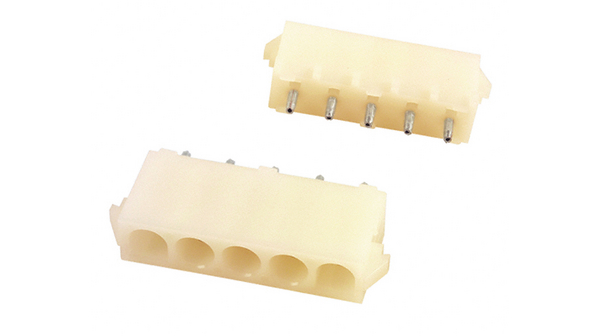

640466-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN MATE-N-LOK 5 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 5 P PCB VERT HEADER Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Nylon;Natural;19A;600VAC Pin header Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 640466-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 直 PCB 针座, 焊接端接, 19A , 通孔 05P UMNL PIN HDR ASSY V2 NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 工作电压 | :600V | 接触电阻 | :3.5mohm |
| 介电强度 | :2900V | 最大额定电流 | 19A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :6.35mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 5 | 接触件端接 | :Through Hole Vertical |
| 位数 | 5 | 安装孔直径 | :1.8mm |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号
770016-1
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5 POS UMNL-II (2PC) Pin & Socket Connectors 5P PLUG HOUSING Conn Housing PL 5 POS 6.35mm Crimp ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug;housing;Universal-Mate-N-LokII;In-Line;Kit 05P UMNLII IN-LNE PLUG HSG KIT
926895-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 24-18AWG MATE-N-LOK Mate-N-Lok socket contact,24-18awg Power to the Board SOCKET 24-18 AWG 926895-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP SOCKET, PK100 Mate-N-Loksocketcontact,24-18awg Contact; female; 0.2÷0.8mm2; Universal MATE-N-LOK; tinned; 19A Crimp socket Female 24...18 AWG, 926895-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 UNIVERSAL M-N-L SOCKET
480763-2
te connectivity / amp

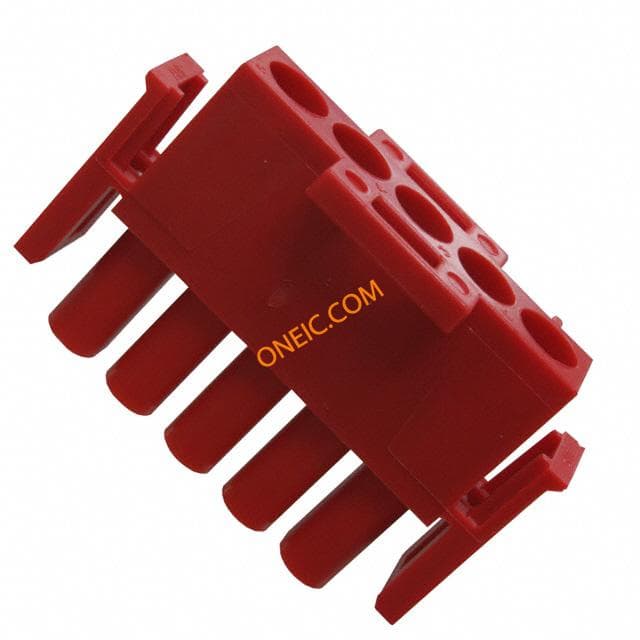

Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 5POS 94V-2 RED Jones Plugs & Sockets PLUG HOUSE 5 POS RED UL94V-2 Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL PLUG HSG RED
350809-1
te connectivity / amp

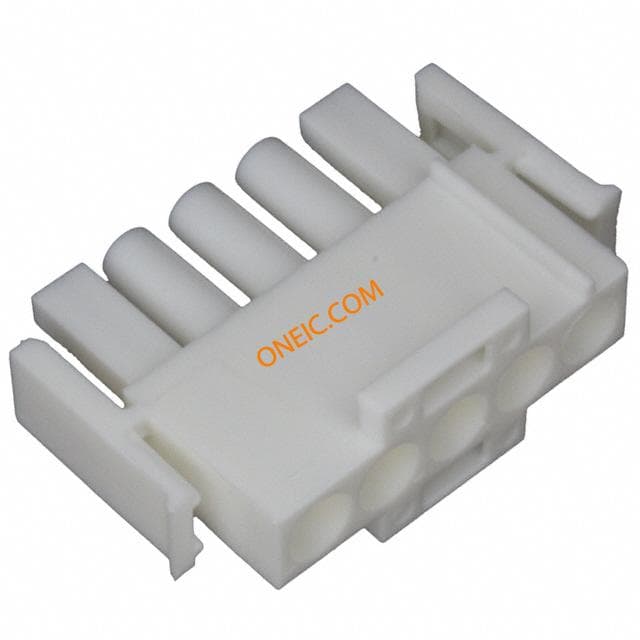

Conn Housing PL 5 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5POS 94V-0 UNI-MATE 5 way white plug housing Pin & Socket Connectors PLUG HOUSE 5 POS Conn Housing PL 5 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Plug;Nylon;White;19A Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:5; 600V Crimp housing 6.35 mm Poles 5 MATE-N-LOK Universal, 350809-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 公 压接连接器外壳 05P UMNL PLUG HSG
1-480764-0
te connectivity / amp
Conn Housing RCP 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 5POS 94V-2 UNI-MATE Housing,receptacle,free hanging,5way Pin & Socket Connectors CAP HOUSE 5 POS Conn Housing RCP 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Receptacle(Cap);Nylon;19A Receptacle housing Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 1-480764-0, TE Connectivity 05P UMNL CAP HSG NATL
1-480763-0
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 5 POS Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:5; 600V Crimp housing Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 1-480763-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 公 压接连接器外壳 05P UMNL PLUG HSG NATL
926896-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONTACT PIN MAT-N-LOK 18-24AWG Mate-N-Lok pin contact,24-18awg Power to the Board PIN 24-18 AWG 926896-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, MATE-N-LOK, PK100 Mate-N-Lokpincontact,24-18awg Contact; male; 0.2÷0.8mm2; Universal MATE-N-LOK; tinned; crimped CONTACT 18-24AWG Crimp pin Male 18...24 AWG, 926896-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 压接接线端子, 镀锡触点 UNIV.M-N-L.PIN
926894-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-N-Lok pin contact,20-14awg Power to the Board PIN 20-14 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20AWG TO 14AWG, CRIMP Contact,Pin,UniversalMATE-N-LOK,20-14AWG Contact; male; 0.5÷2.1mm2; 20÷14AWG; Universal MATE-N-LOK; tinned Crimp pin Male 14...20 AWG, 926894-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 压接接线端子 UNIV.M-N-L.PIN
926893-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Mate-N-Lok socket contact,20-14awg Power to the Board UNIV.M-N-L.SOCKET 926893-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20AWG TO 14AWG, CRIMP Contact; female; 0.5÷2.1mm2; 20÷14AWG; Universal MATE-N-LOK; 19A Crimp socket Female 20...14 AWG, 926893-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接 UNIV.M-N-L.SOCKET CONTACT
480763-9
te connectivity / amp

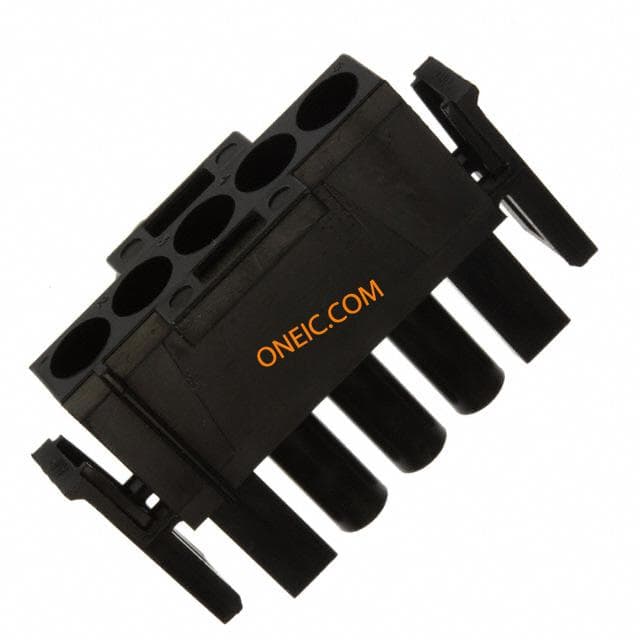

Conn Housing PL 5 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 5POS 94V-2 BLK Pin & Socket Connectors 5P PLUG HSG BLK Conn Housing PL 5 POS 6.35mm Crimp ST Panel Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL PLUG HSG BLK
