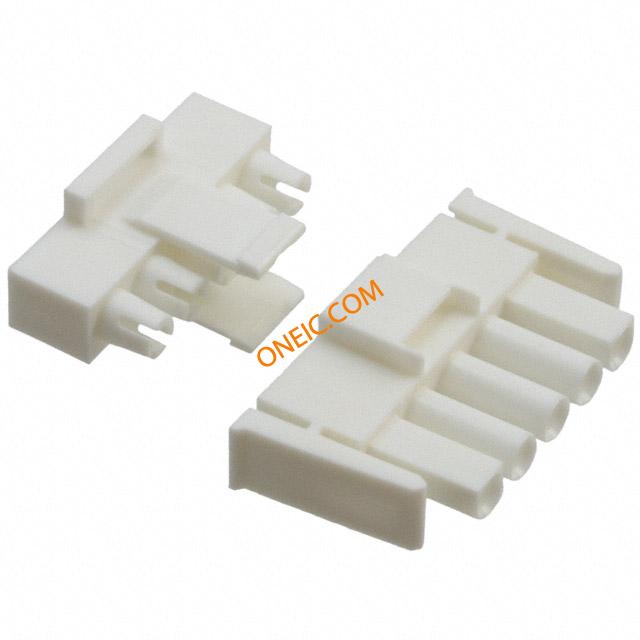

770016-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 5 POS 6.35mm Crimp ST .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5 POS UMNL-II (2PC) Pin & Socket Connectors 5P PLUG HOUSING Conn Housing PL 5 POS 6.35mm Crimp ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug;housing;Universal-Mate-N-LokII;In-Line;Kit 05P UMNLII IN-LNE PLUG HSG KIT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 31 A | ||
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 排数 | 1 | 封装形式 | Plug |
| 壳体材料 | Polyamide (PA) | 包装数量 | 1 |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | 兼容外壳尺寸（如TM-700等） | 标准通用 MATE-N-LOK 连接器 |
| 典型触点布局 | 直插式 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Plug Housings |
| 装配配置 | Kit | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 120 °C [ -67 – 248 °F ] |
文档与媒体
相关型号
640466-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN MATE-N-LOK 5 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 5 P PCB VERT HEADER Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Nylon;Natural;19A;600VAC Pin header Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 640466-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 直 PCB 针座, 焊接端接, 19A , 通孔 05P UMNL PIN HDR ASSY V2 NATL
643405-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 05P UMNL PIN HDR ASS Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 5WAY 05P UMNL PIN HDR ASSY POL NATL
643406-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Power to the Board 5 P VERT. PCB HDR .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 15A Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,05PUMNLPINHDRASSYPOL94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 05P UMNL PIN HDR ASSY POL 94VO
640901-1
te connectivity / amp
Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 5P HDR ASSY UMNL Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, SOCKET, 5WAY Conn;Header;Socket;5Pos;UnivMATE-N-LOK;Vertical;White Socket; wire-board; female; 6.35mm; PIN:5; tinned; Pin layout:1x5 TE Connectivity Universal MATE-N-LOK 系列 5路 6.35mm节距 直 PCB 插座 , 焊接端接, 19A, 通孔 05P UMNL SOK HDR ASSY 94VO

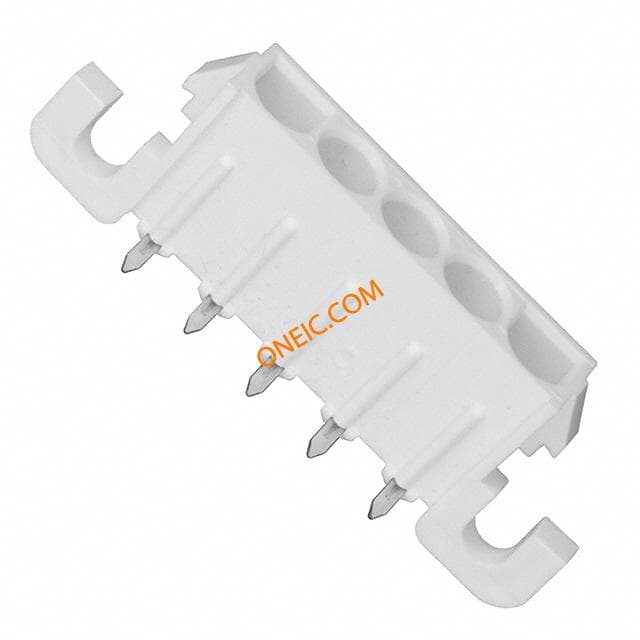

643232-1
