640466-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Pin & Socket Connectors 5P VERT PIN HEADER 100 .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS U-M-N-L GOLD .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
机械参数
| 颜色 | Natural | 间距 | 0.250" (6.35mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 位数 | 5 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 系列 | Universal Mate-N-Lok | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
770016-1
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5 POS UMNL-II (2PC) Pin & Socket Connectors 5P PLUG HOUSING Conn Housing PL 5 POS 6.35mm Crimp ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug;housing;Universal-Mate-N-LokII;In-Line;Kit 05P UMNLII IN-LNE PLUG HSG KIT

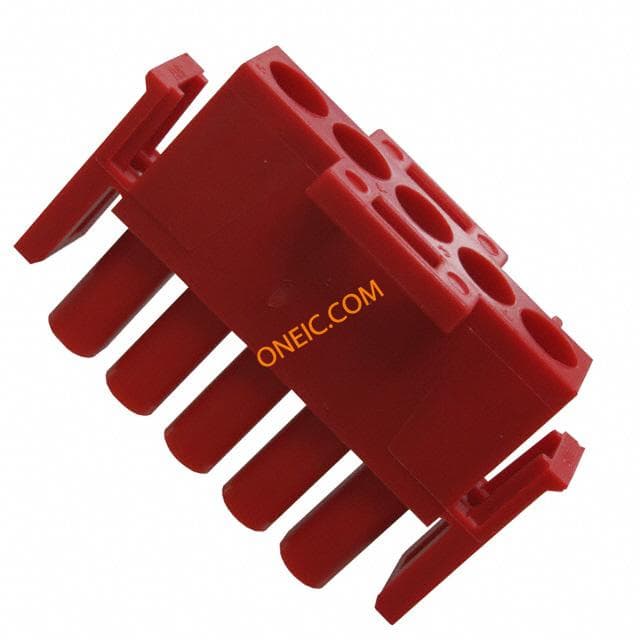

480763-2
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 5POS 94V-2 RED Jones Plugs & Sockets PLUG HOUSE 5 POS RED UL94V-2 Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL PLUG HSG RED

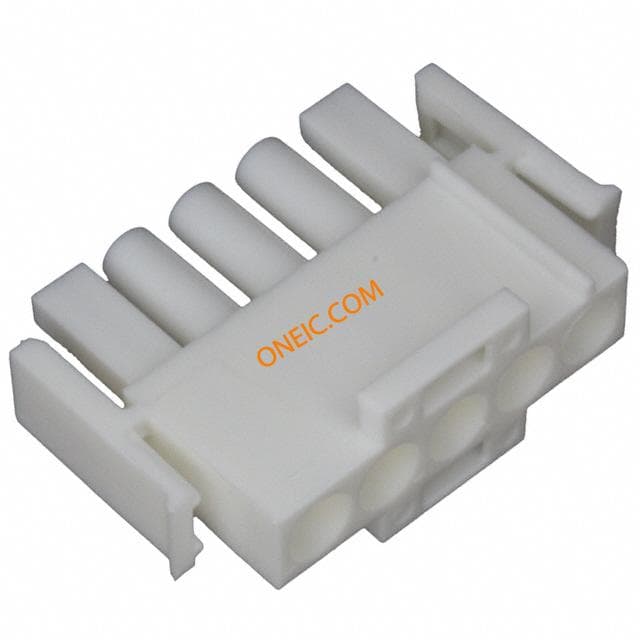

350809-1
te connectivity / amp
Conn Housing PL 5 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5POS 94V-0 UNI-MATE 5 way white plug housing Pin & Socket Connectors PLUG HOUSE 5 POS Conn Housing PL 5 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Plug;Nylon;White;19A Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:5; 600V Crimp housing 6.35 mm Poles 5 MATE-N-LOK Universal, 350809-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 公 压接连接器外壳 05P UMNL PLUG HSG
1-480763-0
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 5 POS Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:5; 600V Crimp housing Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 1-480763-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 公 压接连接器外壳 05P UMNL PLUG HSG NATL

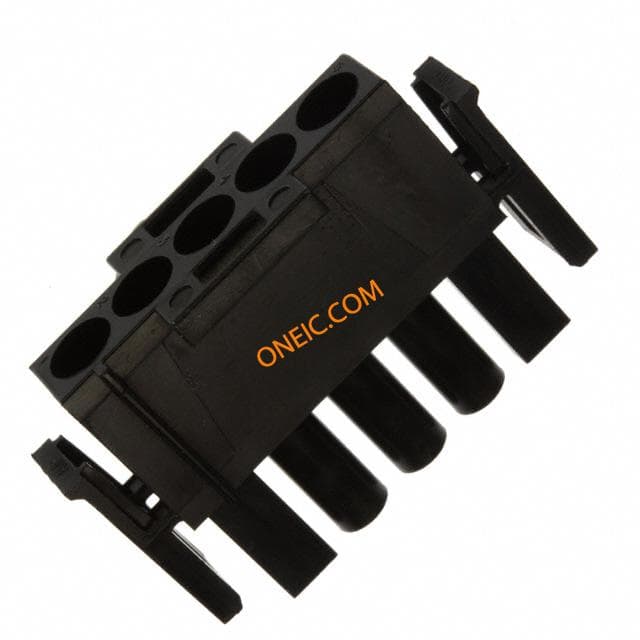

480763-9
