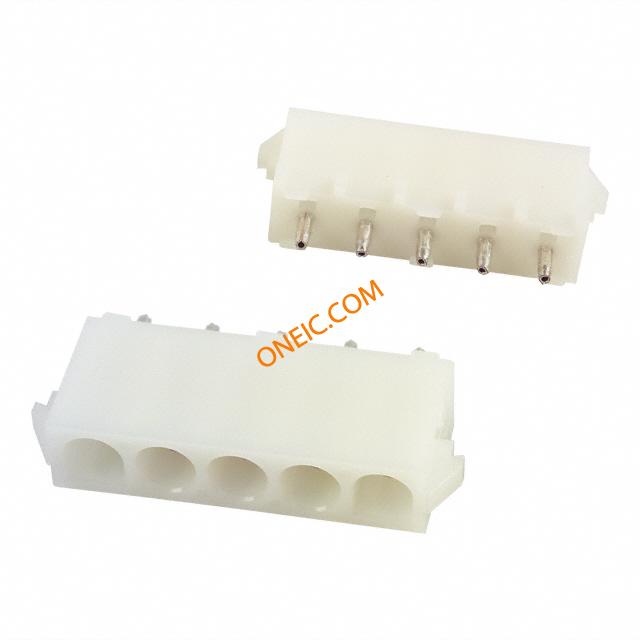

640900-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Headers & Wire Housings 5 P PCB VERT. HEADER Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 5WAY UNIVM-N-LHEADER,05PUMNLPINHDRASSY94VO Socket; wire-board; male; 6.35mm; PIN:5; tinned; Pin layout:1x5 sale 05P UMNL PIN HDR ASSY 94VO |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V |
| 开关功能 | Latched | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :2900V/m |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 重量 | 0.002 |
| 材料（通用） | :Clear nylon | 包装方式 | Bulk |
| 方向 | straight | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :6.35mm |
| 柱间距 | 6.35mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 锁定特性 | lock |
| 材料表面处理 | :- | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 主要材料 | InterconnectSystem | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 接触件端接 | :Through Hole Vertical |
| 位数 | 5 | 安装孔直径 | :1.8mm |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 1x5 |
产品信息
| SPG | 100 | 类型 | Power |
| 连接器性别 | HDR | 系列 | Mini Universal Mate-N-Lok |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 适配器系列 | Universal MATE-N-LOK | 端口数 | 1 Port |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
