点击放大查看

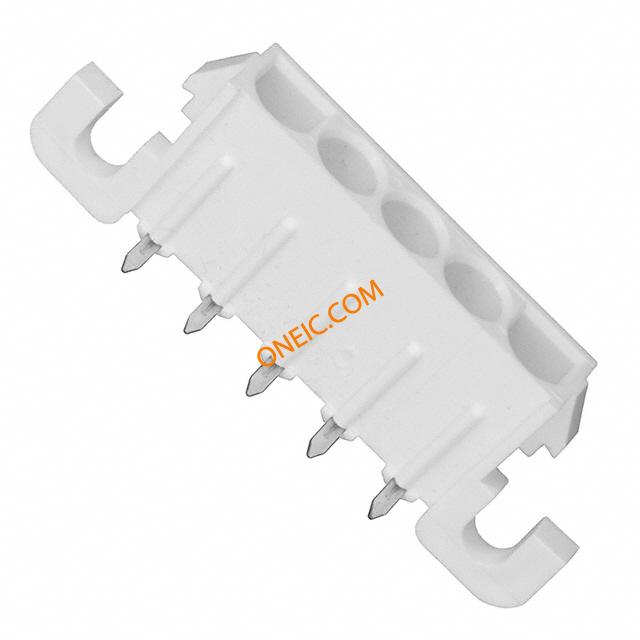

643232-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS RTANG .250 TIN Pin & Socket Connectors 5P HDR ASSY R/A 94VO Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL HDR ASSY R/A 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 深度 | 17.27 mm |
| 间距 | 6.35 mm | 高度 | 9.14 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 端接方式 | Solder | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Header | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | PCB |
| 引脚数 | 5 | 排数 | 1 |
| 封装形式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 50.67 mm |
| 安装特性 | 安装孔 | 包装数量 | 140 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | 插座 |
| 第一触头极性 | Socket (Female) | 触点数 | 5 |
| 位数 | 5 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.7 mm [ .146 in ] |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Universal MATE-N-LOK, AMP | 产品子类型 | Receptacle Housings |
| 端口数 | 1 Port | 输出配置 | Through Hole, Right Angle |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | 3.18 mm [ .125 in ] | ||
