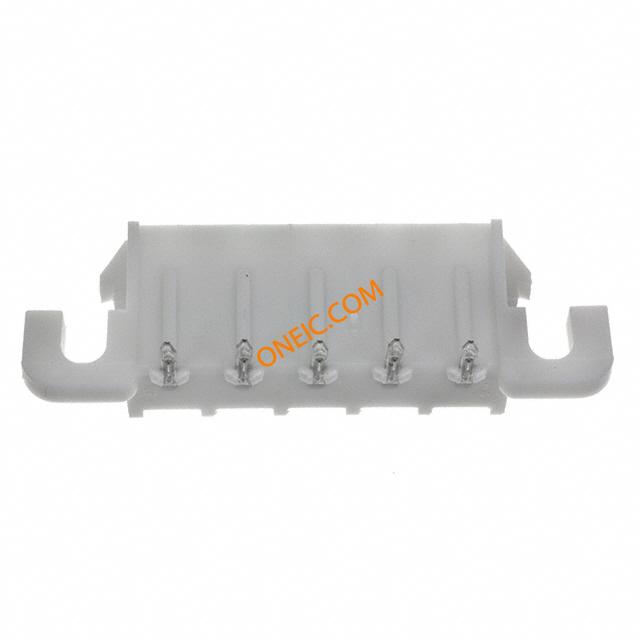

3-643232-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS R/A .250 GOLD Pin & Socket Connectors 5P HDR ASSY R/A 94VO .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL HDR ASSY R/A 94VO LF |
| 分类 |
商业参数
| 标准包装规格 | 140 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 140 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 引脚数 | 5 |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 安装特性 | 安装孔 |
| 包装数量 | 140 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 位数 | 5 |
| 外壳尺寸-插件 | 母端, 母端 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.18 mm [ .125 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Mate-N-Lok | 产品子类型 | Receptacle Housings |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
