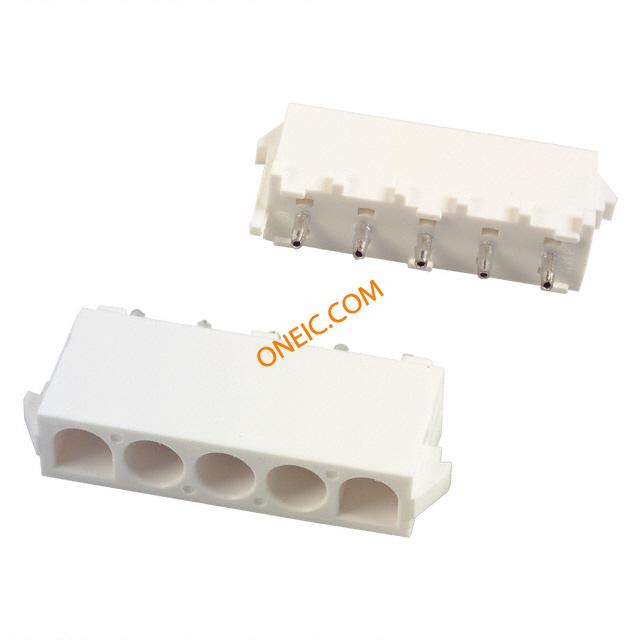

643406-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Power to the Board 5 P VERT. PCB HDR .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 15A Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,05PUMNLPINHDRASSYPOL94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 05P UMNL PIN HDR ASSY POL 94VO |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Pre Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 第一触头极性 | Pin (Male) | 触点数 | 5 |
| 位数 | 5 | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Universal MATE-N-LOK | 产品特性 | Board Guide |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 85C | 结工作温度 | 85C |
