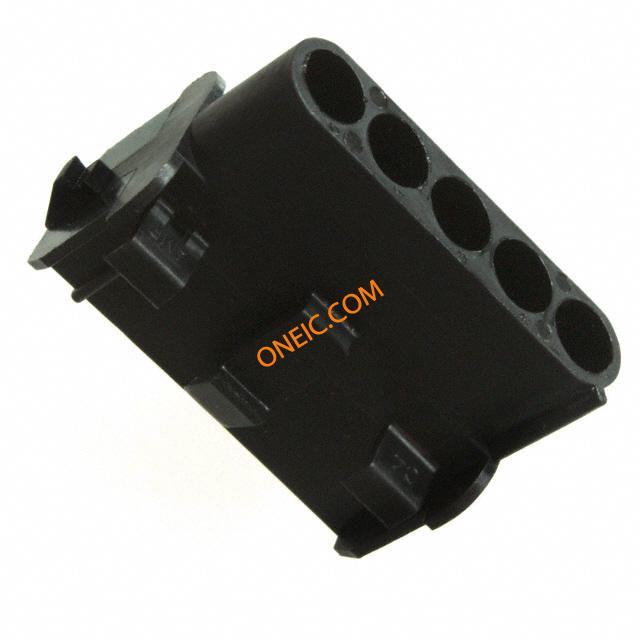

480764-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 5POS 94V-2 BLK Pin & Socket Connectors 5P CAP HSG BLK .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL CAP HSG BLK |
| 分类 |
商业参数
| 其他名称 | A97526 | 标准包装规格 | 1 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | Black | 间距 | 6.35 mm |
| 宽度 | 7.62 | 长度 | 33.02 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 本体尺寸 | .76 – 2.29 mm [ .76 – 2.29 in ] |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | PCB |
| 排数 | 1 | 封装形式 | Receptacle |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
| 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插头 | 典型触点布局 | 直插式 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Headers |
| 装配配置 | Without | ||
