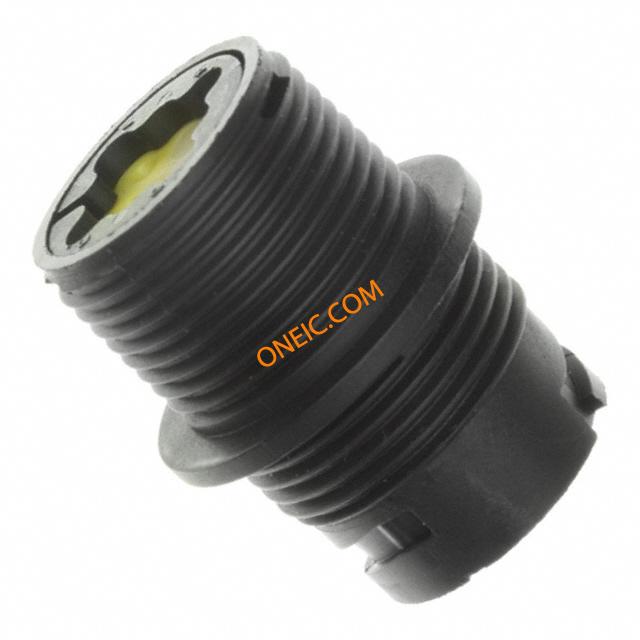

点击放大查看
1445823-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS ST Standard Circular Connector RCPT SIZE 11 6 POS FLNG MT STD KEY Miniature CPC (Circular Plastic Connector) CONN RECEPT 11-6POS PANEL MOUNT Conn Housing RCP 6 POS ST Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector REC,11-6,FLNG MT,SM INS,STD KE |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not reviewed for lead free solder process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 密封型 | 密封 | 外形尺寸(长x宽) | 11 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳尺寸 | 11 | 导线线规 | 18 AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 3/4-20 UNEF-2A | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 壳体材料 | Thermoplastic |
| 包装数量 | 100 | 端接样式 | 插针 |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 6 | 绝缘直径 | 0.89 â 1.50 [0.035 â 0.059] |
| 位数 | 6 | 外壳尺寸-插件 | 11-6 |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mini CPC |
| 产品子类型 | Connectors | 其他规格 | 标准 |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
