1859577

点击放大查看

1859577

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 8P 5.08mm 180 DEG Conn Shrouded Header HDR 8 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 8POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 8-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;8Pole;5.08mmPitch;COMBICON
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers商标名COMBICON Control
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
标准UL,cULRecognized认证机构UL,CUL

电气参数

电流12A电压300V
额定电压200 V极数8Poles
输出电流12A标称电压200V
最大额定电流12 A最小输入电压320V
保护电压（VP）（2416）4kV

机械参数

颜色Green深度8.6
间距0.200" (5.08mm)高度12
重量5.326368 oz包装方式Bulk
引脚样式180 Deg端接方式Press Fit
孔径1.75mm外壳颜色Green
安装类型Straight接触镀层Tin
安装样式Press In / Press Fit排数1
壳体材料Polybutylene Terephthalate总长度42.64
主要材料PCB尺寸/外形42.64mmLx15mmWx22mmH
插针孔直径5.08mm排针方向Vertical
触点数8位数8
接线端子类型Header, Male Pins, Shrouded (4 Side)绝缘材料 - 材质PBT
法兰下方引脚尺寸1.7mm

产品信息

类型Shrouded Header级别SingleLevel
连接器性别HDR系列EMSTBVA
制造商全称COMBICON层数1
基础产品编号EMSTBVA2,5/8-G-5,08每层位数8

文档与媒体

PDF 文档
1859577

相关型号

暂无图片

1777701

Phoenix Contact

Pluggable Terminal Blocks MVSTBR 2 5/ 8-ST-5 0 CONNECTOR TERMINAL BLOCKS TERM BLOCK PLUG 8POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 8-ST-5,08 BK MVSTBR25/8-ST-508BK

¥33.5920
详情
1873113

1873113

Phoenix Contact

Pluggable Terminal Blocks FKC 2 5/ 8-ST-5 08 Conn Spring Cage F 8 POS 5.08mm ST 12A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector FKC 2,5/ 8-ST-5,08 Conn;TermBlk;PCB;Plug;Springcage;8;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 8 路 母 绿色 直 插头, 电缆安装, 推入式端接

¥36.3800
详情
1809569

1809569

Phoenix Contact

Pluggable Terminal Blocks MSTBC 2.5/ 8-STZ- 5,08 Conn Wire to Wire F 8 POS 5.08mm Crimp ST Cable Mount TERM BLOCK PLUG 8POS STR 5.08MM MSTBC25/8-STZ-508

¥12.0360
详情
1769078

1769078

Phoenix Contact

Pluggable Terminal Blocks MSTBP 2.5/ 8-ST-5.08 Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/ 8-ST-5,08 MSTBP25/8-ST-508 Phoenix Contact COMBICON MSTBP 系列 5.08mm 节距 8 路 母 绿色 插头, 螺钉端接

¥43.7920
详情
1777345

1777345

Phoenix Contact

プラグ着脱可能ターミナルブロック FRONT-MSTB 2 5/ 8-ST Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 250V Pluggable Terminal Blocks FRONT-MSTB 2 5/ 8-ST Conn Terminal Blocks F 8 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/8-ST-508

¥102.8840
详情

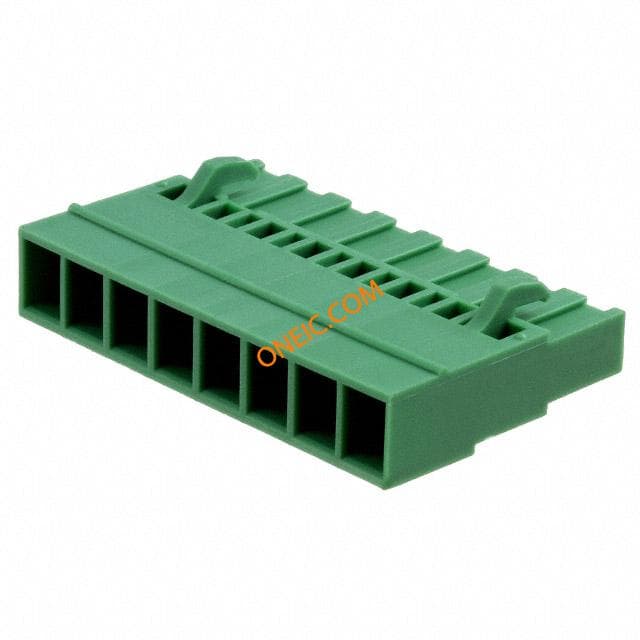

1808874

1808874

Phoenix Contact

プラグ着脱可能ターミナルブロック MSTBC 2 5/ 8-ST-5 08 Conn Terminal Block F 8 POS 5.08mm Crimp ST Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector MSTBC 2,5/ 8-ST-5,08 Pluggable Terminal Blocks MSTBC 2 5/ 8-ST-5 08 Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 8, Connection type: Crimp ... Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 8, Connection type: Crimp connection, Color: green Connector;PCB;12A;320V;8Pos.;CrimpConnection;MSTBC2,5/8-ST-5,08

¥12.5800
详情
1792304

1792304

Phoenix Contact

Pluggable Terminal Blocks 5.08 8P PLUG 90DEG Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 8POS 5.08MM Conn Terminal Blocks F 8 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 8WAY Conn;TermBlk;Plug;Screw;8;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 8 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥18.1200
详情
1792812

1792812

Phoenix Contact

Pluggable Terminal Blocks 5.08 8P PLUG 270DEG Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 8POS 5.08MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 250V Conn Terminal Blocks F 8 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 8WAY Conn;TermBlk;Plug;Screw;8;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 8 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V

¥27.1800
详情

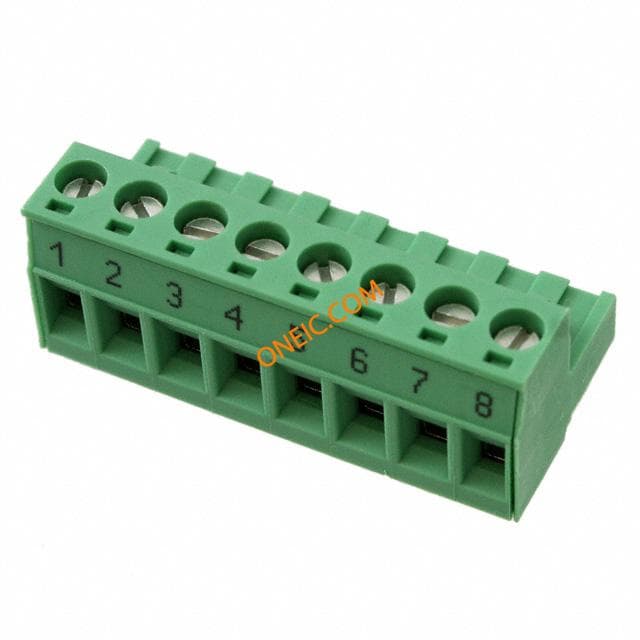

1758393
