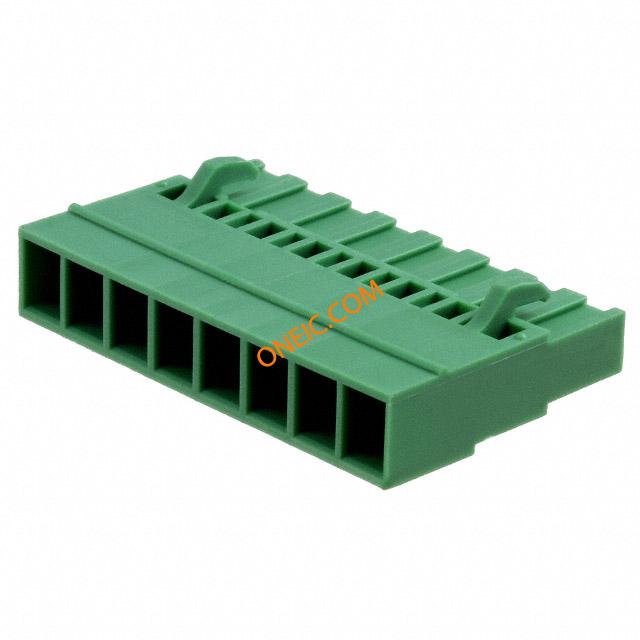

1808874

点击放大查看

1808874

制造商
Phoenix Contact GmbH & Co. KG
描述プラグ着脱可能ターミナルブロック MSTBC 2 5/ 8-ST-5 08 Conn Terminal Block F 8 POS 5.08mm Crimp ST Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector MSTBC 2,5/ 8-ST-5,08 Pluggable Terminal Blocks MSTBC 2 5/ 8-ST-5 08 Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 8, Connection type: Crimp ... Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 8, Connection type: Crimp connection, Color: green Connector;PCB;12A;320V;8Pos.;CrimpConnection;MSTBC2,5/8-ST-5,08
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Plugs商标名COMBICON Control
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant

电气参数

电流10A电压300V
额定电压320 V最大额定电流12 A
最小输入电压320V

机械参数

颜色Green深度25
间距0.200" (5.08mm)高度10
包装方式Bulk导线线规14-20 AWG
端接方式Crimp安装类型Cable Mount
排数1插头进线方向180°
壳体材料Polyamide总长度40.39
端接样式Crimp触点数8
位数8接线端子类型Plug Housing for Female Sockets
线规或范围 - AWG20-14

产品信息

类型Terminal Block连接器性别F
系列MSTBC产品特性Retention Latches (Non-Wire Side)
层数1每层位数8
