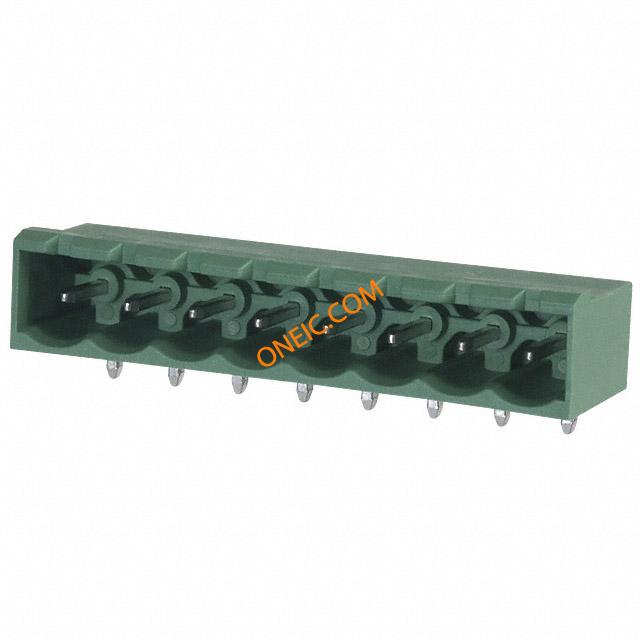

1757307

点击放大查看

1757307

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 5.08 8P HEADER 90DEG Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 8WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 8路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers交货时间20 Days
商标名COMBICON Control子类别Connector Headers and PCB Receptacles
零件号别名2.5/ 8-G-5.08 MSTBA产品类别Pluggable Terminal Blocks
标准包装数量100工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant标准EN-VDE
海关税号85366990认证机构UL,CUL,CSA
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
量程（°/s）:PHOENIX - MSTBA Series额定电压250 V
极数8Poles输出电流12A
标称电压250V工作电压:320V
最大额定电流12 A最小输入电压250V@IEC|300V@UL
保护电压（VP）（2416）4kV

机械参数

颜色Green深度12
间距0.200" (5.08mm)高度8.6
重量5.396916 oz包装方式Bulk
端接方式Solder引脚间距:5.08mm
孔径1.4mm外壳颜色Green
安装类型Right Angle接触镀层Tin
安装样式SolderMount排数1
材料表面处理:-触头材料:-
壳体材料Polybutylene Terephthalate总长度42.64
主要材料PCB尺寸/外形35.56mm
插针孔直径5.08mm端接样式Through Hole
排针方向90°, Right Angle触点数8
接触件端接:Through Hole Right Angle位数8
接线端子类型Header, Male Pins, Shrouded (4 Side)绝缘材料 - 材质PBT
安装孔直径:1.4mm法兰下方引脚尺寸1x1mm

产品信息

类型Shrouded Header级别SingleLevel
连接器性别HDR系列MSTBA
产品特性90Deg制造商全称COMBICON
行业别名MSTBA 2, 5/ 8-G-5, 08层数1
基础产品编号MSTBA2,5/8-G-5,08每层位数8
