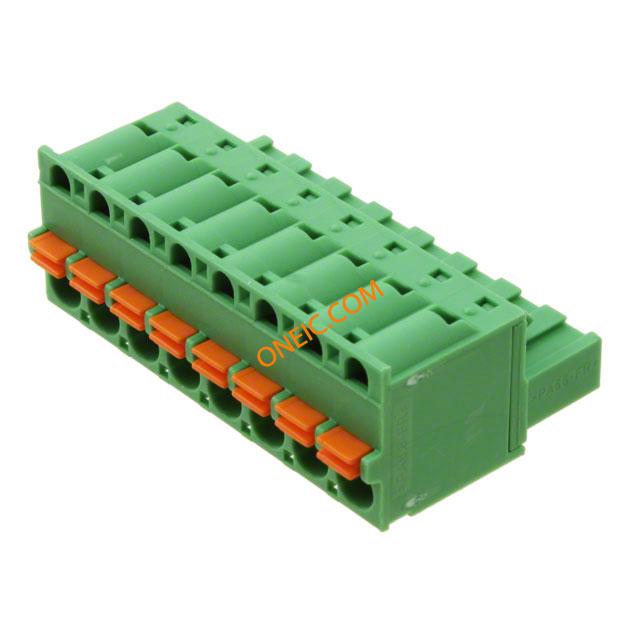

1873113

点击放大查看

1873113

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks FKC 2 5/ 8-ST-5 08 Conn Spring Cage F 8 POS 5.08mm ST 12A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector FKC 2,5/ 8-ST-5,08 Conn;TermBlk;PCB;Plug;Springcage;8;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 8 路 母 绿色 直 插头, 电缆安装, 推入式端接
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Plugs商标名COMBICON Control
零件号别名2,5/8-ST-5.08 FKC产品类别Pluggable Terminal Blocks
标准包装数量50工厂包装数量50

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
抗辐射加固No材料阻燃等级UL 94 V-0

电气参数

电流10A电压300V
额定电压250 V输出电流12A
供电电压300V最大额定电流12 A
最小输入电压320V最小供电电压250V

机械参数

颜色Green深度25.6 mm
间距5.08 mm宽度25.6mm
高度15 mm重量4.867807 oz
材料（通用）聚酰胺包装方式Bulk
壳体颜色Green导线线规12-26 AWG
方向直端接方式Screwless - Push In
安装类型Straight连接器类型母座
接触镀层Tin排数1
插头进线方向180°触头材料Sn
壳体材料Polyamide总长度41.26 mm
端接排数推入式电缆端接方式180°
插针孔直径5.08mm端接样式Spring Cage
触点数8位数8
接线端子类型Plug, Female Sockets每层极数8
线规或范围 - AWG24-12

产品信息

类型Wire to Wire连接器性别F
系列FKC产品特性Retention Latches (Non-Wire Side)
主要用途Retention Latches (Non-Wire Side)层数1
每层位数8输出配置Free Hanging (In-Line)
