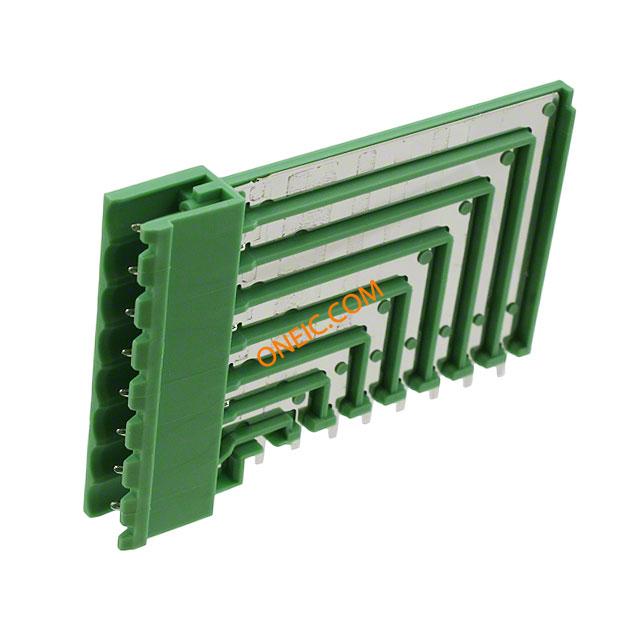

点击放大查看
1847165
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MSTBO 2 5/ 8-GR-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBO 2,5/ 8-GR-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;COMBICON |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | UL,CUL,CSA | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 250 V | 极数 | 8Poles |
| 最大额定电流 | 8 A | 最小输入电压 | 320V |
机械参数
| 颜色 | Green | 深度 | 59.3 |
| 间距 | 5.08 mm | 高度 | 40.64 |
| 重量 | 5.538012 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 8.6 |
| 主要材料 | PCB | 插针孔直径 | 5.08mm |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle, Vertical |
| 触点数 | 8 | 位数 | 8 |
| 接线端子类型 | Header, Male Pins, Shrouded (2 Side) | 端接长度 | 5.08mm |
产品信息
| 类型 | Wire to Board | 级别 | SingleLevel |
| 连接器性别 | HDR | 系列 | MSTBO |
| 产品特性 | 90Deg | 制造商全称 | COMBICON |
| 层数 | 1 | 基础产品编号 | MSTBO2,5/8-GR-5,08 |
| 每层位数 | 8 | ||
