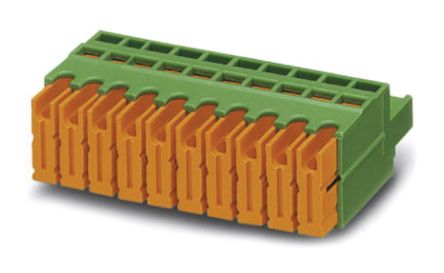

1883310
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08 8P PLUG IDC Conn Terminal Block F 8 POS 5.08mm ST Cable Mount 10A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector QC 1/ 8-ST-5,08 Conn Terminal Blocks F 8 POS 5.08mm ST Cable Mount 10A QC1/8-ST-508 Phoenix Contact COMBICON QC 系列 5.08mm 节距 8 路 母 绿色 插头, IDC端接 |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 10A | 电压 | 300V |
| 额定电压 | 500 V | 供电电压 | 300V |
| 最大额定电流 | 10 A | 最小输入电压 | 630V |
| 最小供电电压 | 630V | ||
机械参数
| 颜色 | Green | 深度 | 28.2 mm |
| 间距 | 0.200" (5.08mm) | 高度 | 15 mm |
| 重量 | 0.499479 oz | 材料（通用） | 聚酰胺，镀锡 |
| 包装方式 | Bulk | 导线线规 | 18-22 AWG |
| 端接方式 | IDC | 安装类型 | Straight |
| 连接器类型 | 母座 | 接触镀层 | Tin |
| 安装样式 | Cable | 排数 | 1 |
| 插头进线方向 | 180° | 壳体材料 | Polyamide |
| 总长度 | 41.46 | 端接排数 | IDC |
| 电缆端接方式 | 180° | 端接样式 | IDC / IDT |
| 触点数 | 8 | 位数 | 8 |
| 接线端子类型 | Plug, Female Sockets | 每层极数 | 8 |
| 线规或范围 - AWG | 20-18 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | QC | 产品特性 | Retention Latches (Non-Wire Side) |
| 主要用途 | Retention Latches (Non-Wire Side) | 层数 | 1 |
| 每层位数 | 8 | 输出配置 | Free Hanging (In-Line) |
文档与媒体
相关型号
1735824
Phoenix Contact
Pluggable Terminal Blocks 8P 5.08MM 90 DEG HDR Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/ 8-G-5,08 MSTBW25/8-G-508
1847165
Phoenix Contact
Pluggable Terminal Blocks MSTBO 2 5/ 8-GR-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBO 2,5/ 8-GR-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;COMBICON
1741656
Phoenix Contact
Pluggable Terminal Blocks MSTBA 2.5/ 8-G-5.08 BK Misc Products TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBA 2,5/ 8-G-5,08 BK MSTBA25/8-G-508BK
1788787
Phoenix Contact

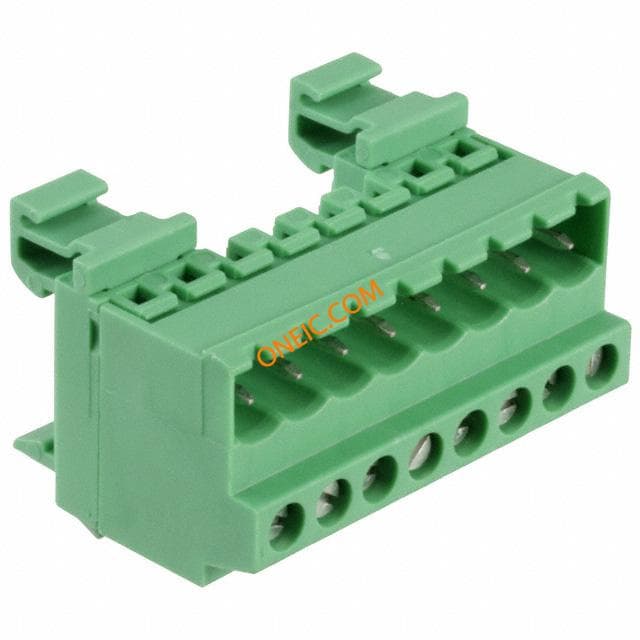

Pluggable Terminal Blocks MSTBVK 2 5/ 8-G-5 08 Conn Terminal Block HDR 8 POS 5.08mm Screw Cable Mount 12A CONN DIN RAIL 8POS 5.08MM Header for PCB plug connector MSTBVK 2,5/ 8-G-5,08 MSTBVK25/8-G-508 Phoenix Contact MSTBVK 系列 绿色 印刷电路板管座 , 12A, 630 V
