1786006

点击放大查看

1786006

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks ICV 2 5/ 8-G-5 08 Conn Wire to Board HDR 8 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 8POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,8way Conn;TermBlk;PCB;Header;SnglLvl;Sldr;8Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON ICV 系列 5.08mm节距 8路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers - Inverted商标名COMBICON Control
零件号别名2,5/ 8-G-5,08 ICV产品类别Pluggable Terminal Blocks
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
认证机构UL,CUL,CSA,CB,GOST,VDE-PZI材料阻燃等级UL 94 V-0

电气参数

电流10A电压300V
额定电压320 V极数8Poles
最大额定电流12A最小输入电压320V

机械参数

颜色Green深度10.2
间距0.200" (5.08mm)高度19
重量5.820204 oz包装方式Bulk
方向直端接方式Solder
外壳颜色Green安装类型Straight
接触镀层Tin排数1
触头材料Tin Plated壳体材料Polyamide
总长度42.64主要材料PCB
端接排数焊接插针孔直径5.08mm
端接样式Through Hole排针方向Vertical
触点数8位数8
接线端子类型Header, Female Sockets

产品信息

类型Wire to Board级别SingleLevel
连接器性别HDR系列ICV 2.5
产品特性Retention LatchesCAD图纸3D CAD Model
制造商全称COMBICON层数1
基础产品编号ICV2,5/8-G-5,08每层位数8

文档与媒体

PDF 文档
1786006

相关型号

1735824

1735824

Phoenix Contact

Pluggable Terminal Blocks 8P 5.08MM 90 DEG HDR Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/ 8-G-5,08 MSTBW25/8-G-508

¥16.3880
详情
1847165

1847165

Phoenix Contact

Pluggable Terminal Blocks MSTBO 2 5/ 8-GR-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBO 2,5/ 8-GR-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;COMBICON

¥20.7400
详情
1786239

1786239

Phoenix Contact

Pluggable Terminal Blocks IC 2 5/ 8-ST-5 08 5.08mm 8P HEADER Conn Terminal Block M 8 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block 8 Way, Screw Down, 250V Conn;TermBlk;PCB;Plug;Screw;8;5.08mm;24-12AWG;Green;12A;250V;M3 Phoenix Contact 8 路 无熔丝端子块, 螺钉拧紧端接, 320 V

¥53.5160
详情
1762431

1762431

Phoenix Contact

Pluggable Terminal Blocks 8P 5.08mm Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 8-G1-5,08 MDSTB25/8-G1-508 Phoenix Contact COMBICON MDSTB 系列 8路 5.08mm节距 PCB 接线端子块 , 焊接端接, 10A

¥41.8880
详情
0707057

0707057

Phoenix Contact

Pluggable Terminal Blocks DFK-MSTB 2.5/8-G Conn Shrouded Header HDR 8 POS 5.08mm Solder Lug ST Wall Mount PAN MNT HEADER 5.08 MM SOLD 8POS Phoenix Contact DFK-MSTB Series 5.08mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination Phoenix Contact COMBICON DFK-MSTB 系列 5.08mm节距 8路 (1排) 直 插头外壳, 焊接端接 , 壁挂式

¥36.3120
详情

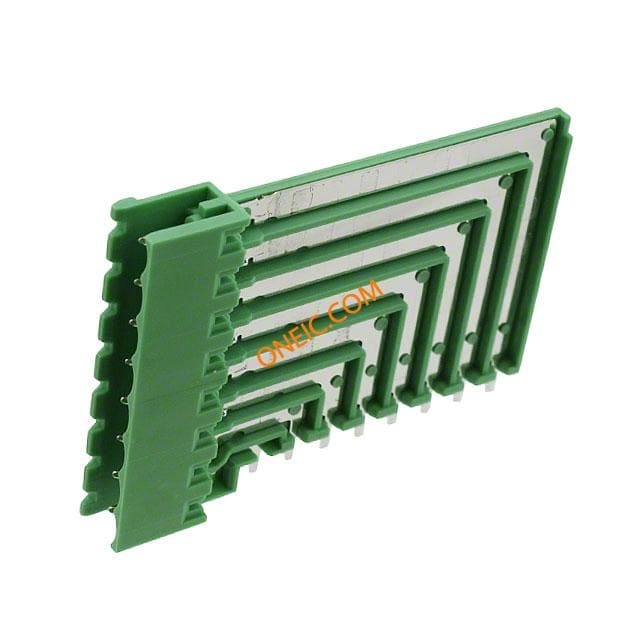

1850495

1850495

Phoenix Contact

Pluggable Terminal Blocks MSTBO 2 5/ 8-GL-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBO 2,5/ 8-GL-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;COMBICON

¥20.7400
详情

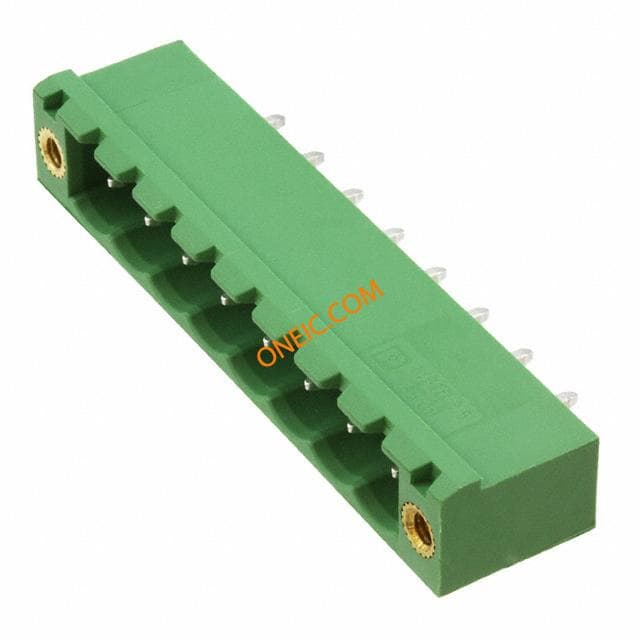

1808528

1808528

Phoenix Contact

Pluggable Terminal Blocks MSTBV 2 5/8-GEH-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 8POS VERT 5.08MM Header for PCB plug connector MSTBV 2,5/ 8-GEH-5,08 MSTBV25/8-GEH-508

¥16.6600
详情

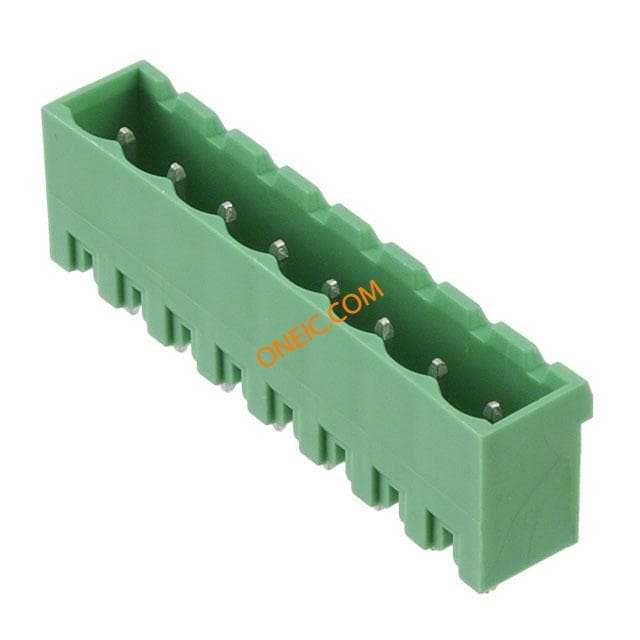

1859577
