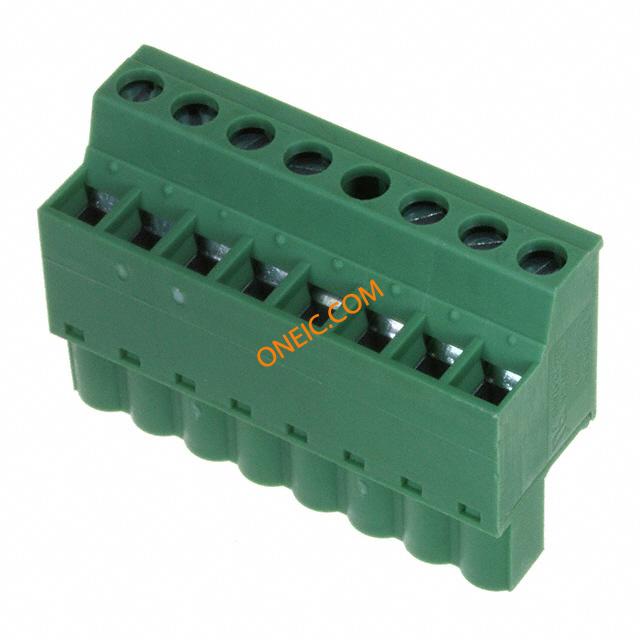

点击放大查看
1777345
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | プラグ着脱可能ターミナルブロック FRONT-MSTB 2 5/ 8-ST Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 250V Pluggable Terminal Blocks FRONT-MSTB 2 5/ 8-ST Conn Terminal Blocks F 8 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/8-ST-508 |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 零件号别名 | FRONT-MSTB2,5/8-ST-5,08 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12A |
| 最小输入电压 | 320V | 最小供电电压 | 250V |
机械参数
| 颜色 | Green | 深度 | 27.5 mm |
| 间距 | 0.200" (5.08mm) | 高度 | 15 mm |
| 重量 | 4.726711 oz | 材料（通用） | Nylon |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 安装类型 | Cable Mount |
| 接触镀层 | Tin | 安装样式 | Cable |
| 排数 | 1 | 插头进线方向 | 180° |
| 壳体材料 | Polyamide | 总长度 | 40.64 mm |
| 端接样式 | Screw | 触点数 | 8 |
| 位数 | 8 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | 每排/每行位置数 | 8 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MSTB | 产品特性 | Retention Latches (Non-Wire Side) |
| 行业别名 | FRONT-MSTB 2, 5/ 8-ST-5, 08 | 层数 | 1 |
| 每层位数 | 8 | ||
