1764235

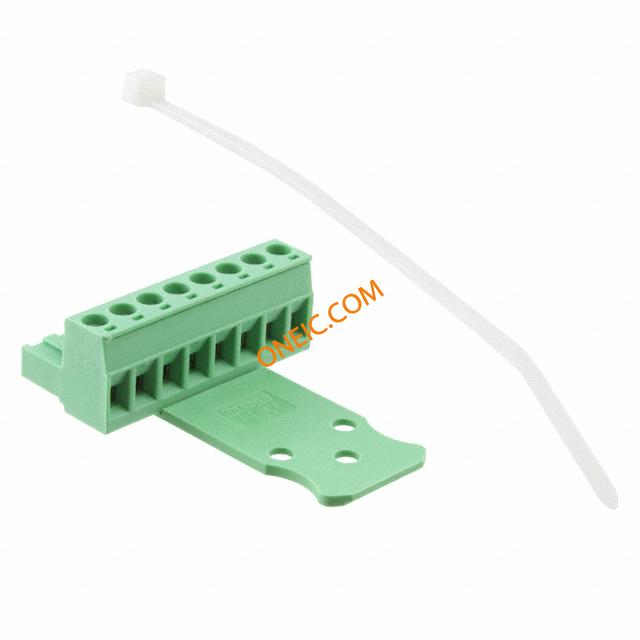

点击放大查看

1764235

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks MSTB 2 5/ 8-STZ-5 08 Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/ 8-STZ-5,08 MSTB25/8-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 8 路 母 绿色 插头, 螺钉端接
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Plugs交货时间12 Days
商标名COMBICON Control子类别Connector Terminal Blocks
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant

电气参数

电流10A电压300V
额定电压250 V最大额定电流12 A
最小输入电压320V

机械参数

颜色Green深度52.2
间距0.200" (5.08mm)重量4.550341 oz
材料（通用）聚酰胺，镀锡包装方式Bulk
导线线规12-30 AWG端接方式Screw
安装类型Cable Mount连接器类型母座
接触镀层Tin排数1
插头进线方向180°壳体材料Polyamide
总长度40.64端接排数螺钉
端接样式Screw触点数8
位数8接线端子类型Plug, Female Sockets
线规或范围 - AWG24-12

产品信息

类型Terminal Block连接器性别F
系列MSTB产品特性Retention Latches (Non-Wire Side), Strain Relief
行业别名MSTB 2, 5/ 8-STZ-5, 08层数1
每层位数8
