点击放大查看

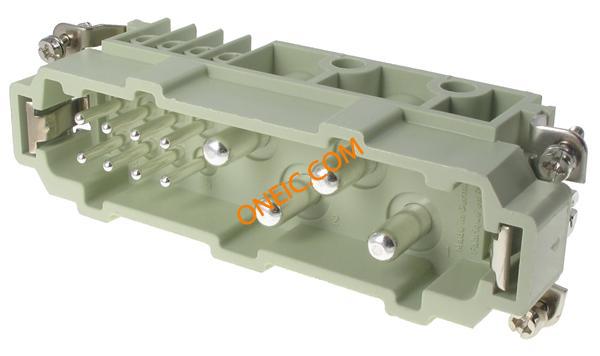

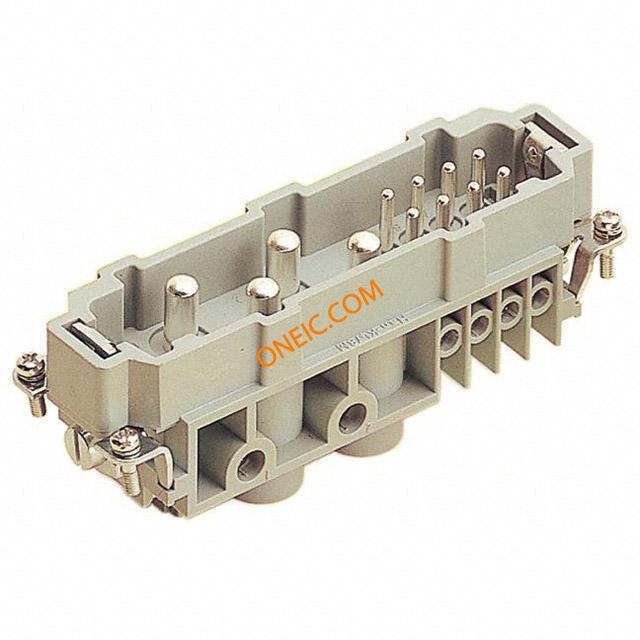

09380122601

制造商	HARTING Technology Group
描述	HAN K 4/8 POS. M INSERT SCREW Heavy Duty Power Connectors HAN K 4+8P M SCREW SCREW TERMINATION Han-Com(R) K 4/8P+E male screw insert HanK4/8Pos.MInsertScrew Connector: HAN; male; Han Com; PIN:12(4+8); size 24B; Inom 1:80A Han K Male Insert: Han K 4/8 Position M Insert Screw Harting Han K 系列 2行 13针插头电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	012 09 09-38-012-2601 2601 38	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

材料阻燃等级

UL94 HB

电气参数

额定电压

600V

最大额定电流

80A

机械参数

尺寸	24B	颜色	Gray
重量	0.15 kg	包装方式	Bulk
方向	直	安装类型	screw terminal
连接器类型	Insert	接触镀层	Silver
排数	2	封装形式	size 24B
插入力	Male	触头材料	Copper Alloy
壳体材料	Polyamide (PA), Nylon	尺寸/外形	24B
端接样式	Screw	触点数	13
位数	4+8+Ground	宽度/横截面	0.5...2.5mm2
线规或范围 - AWG	16-6/20-14

产品信息

类型	CONNECTORS	连接器性别	Male
系列	Han Com	CAD图纸	3D CAD Model
产品子类型	Housings	适配器系列	Han Com
单元数量	1

环境参数

工作温度

-40°C ~ 125°C

相关型号

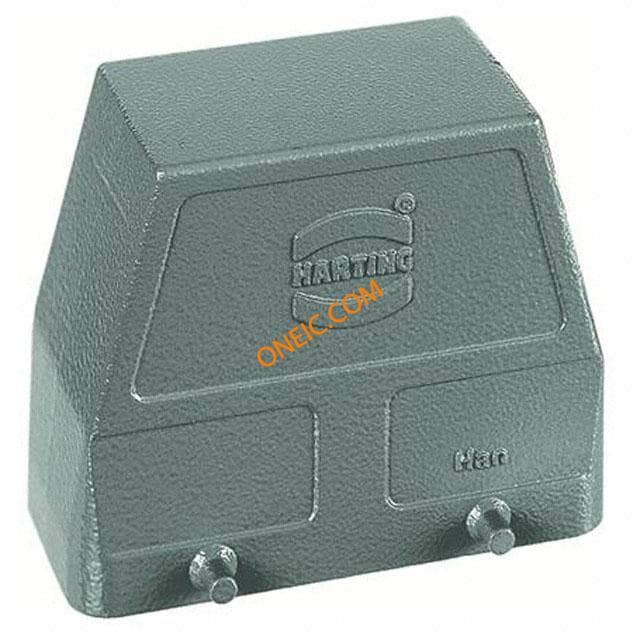

09300240521
