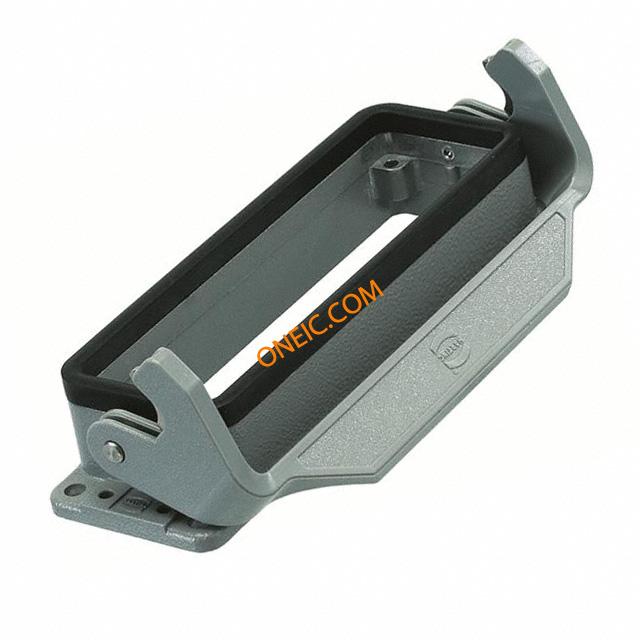

09300240307

制造商	HARTING Technology Group
描述	HAN B BASE PANEL 1 LEVER Heavy Duty Power Connectors HAN 24B BULKHEAD MNT 1 LEVER METAL Low panel mount housing w/1 lever,24B Housing;Metal;SingleLever;140mmLx65.7mmWx28.5mmH;HanComSeries Enclosure: for Han connectors; Han; flange (4 holes), on panel Han B Housings: Han B Base Panel 1 Lever Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 0307 09 09-30-024-0307 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	24B	重量	0.13 kg
包装方式	Bulk	外壳颜色	Gray
安装类型	flange (4 holes), on panel	连接器类型	Base - Panel Mount
外壳涂层	Powder Coated	安装样式	Vertical
封装形式	size 24B	锁定特性	with lock
壳体材料	Aluminum, Die Cast	包装数量	1
尺寸/外形	5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm)	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	1	类型	CONNECTORS
样式	Bottom Entry	系列	Han EEE
CAD图纸	3D CAD Model	产品子类型	Housings
锁定位置	Side Clip on Base Bottom	适配器系列	Han
单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
